Servicing the E-46A with furniture
Servicing the E-46A with furniture
This chapter describes how to remove the E-46A from the Fiery NX Station furniture to access internal components
for service.
For the assembly instruction on the Fiery NX Station, see the documentation provided with the Fiery NX Station kit.
Procedures
If the E-46A is installed in the optional furniture, you need to remove it from the furniture before performing most
service procedures.

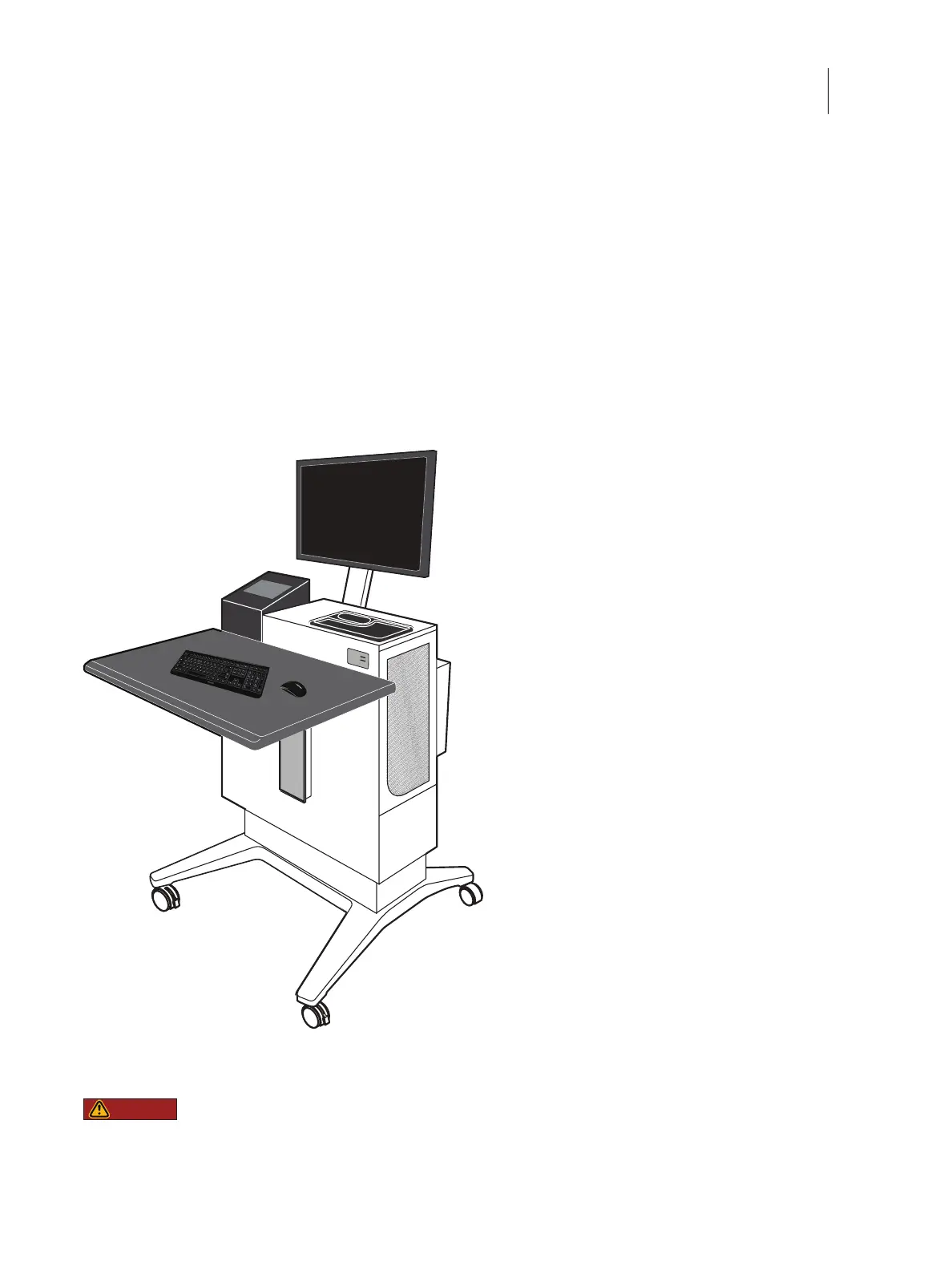

Figure 45: E-46A installed on the furniture
To remove the E-46A from the furniture
1 Make sure the E-46A is powered off and all the cables are removed from the back of the E-46A.
DANGER
To avoid injury, do not lift the E-46A without assistance.
