INTERLOCK (Intermotive)
Powered operation of your lift is
regulated by safety interlocks. These
interlocks mandate the following
conditions be met for the lift to
operate:
1. Transmission is in PARK (P).
2. Apply parking brake.
3. Open entry door.
These conditions are indicated to the
driver on an indicator panel located
near the gauge cluster. The most
common version is shown in the image.
The park, parking brake, and lift door
open indicators will glow red when
each of these conditions is proper. The
“shift lock” indicator will glow red to
indicate the shift lever has been locked
in the park position. With all four of
those indicators glowing red, the lift
can receive power.
RADIO
If equipped, the radio comes in several
OEM and optional configurations
based on either the chassis or options
selected for this bus.
GAUGES
If equipped, the control panel
may include gauges to inform the
driver of the many system which
require monitoring. Common gauges
include hour-meter, voltmeter and
Temperature Gauge.
CLIMATE CONTROL
Cab area heating and cooling controls
are located on the dashboard, within
easy reach of the driver. Operational
and maintenance information on your
particular system can be found in the
chassis owner’s manual.
If your bus is equipped with Passenger
Area Heating and Cooling system,
refer to manufacturer for detailed
information on operation and
maintenance.
HOURS
0
0
0
6
6
10
12
14
16
120
200
260
300
150
120
90
C
F
5
VDO
VDO
VDO

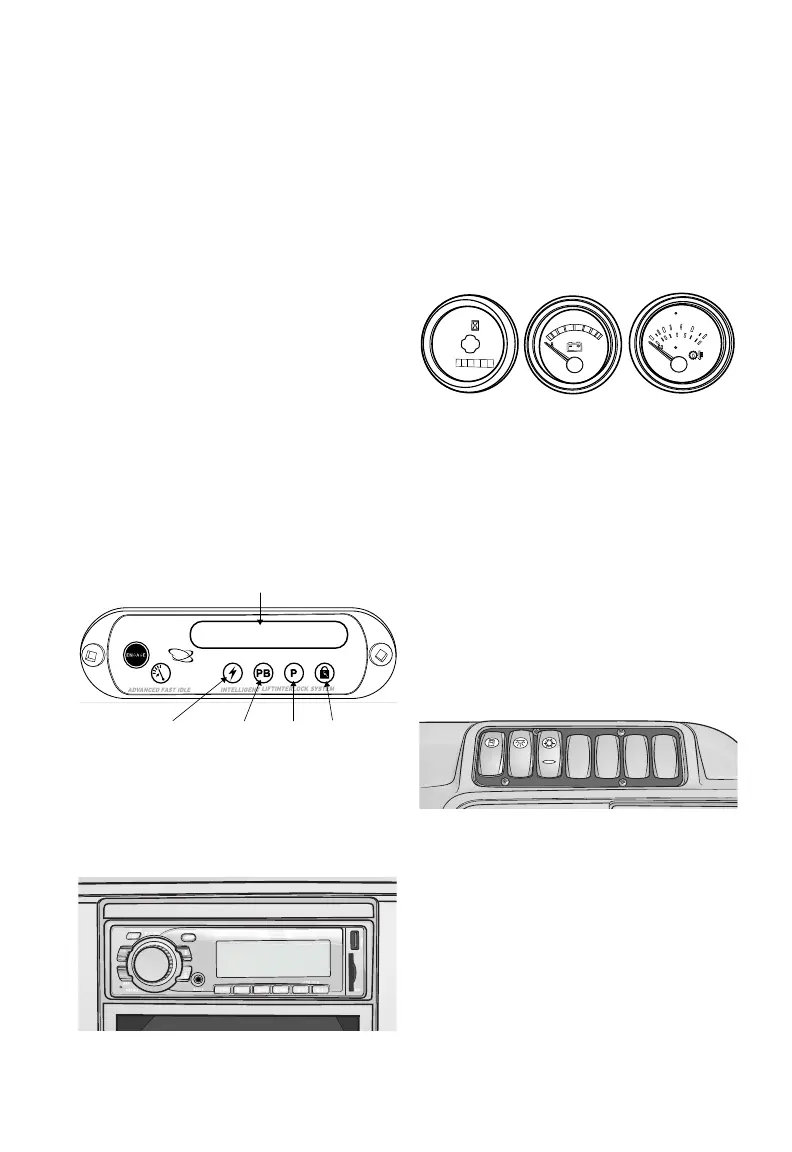

Illustration: Common Gauges
03 DRIVER’S AREA
ADVANCED FAST IDLE
INTELLIGENT LIFTINTERLOCK SYSTEM
INTERMOTIVE
LIFT POWER PARKING BREAK PARK SHIFT LOCK
LIFT DOOR/ AUX DOOR
DOOR AJAR
Illustration: Intermotive Interlock
SCAN
BAND
Illustration: Radio
Illustration: Driver’s Area - Control Console
