REPLACING COURTESY
LIGHTS
1. Remove the two screws from the lens
and remove the lens fixture.
2. Gently pull the wire connector
through the trim piece hole, then
disconnect the fixture from wiring
harness. Be careful not to let the
connector pull back through the trim
piece hole.
3. Connect the new fixture and insert
the connector and wire back through
the trim piece hole.
4. Now position the fixture’s holes to
line up with existing screw holes and
replace the screws. Do not over-tighten
the screws in the trim piece.
REPLACING SPEAKERS
1. Remove the screws from the section
of trim the speaker is attached to.
2. Gently pull the trim out of its
channeling.
3. Disconnect the old speaker using
care not to damage the trim piece.
4. Now reconnect the new speaker to
the wire harness.
5. Reinsert the trim piece into the
channeling, then replace the screws in
the trim piece. Do not over-tighten the
screws in the trim piece.

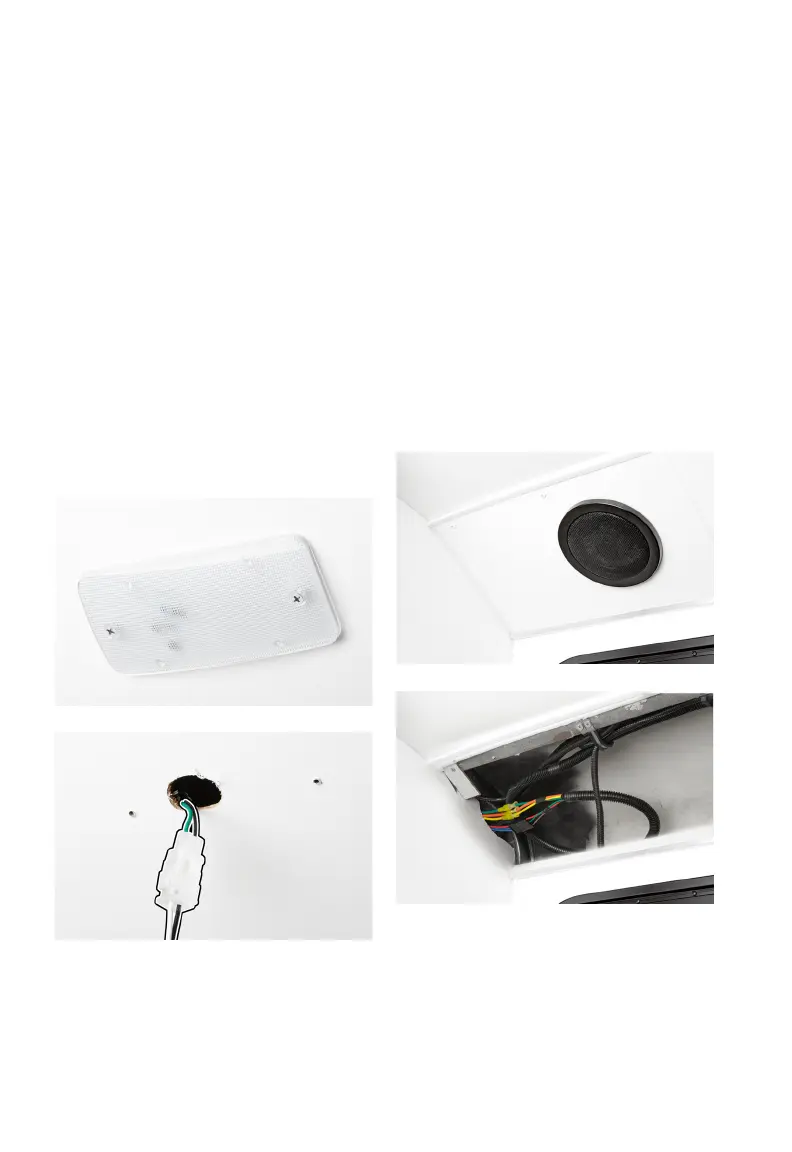

Image: Detail Of Courtesy Light Removed
Image: Detail Of Courtesy Light
Image: Wire Harness - Trim Piece Removed
Image: Speaker And Trim Piece
