ElDorado Advantage - Setup Reflector Kit

19
SETTING UP WARNING KIT
ON TWO (2) LANE HIGHWAY:
1. Place one (1) Reflective Triangle on
traffic side of road 4 paces (10 feet),
from the stopped commercial motor
vehicle in the direction of approaching
traffic.
2. Then place another Reflective
Triangle 100 ft. from rear of stopped
vehicle (approx. 40 paces), in the
center of the traffic lane or shoulder
occupied by the stopped vehicle.
3. Place one (1) Reflective Triangle
100ft. in front of disabled vehicle
(approx. 40 paces), from the stopped
commercial vehicle in the center of
the traffic lane or shoulder occupied
by stopped commercial vehicle in
the direction away from approaching
traffic.
ON A DIVIDED HIGHWAY:
1. Place one (1) Reflective Triangle on
traffic side of road 4 paces (10 feet),
from the stopped commercial motor
vehicle in the direction of approaching
traffic.
2. Place one (1) Reflective Triangle
100 ft. from rear of stopped vehicle
(approx. 40 paces), in the center of the
traffic lane or shoulder occupied by
the stopped vehicle in the direction of
approaching traffic.
3. Then place another Reflective
Triangle 200 ft. from rear of stopped
vehicle (approx. 80 paces), in the
center of the traffic lane or shoulder
occupied by the stopped vehicle in the
direction of approaching traffic.
 Ref. 49 CFR 392.22 - Emergency signals;
stopped commercial motor vehicles.
2-LANE HIGHWAY
PLACE REFLECTIVE TRIANGLES:
10’ & 100’ TO REAR AND 100’ TO FRONT
DIVIDED HIGHWAY / ONE-WAY ROAD
PLACE REFLECTIVE TRIANGLES:
10’, 100’ & 200’ TO REAR OF STOPPED VEHICLE
100’
(40 PACES)
100’
(40 PACES)
10’
10’
200’
(80 PACES)
100’
(40 PACES)

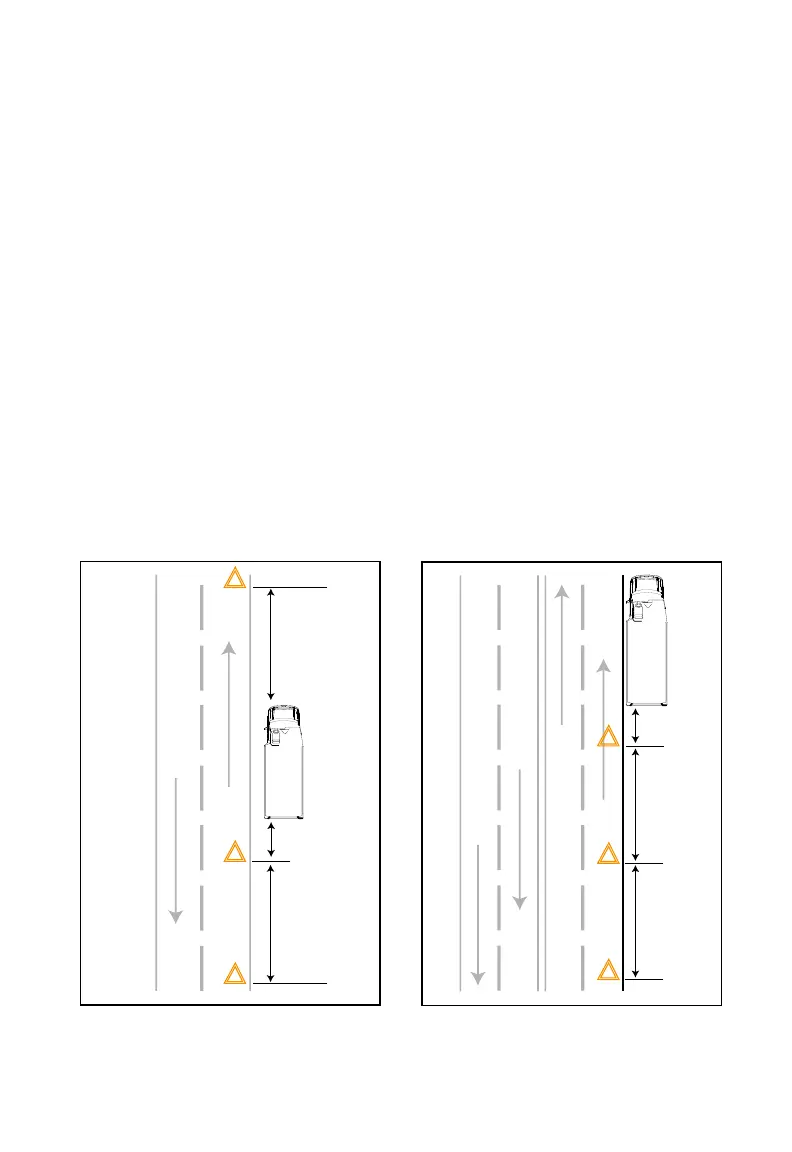

Illustration: Emergency Triangle Placement
Image Not To Scale
2-LANE HIGHWAY
PLACE REFLECTIVE TRIANGLES:
10’ & 100’ TO REAR AND 100’ TO FRONT
DIVIDED HIGHWAY / ONE-WAY ROAD
PLACE REFLECTIVE TRIANGLES:
10’, 100’ & 200’ TO REAR OF STOPPED VEHICLE
100’
(40 PACES)
100’
(40 PACES)
10’
10’
200’
(80 PACES)
100’
(40 PACES)
Illustration: Emergency Triangle Placement
Image Not To Scale
03 DRIVER’S AREA
