54
08 ELECTRICAL
BLUNT-CUT WIRES
Ford supplies blunt-cut wires for
customer access located under the
hood. We connect a pass-thru wire
which penetrates the fire wall to the
connection point 9C24-14A411-G
located below the steering column.
FRONT OF
VEHICLE
TO BLUNT CUT

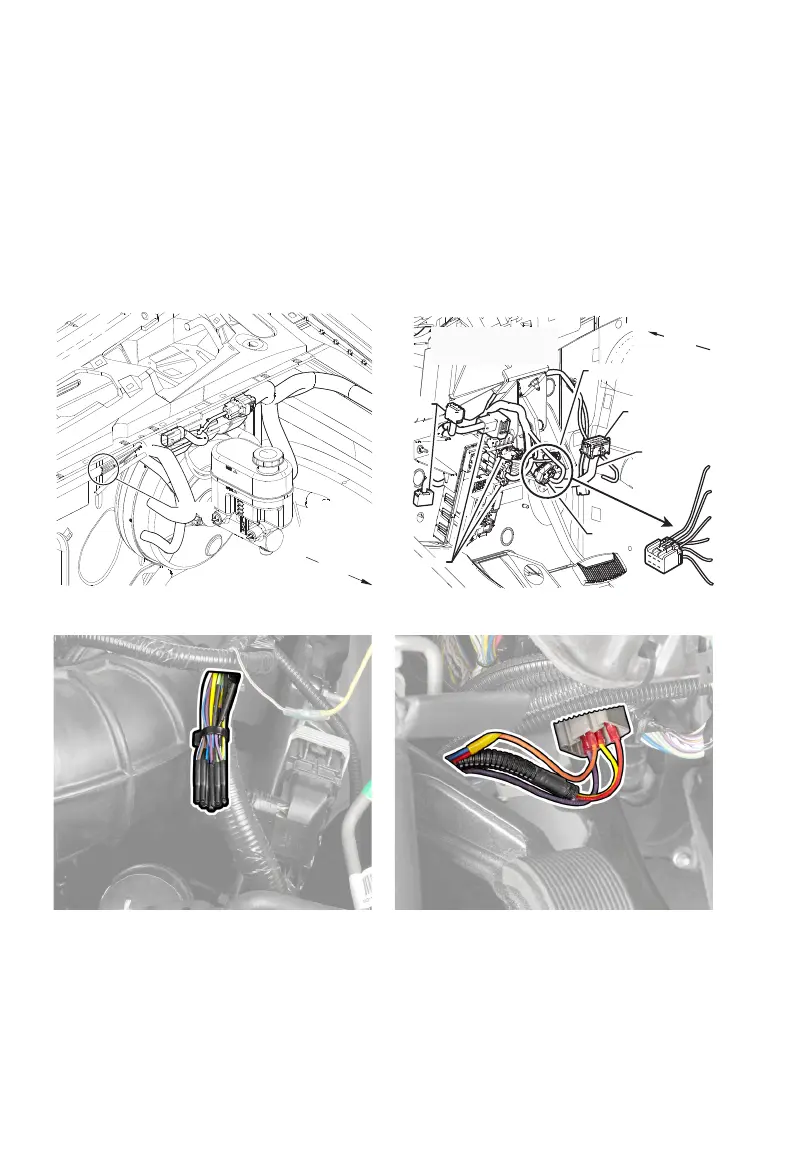

Illustration: Location Of Blunt-Cut Wires
TO 14401
WIR ASY
TO SPDJB
TO STP LP SW
FRONT OF
VEHICLE
TO 14401
WIR ASY
ENG CONTR SNS
9C24-14A411-G
GREY CONNECTOR & PIGTAIL ASY
I/P DRIVER SIDE
Illustration: Pass-Thru Wires Under Steering
Column
Image: Location Of Blunt-Cut Wires
Image: Detail Of Wires Under Steering Column
To Next Page
