56
REAR CLEARANCE &
IDENTIFICATION LIGHTS
One red clearance light is located on
either side of the top rear corners of
the bus and three identification lights
are located between the clearance
lights. These lights are activated when
the headlight switch is turned on.
Standard rear clearance lights and rear
identification lights are circular shaped,
red colored lenses that enclose the
light bulb. Rear clearance lights (left &
right side) and rear identification lights
(center) can be disconnected for quick
replacement.
u
Clearance lights should be checked
daily for proper operation.
REPLACING CLEARANCE
LIGHTS
1. Push out on center of the grommet
to push the red lens housing out.
2. Disconnect the lens from the wiring
connector and discard the burned-out
lamp.
3. Reconnect the new lamp by firmly
pressing the lamp and connector
together.
4. Reposition the lamp between the
lens holders and gently press the lamp
to lock back into position.
SIDE MARKER LIGHTS
The purpose of the side marker lamps
is to enable a driver to see another
vehicle that is approaching at an angle
at night and to avoid a collision.
Standard on any unit 30 feet or longer
has a side marker light and a side turn
light, (to meet California state law).
u
Check side markers daily. Clean
reflectors to ensure function and
visibility.

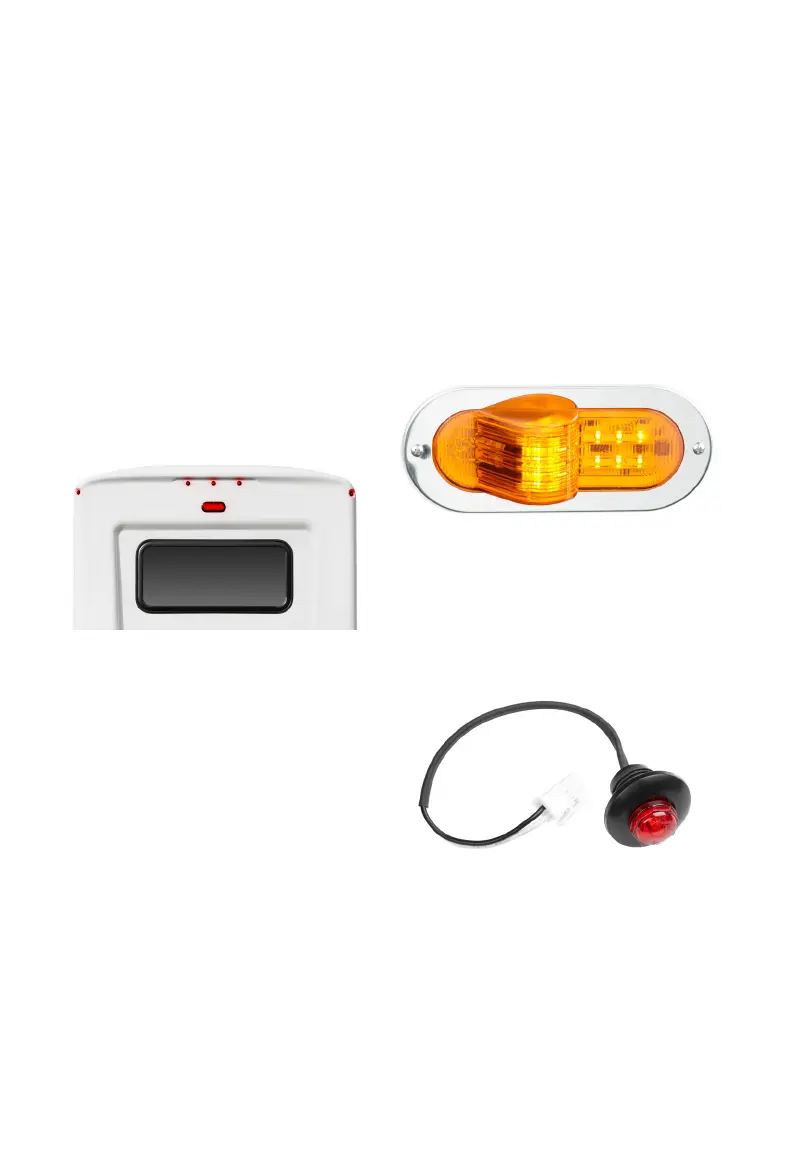

Image: Rear Clearance Lights
08 ELECTRICAL
Image: Side Marker Light
Image: Clearance Light Fixture
