6
VEHICLE SAFETY
STANDARD CERTIFICATION
LABELS
The Vehicle Certification Labels are
attached to either the hinge pillar,
end of driver door or the door latch
post of the door edge that meets the
door latch post next to the drivers
seating position. The labels contain
the name of the manufacturer, the
month and year of manufacture,
the certification statement, and the
Vehicle Identification Number (VIN).
The labels also contain Gross Vehicle
Weight Rating (GVWR), Gross Axle
Weight Rating (GAWR), and information
codes for additional vehicle data, (U.S.).
VEHICLE EMISSIONS
INFORMATION
Emissions information appears on
the VECI decal which is located on or
near the engine. This decal identifies
engine displacement and also provides
certain tune-up specifications.
01 INTRODUCTION

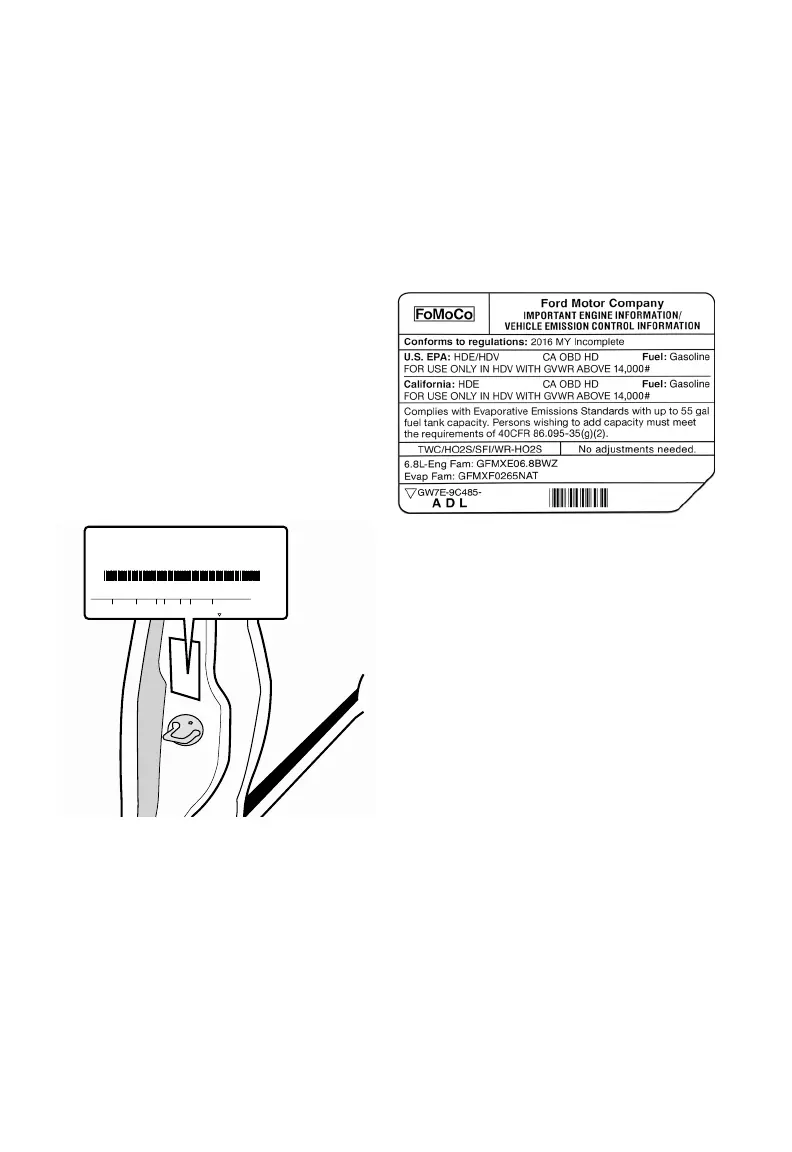

Illustration: Vehicle Emissions Label
(Ford Motor Company Decal Shown)
INCOMPLETE VEHICLE MFD. BY FORD MOTOR COMPANY
WITH TIRES
GVWR:
REAR
WITH
16x 6. 0K
AT 550 k Pa / 80 PSI COLD
TIRES
RIMS
DUAL
T
LT225 / 75R 16E 115/ 112R
GAWR:
4355 KG ( 9600 LB )
6577 KG ( 14500 LB )
RIMS
AT
VIN:
1FDFE4FS4HDC33553
LT225/75R16E 115/112R
16x6.0K
520 kPa / 75 PSI COLD
DATE:
FRONT
2268
KG ( 5000 LB)
12/16
GAWR
EXT PNT:
Equipped with the Ford
Shuttle Bus Prep Pkg
158
INT TR
XE
MADE IN U.S.A.
WB
F
83
P
XXBB
ULN
5U5A - 3520472 - AA
TP / PS R
RC: 86 DS0:
AXLE TR SPR
YZ
Illustration: Location Of Safety Certification Label
