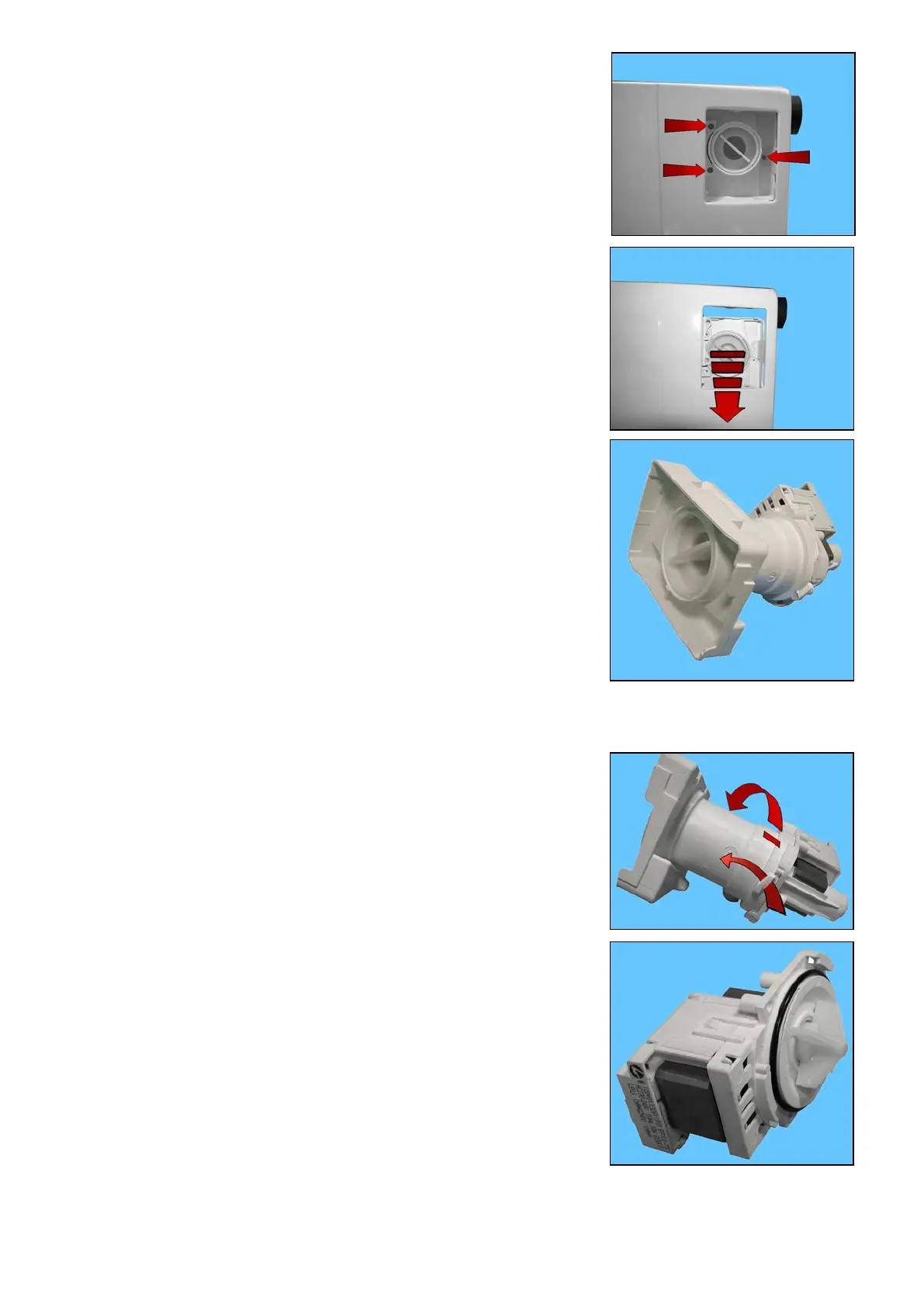

Loosen the three screws that fix it to the front.
Move it downwards.
Remove it towards the inside of the appliance.
Filter unit and drain pump.
23.5.2.1 Drain pump
Remove the filter unit (see relevant paragraph).
In order to remove the pump from the filter unit:
Press the anti-rotation clip.
Rotate the filter body (as shown by the arrows in the figure).
Drain pump.
Technical Support - DMM 119/124 599 75 58-67 Rev.04
