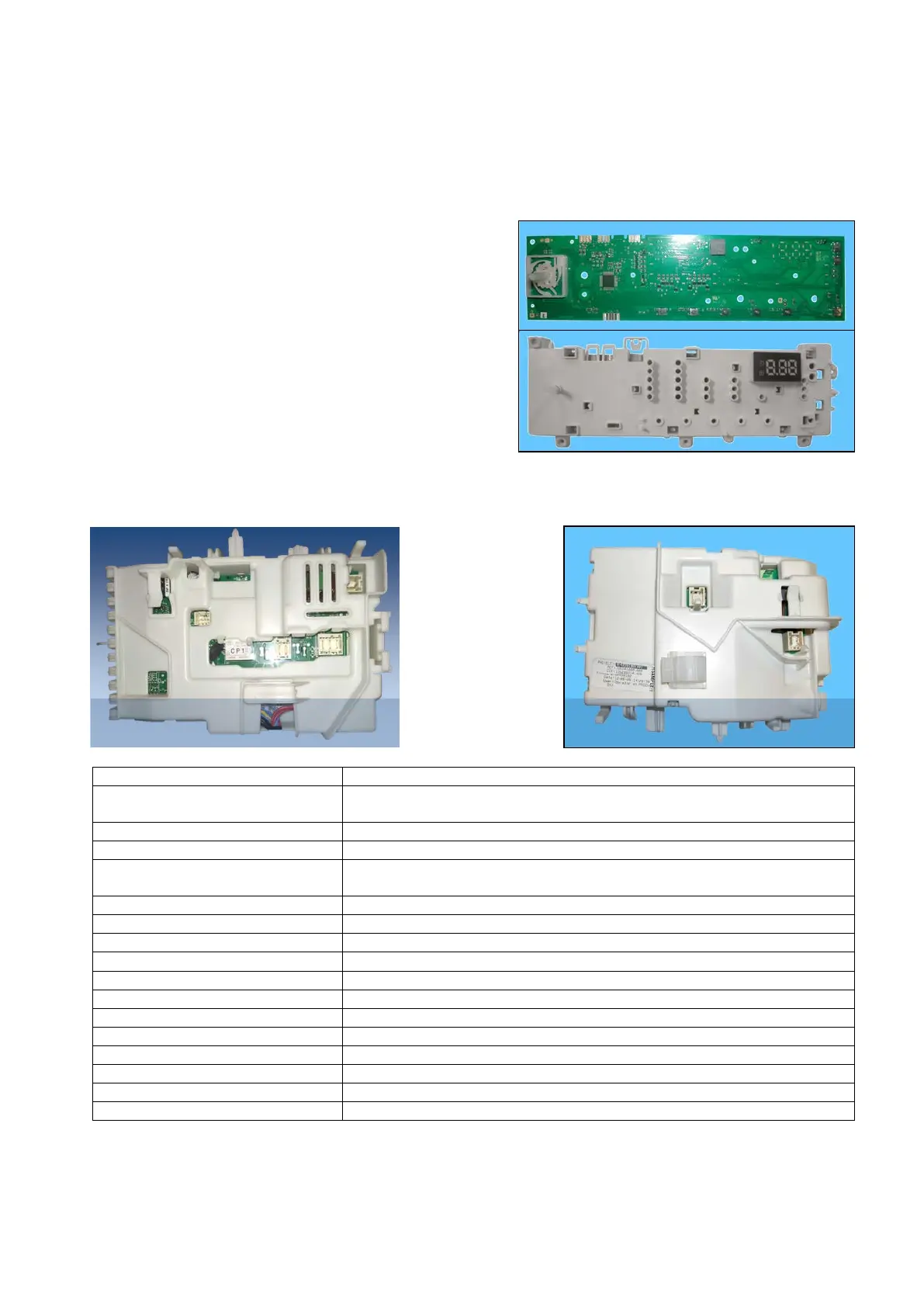

The EWM09311 / EWX13611 electronic control system consists of two circuit boards:
 Control/display board in a plastic casing fitted
to the control panel (the figure illustrates the
individual board and the board assembly
consisting of board, casing and diffuser).
 Main board, positioned in the bottom rear of the appliance. It powers the electrical components and
receives commands from the display board.
Programme selector
 15 positions without main switch (incorporated in the circuit board)
No. buttons
 maximum 7 (3 options + 1 start/pause + 1 delayed start + 1 Spin
+ 1 Temperature)
No. LEDs
 maximum 14 (13 green LEDs + 1 red LED)+ 1 display
Serial port
 DAAS-EAP communication protocol up to 230400 baud
Power supply voltage

220/240V
 50/60 Hz (configurable)
Washing type
 Traditional
Rinsing system
 Traditional
Motor
 Collector, with tachometric generator (Universal)
spin speed
 600 ÷ 1,400 rpm
Anti-unbalancing system
 AGS
Water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 2 compartments: wash, conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock
 Traditional (with PTC)
Heating element heat output
 1750W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
Main board EWM09311 Main board EWX13611
