23.4.7 EWX14931 Main board

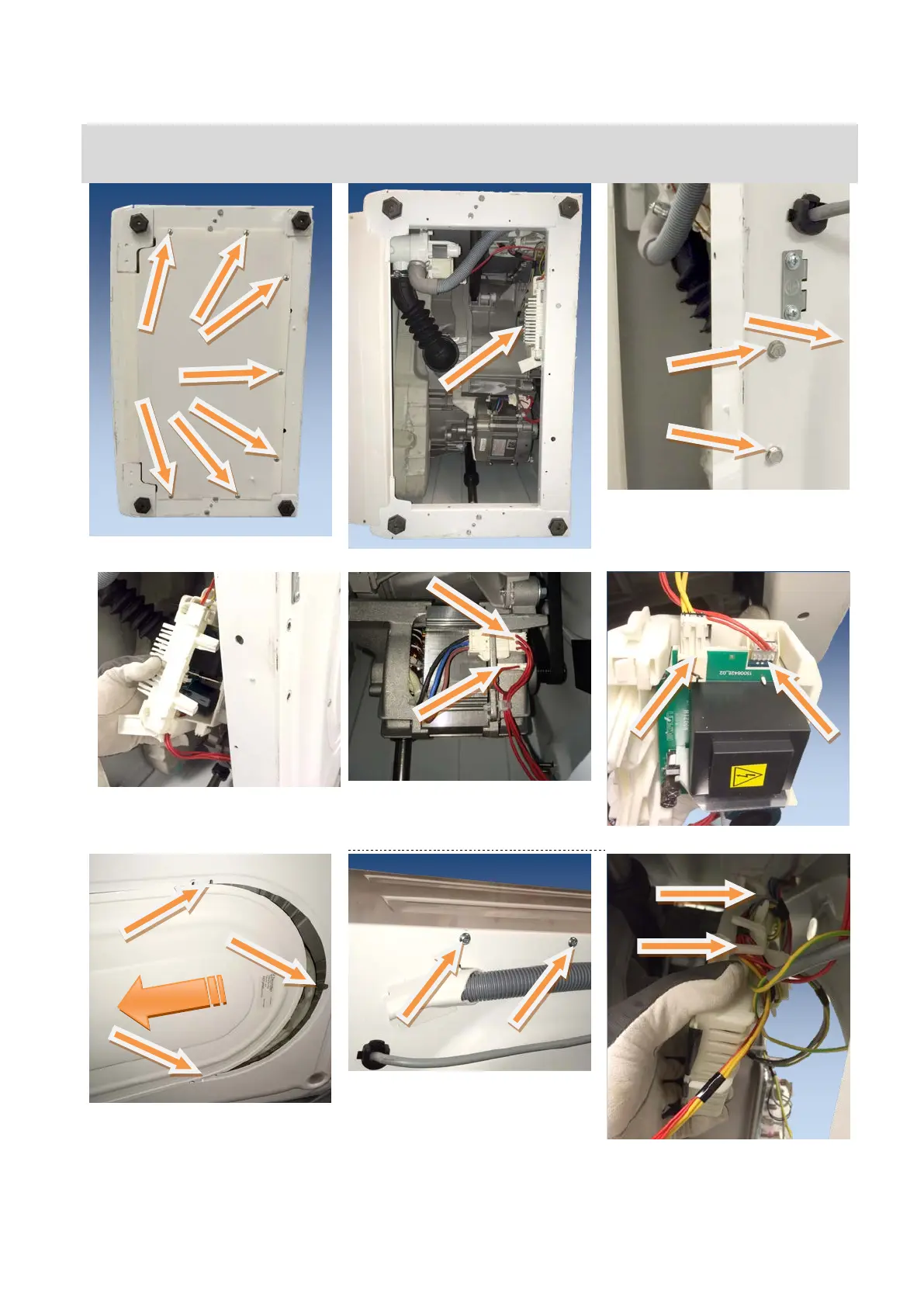

To service the main board, use the antistatic kit a code 4055063-95/4.
Lay the appliance onto its left side (the side where the detergent dispenser is)
Unfasten the screws fixing the bottom cover to the base (indicated by the arrows).
Unfasten screws securing it to the
Remove UIMC
Unfasten screws securing UIMC
board to the cabinet.
Carefully take out the UIMC from
the appliance’s cabinet.
Remove the connectors and take
out the UIMC.
See paragraph 23.4.8 Uimc page 117
Unfasten screws securing the back
cover and pull it towards the
bottom of appliance.
Unfasten screws securing the
mainboard to the cabinet.
Remove the bundled cables from
the hooks that hold them close to
