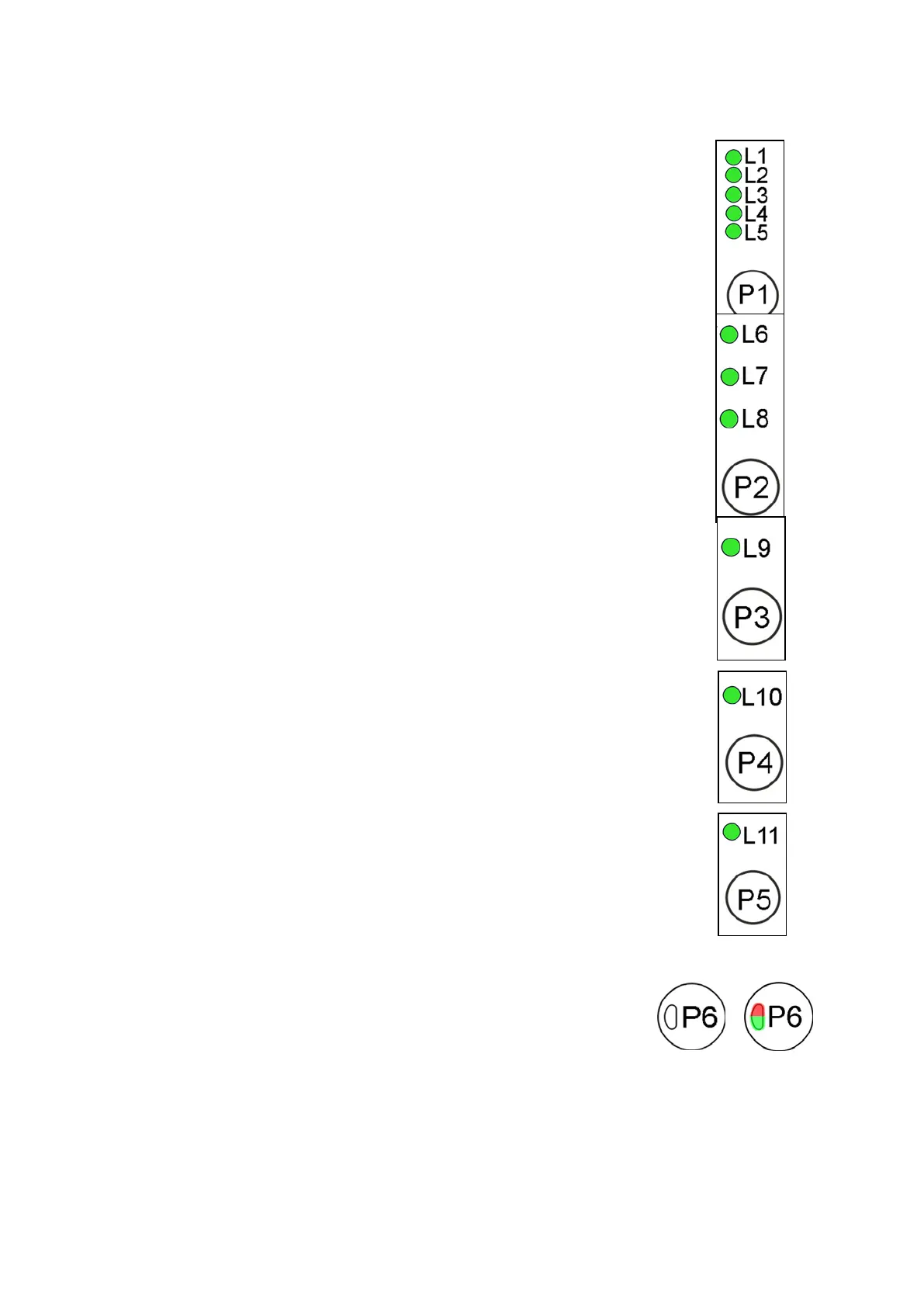

13.3.3 Buttons and LEDs
The function of each button is defined by the configuration of the appliance.
• Button no. 1: TEMPERATURE CONTROL
this button is configurable and is related to LEDs (L1÷L5).
Press it in sequence to choose the washing temperature among the values
listed below: 90°C, 60°C, 40°C, 30°C, 20°C and Cold cycle.
The initial temperature set for each programme is configurable.
The temperature of 50°C is not envisaged.
• Button no. 2: SPIN SPEED SETTING
this button is configurable and is related to LEDs (L6÷L8).
By pressing it in sequence it is possible to select the desired spin speed
or exclude it with the rinse hold option.
• Button no. 3: this button is configurable and is related to LED (L9). Depending
on the configuration of the appliance, it can perform the function of:
super quick, easy-iron, super rinse, rinse hold.
• Button no. 4: this button is configurable and is related to LED (L10);
depending on the configuration of the appliance, it can perform the function of:
super quick, easy-iron, super rinse, rinse hold.
• Button no. 5: this button is configurable and is related to LED (L11);
depending on the configuration of the appliance, it can perform the function of:
super quick, easy-iron, super rinse, rinse hold.
• Button no. 6: this button is configurable and has the function of
START/PAUSE.
Pressing this button starts a washing cycle, or can pause a washing cycle
already under way (there are two LEDs inside:
a green one which flashes when the appliance is in set-up, pause; it
stays on when the cycle is under way and turns off when the cycle has
ended;
a red one that flashes (150 ms off, 150 ms on) in the event of an alarm or incorrect selection, such as:
an incompatible option, an incorrect temperature for the chosen programme or the rotation of the
programme selector dial or the selection of an option while a washing cycle is under way.
Technical Support - DMM 46/124 599 75 58-67 Rev.04
