Electrolux EWX13611 - Z6 Styling; General Characteristics

14 Z6 STYLING
14.1 General characteristics

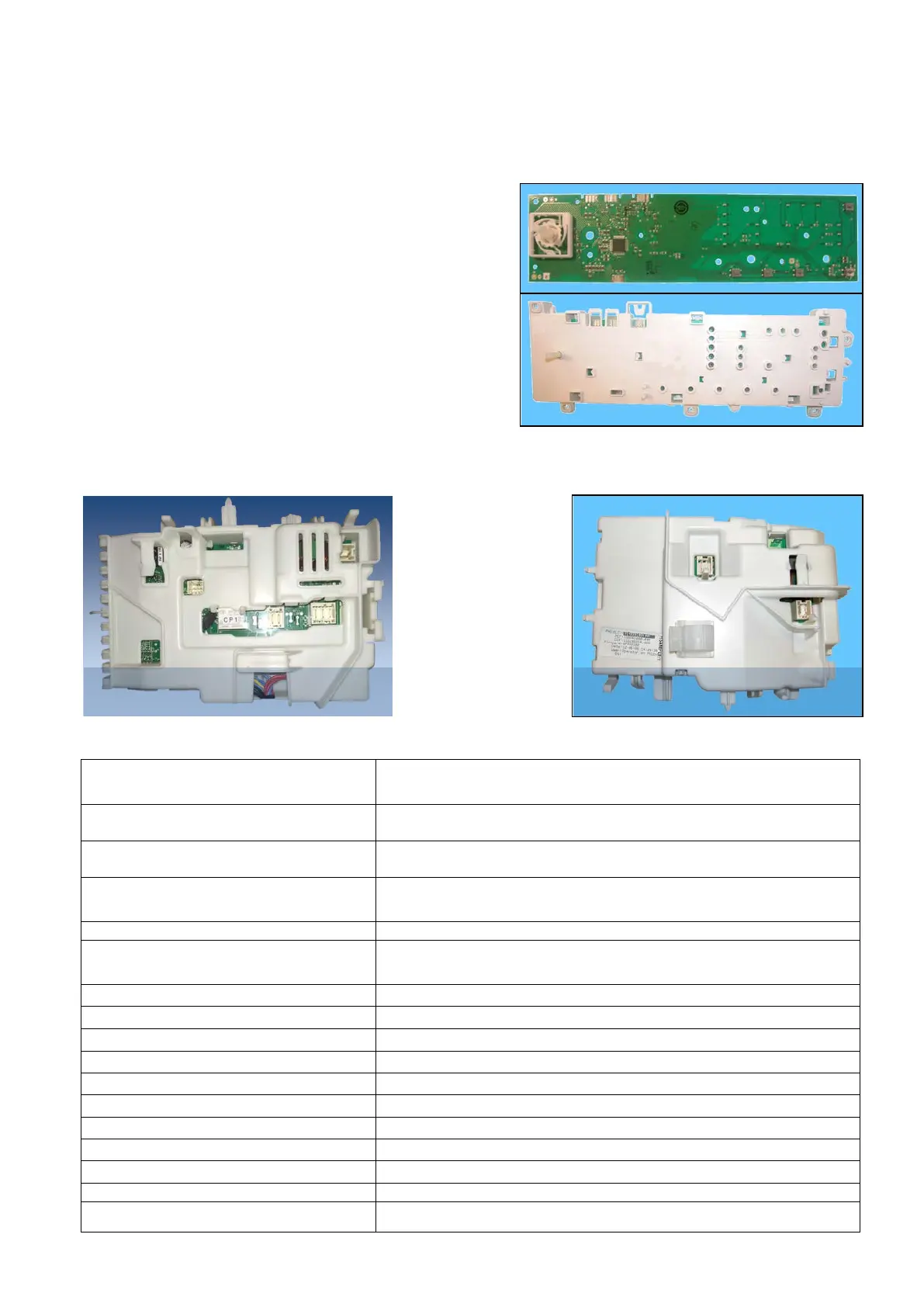

The EWM09311 / EWX13611 electronic control system consists of two circuit boards:
 Control/display board in a plastic casing fitted to
the control panel (the figure illustrates the
individual board and the board assembly
consisting of board, casing and diffuser).
 Main board, located at the rear of the appliance.
It powers the electrical components and receives
commands from the display board.
 Main board, positioned at the rear of the appliance.
It powers the electrical components and receives commands from the display board.
Programme selector
 15 positions without main switch (incorporated in the circuit
board)
Secondary selector
 6 positions, only for version Z 5 (incorporated into the circuit
board)
No. buttons

maximum 5 (1 Spin/Temperature + 2 options + 1 start/pause + 1
delayed start)
No. LEDs
 Z5 Styling maximum 12 (11 green LEDs + 1 red LED).
 Z6 Styling maximum 16 (15 green LEDs + 1 red LED)
Serial port
 DAAS-EAP communications protocol up to 230400 baud
Power supply voltage
 220/240V
 50/60 Hz (configurable)
Washing type

traditional
Rinsing system

traditional
Motor

Collector, with tachometric generator (Universal)
spin speed
 600 ÷1,400 rpm
Anti-unbalancing system

AGS
Water fill

1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser

2 compartments: wash, conditioners
Control of water level in the tub

Electronic/analogue pressure switch
Door safety interlock

Traditional (with PTC)
Heating element heat output
 1750W with thermal fuse incorporated
Temperature check
 NTC probe incorporated in the heating element
Main board EWX13611 Main board EWM09311
Technical Support - DMM 49/124 599 75 58-67 Rev.04
