14.2 Control panels

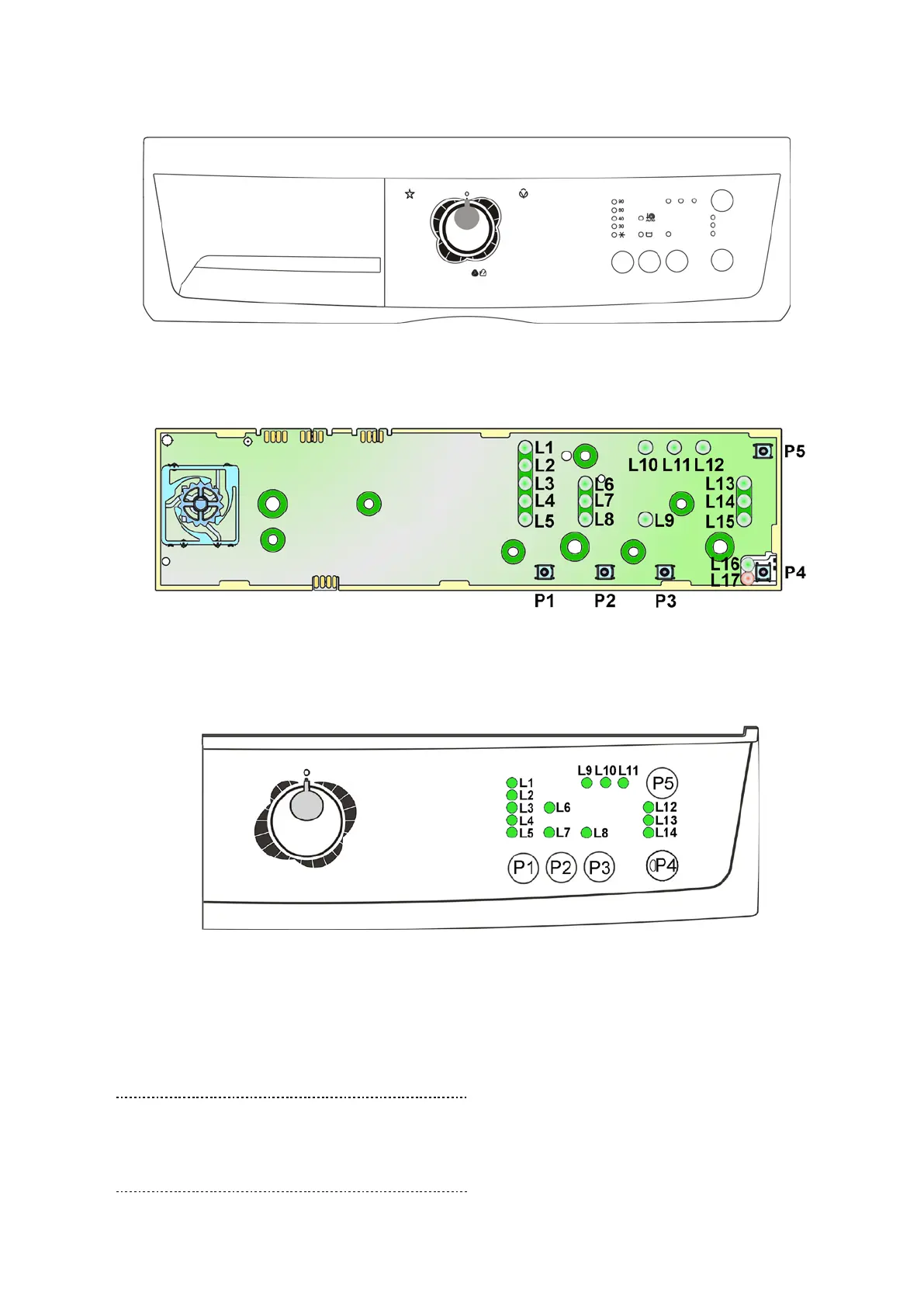

14.2.1 Display board
• Positioning of LEDs and buttons
14.2.2 Control panel configuration
Only one styling will be taken into consideration: the most complete one, since they are identical: both in terms
of functions and button layout.
The wash programmes, the functions of the selector dial (where featured) and the individual buttons vary
according to the model, since these are determined by the configuration of the appliance.
14.2.3 Programme selector (S1)
See sect. 13.3.1 Programme selector (S1) page 45
14.2.4 Programme configuration
See sect. 13.3.2 Programme configuration page 45
Technical Support - DMM 50/124 599 75 58-67 Rev.04
