4.2 Control panels
4.2.1 Styling
Max. 7 touch push buttons
15 position programme selector
24 LEDs
4.2.2 Display board

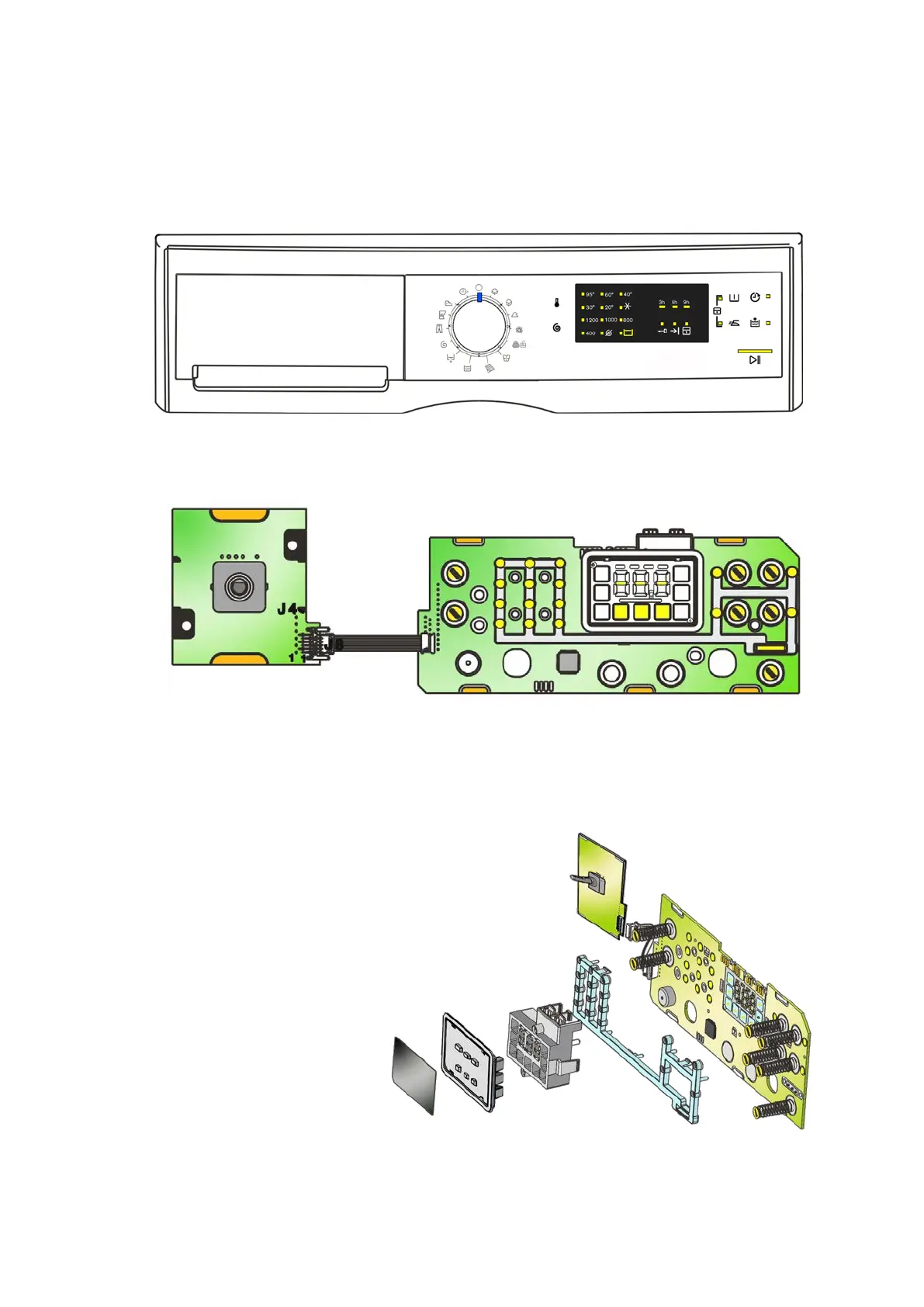

Display board assembly, exploded view
1. Display board
2. Selector card with knob
3. Light divider
4. Digits light diffuser support
5. Digits light diffuser
6. Digital filter
1
2
3
4
5
6
