23 ACCESSIBILITY

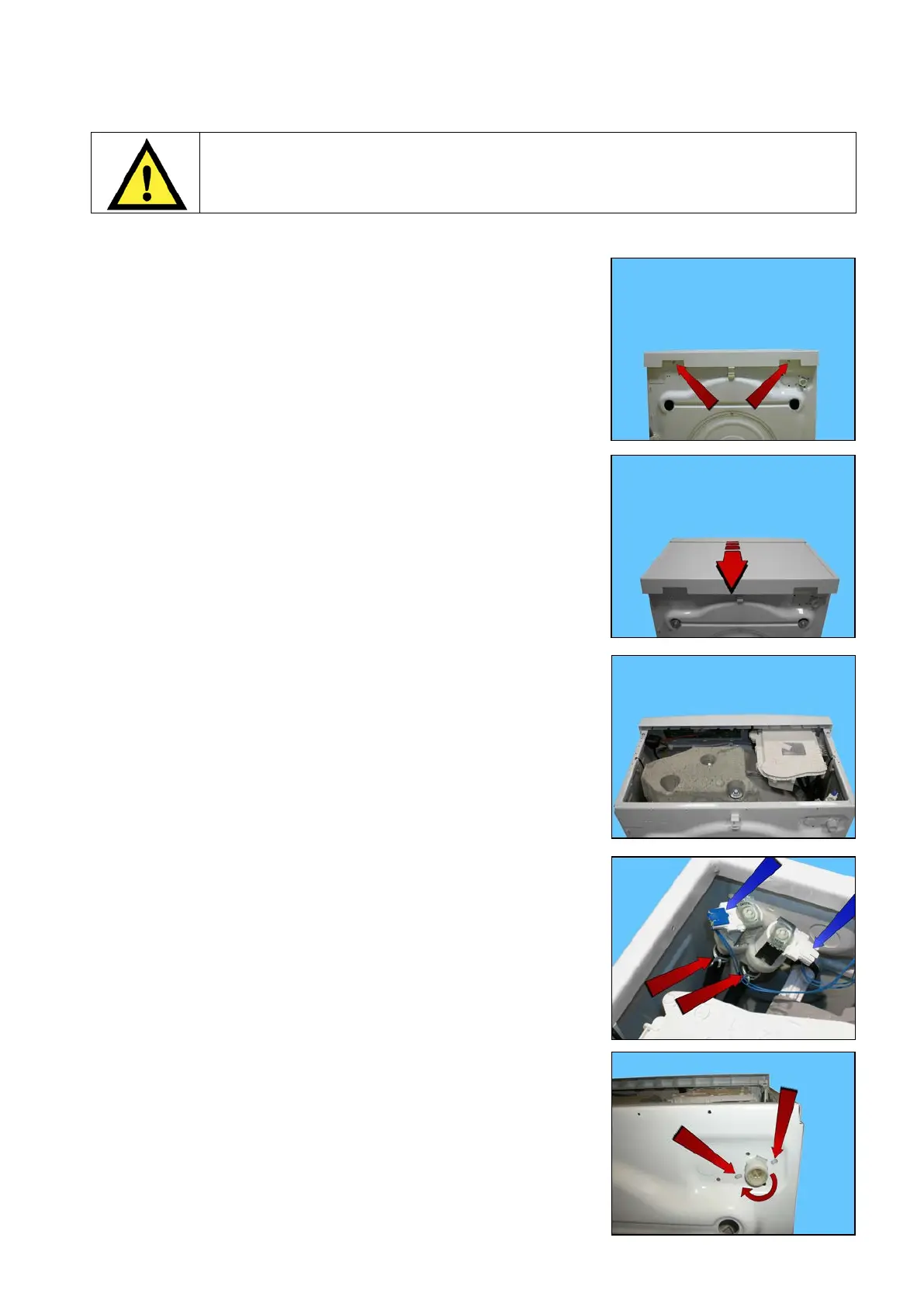

Take care because some of the appliance parts may have sharp edges.
23.1 Worktop
Remove the screws that secure it to the back panel.
Pull it out from the back.
23.2 From the worktop, you can access
1. Solenoid valve
2. Detergent dispenser and conveyor
3. Control panel
4. Display board/light diffuser/buttons/buttons springs assembly
5. Electronic pressure switch
6. Detergent/steam vent fill pipe
7. Top counterweight
23.2.1 Solenoid valve
Remove the worktop (see relevant paragraph).
Detach the connectors indicated by the blue arrows.
Pull out the pipes indicated by the red arrows, which connect
the solenoid valve to the detergent dispenser.
Unscrew the water fill pipe from the solenoid valve.
Push the two retainers indicated by the arrows towards the inside
of the appliance.
At the same time, turn the solenoid valve clockwise to remove it.
