Electrolux EWX13611 - Washing Machine Models and Control Panels; TC5, TC4, TC3 Model Characteristics

3 AESTHETICS TC5 / TC 4 / TC 3
4 TC 5
4.1 General characteristics
The EWM09312 / EWX13611 electronic control system consists of two circuit boards.
In the event of problems with the touch sensors (difficulty selecting/adjusting them), clean and dry the display
and do not wear gloves when setting the chosen programme.

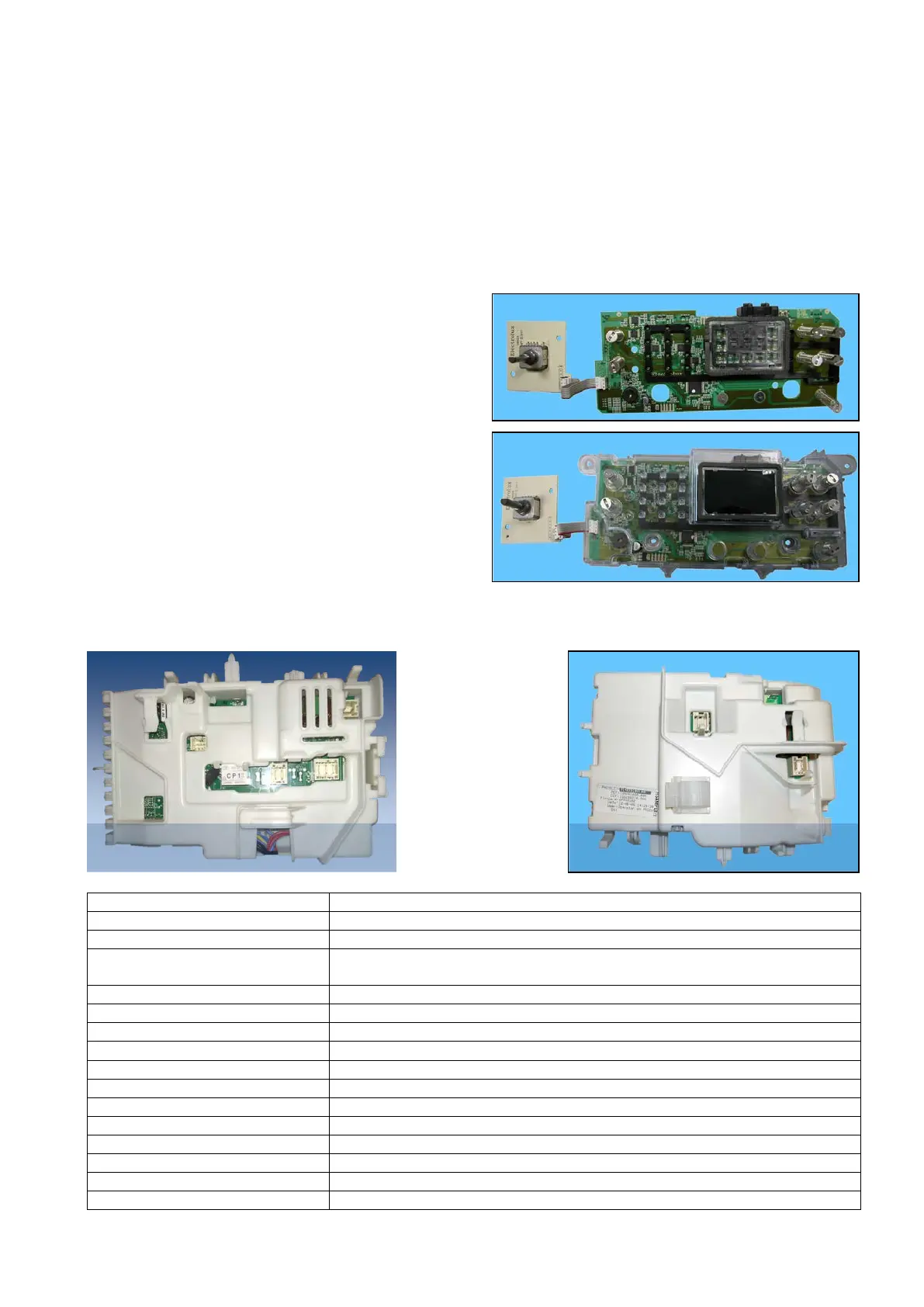

 The control/display circuit board, inserted in a
plastic box, secured to the control panel (the figure
illustrates: the display circuit board with the side
support plate onto which the selector is secured,
connected to one another by a flat cable and the
display circuit board assembly).
 Main board, positioned in the bottom rear of the appliance. It powers the electrical components
and receives commands from the display board.
No. of touch-sensitive keys
 Maximum 7 (6 options + 1 start/pause)
No. LEDs
 Maximum 23 yellows + 1 red
Programme selector
 15 positions (incorporated in the circuit board)
Power supply voltage
 220/240 V
 50/60 Hz (configurable)
Washing type
 Traditional with “Eco-ball”
Rinsing system
 Traditional with “Eco-ball”
Motor
 Collector, with tachometric generator (universal)
spin speed
 800 ÷ 1,600 rpm
Anti-unbalancing system
 AGS
Cold water fill
 1 solenoid valve with 1 inlet – 2 outlets
Detergent dispenser
 2 compartments: pre-wash, wash and conditioners
Control of water level in the tub
 Electronic/analogue pressure switch
Door safety interlock
 Traditional (with PTC)
Heating element heat output
 1,750 W with thermal fuses incorporated
Temperature check
 NTC probe incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
Main board EWM09312 Main board EWX13611
Technical Support - DMM 8/124 599 75 58-67 Rev.04
