Electrolux EWX13611 - Washing Unit; Welded Tub Assembly

20.2 Washing unit
Styling
SUPER-SLIM
39.2 cm/33 l/3.5 Kg
SLIM
43.1 cm/40 l/5 Kg
FULL SIZE
51.2 cm/47 l/6 Kg
FULL SIZE
50.2 cm/50 l/7 Kg
800
rpm
1,000
rpm
800
rpm
1,000
rpm
1,200
rpm
800
rpm
1,000
rpm
1,200
rpm
1,000
rpm
1,200
rpm
1,400
rpm
TC5
X
X
X
X
X
TC4
X
X
X
X
X
X
X
TC3
X
X
X
X
X
This table is approximate.

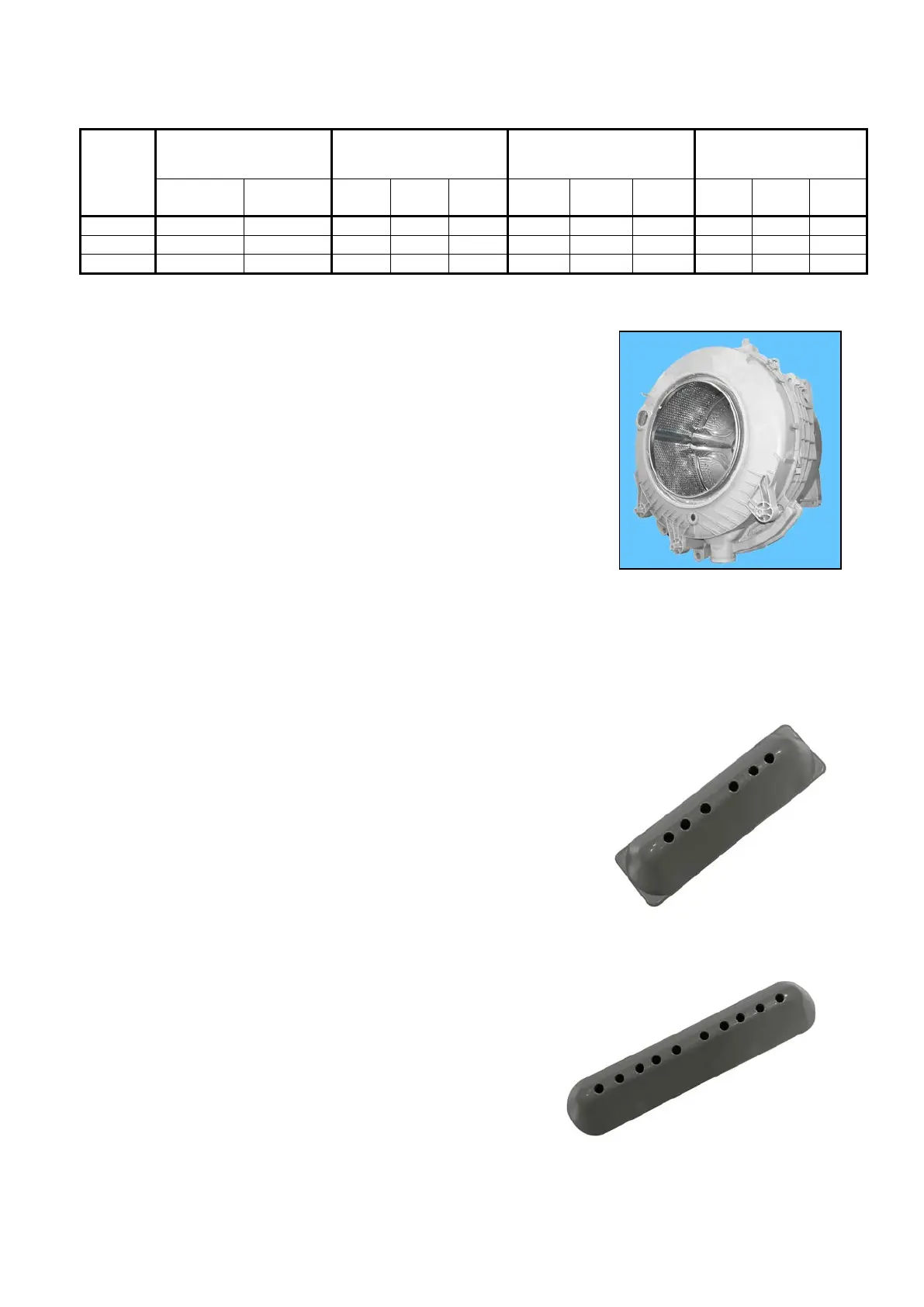

20.3 Welded tub assembly
The welded tub consists of:
 a rear casing assembly
 a front casing
welded together.
The pressure chamber (a) is integrated into the tub assembly.
The supports to attach the respective counterweights can be found
in the upper and frontal part.
The tub interior contains the drum assembly consisting of a STAINLESS steel casing to which the two flanges
are seamed.
There are three built-in blades inside the drum and blocked to the drum with fins:
In the Super Slim and Slim unit
The blade is small (fig. a)
In the Full size unit
The blade is large (fig. b)
a
a
b
Technical Support - DMM 78/124 599 75 58-67 Rev. 04
