20.4 Detergent dispenser
Operating principle of the conveyor.

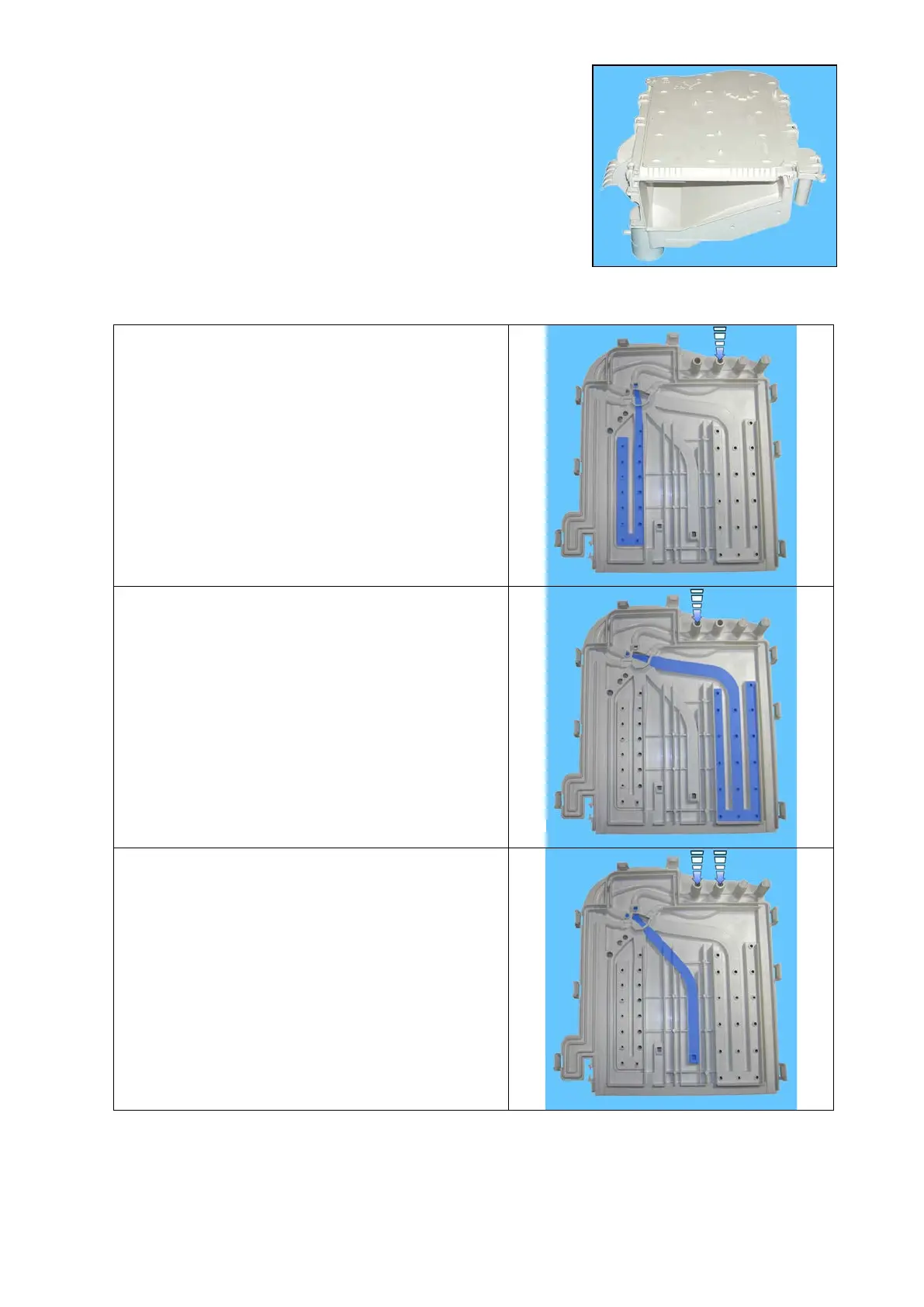

Water fill to pre-wash compartment
(pre-wash solenoid)
• This solution is used with the three compartment
tray models: the detergent in compartment “b” is
loaded at the start of the pre-wash phase.
Water fill to wash compartment
(wash solenoid)
• In all models: compartment “a” is used to hold
the detergent loaded at the start of washing.
• In the event of stains, mix stain removers with
the washing detergent (for powder detergent).
Water fill to conditioner compartment
(pre-wash and wash solenoid valves)
• In all models: compartment “c” is used to contain
the conditioner, which is removed with the water
of the last rinse.
