Electrolux LAUNDRY - Washing Group Components; Drum Shaft Bearing Support

SOI/DT 2006-01 dmm 25/71 599 37 47-13

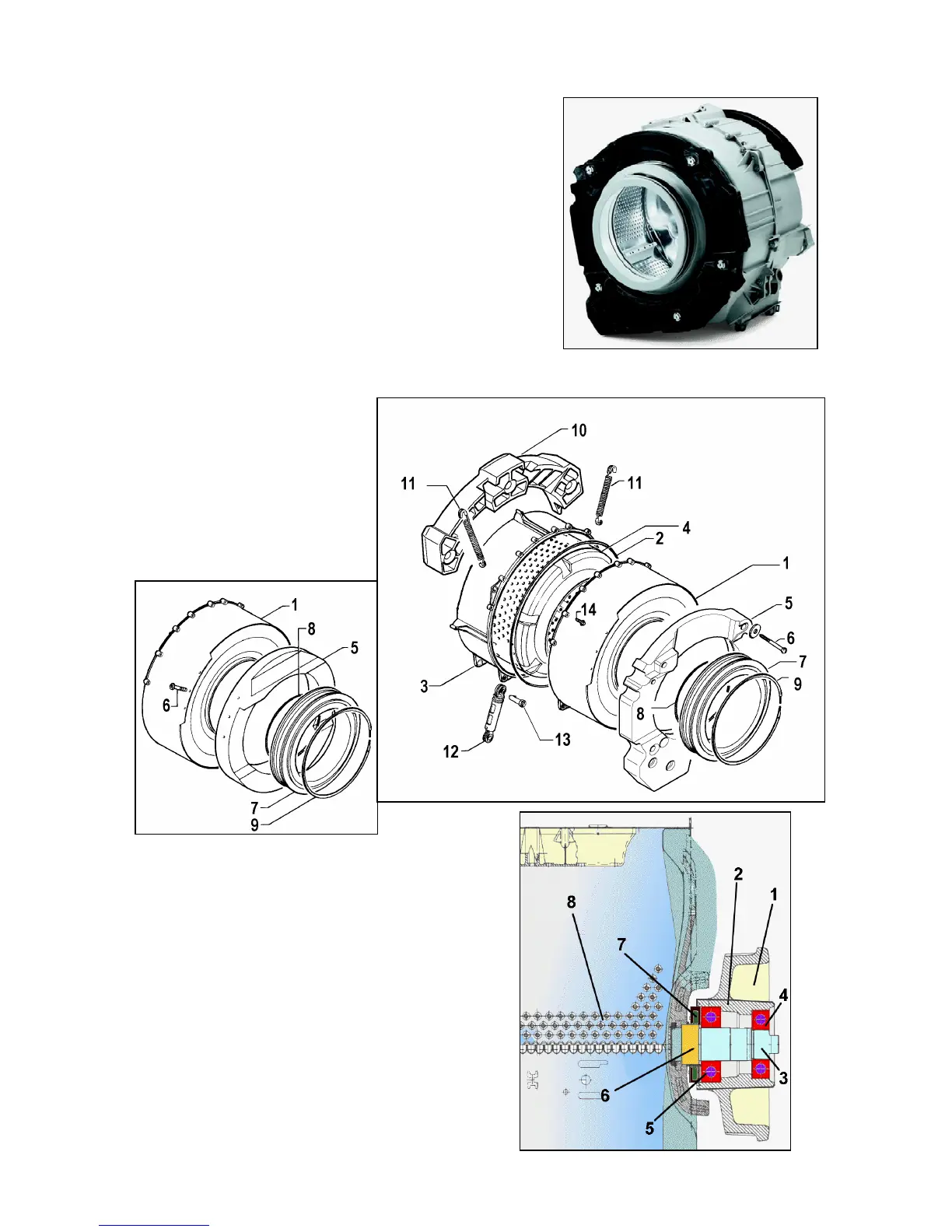

4.5.2 Washing group
The tub consists of two half-shells in Carboran, secured
together by a series of self-tapping screws (in the future the
two half-shells will no longer be secured with screws but
sealed between them).
The two counterweights are screwed to the half-shells.
The bellows seal is secured to the front half-shell by a metal
elastic ring.
1. Front half-shell
2. O-ring
3. Rear half-shell
4. Drum
5. Front counterweight
6. Counterweight anchor
screw
7. Bellows seal
8. Ring securing the seal to
the tub
9. Ring securing the seal to
the cabinet
10. Rear counterweight
11. Washing group
suspension springs
12. Damper
13. Damper hinge pin
14. Half-shell anchor screws
4.5.2.1 Support for bearings
1. Rear tub shell
2. Bearing support
3. Drum shaft
4. External bearing
5. Internal bearing
6. Drum shaft bushing
7. Drum shaft seal
8. Drum
