Electrolux LAUNDRY - Electrical Components Overview; Electrical Suppressor

SOI/DT 2006-01 dmm 33/71 599 37 47-13
5 ELECTRICAL COMPONENTS
5.1 Suppressor
5.1.1 General characteristics
The suppressor is connected to the input of the appliances
power line, and prevents radiofrequency disturbance from
entering the power circuit.
5.1.2 Electrical symbols

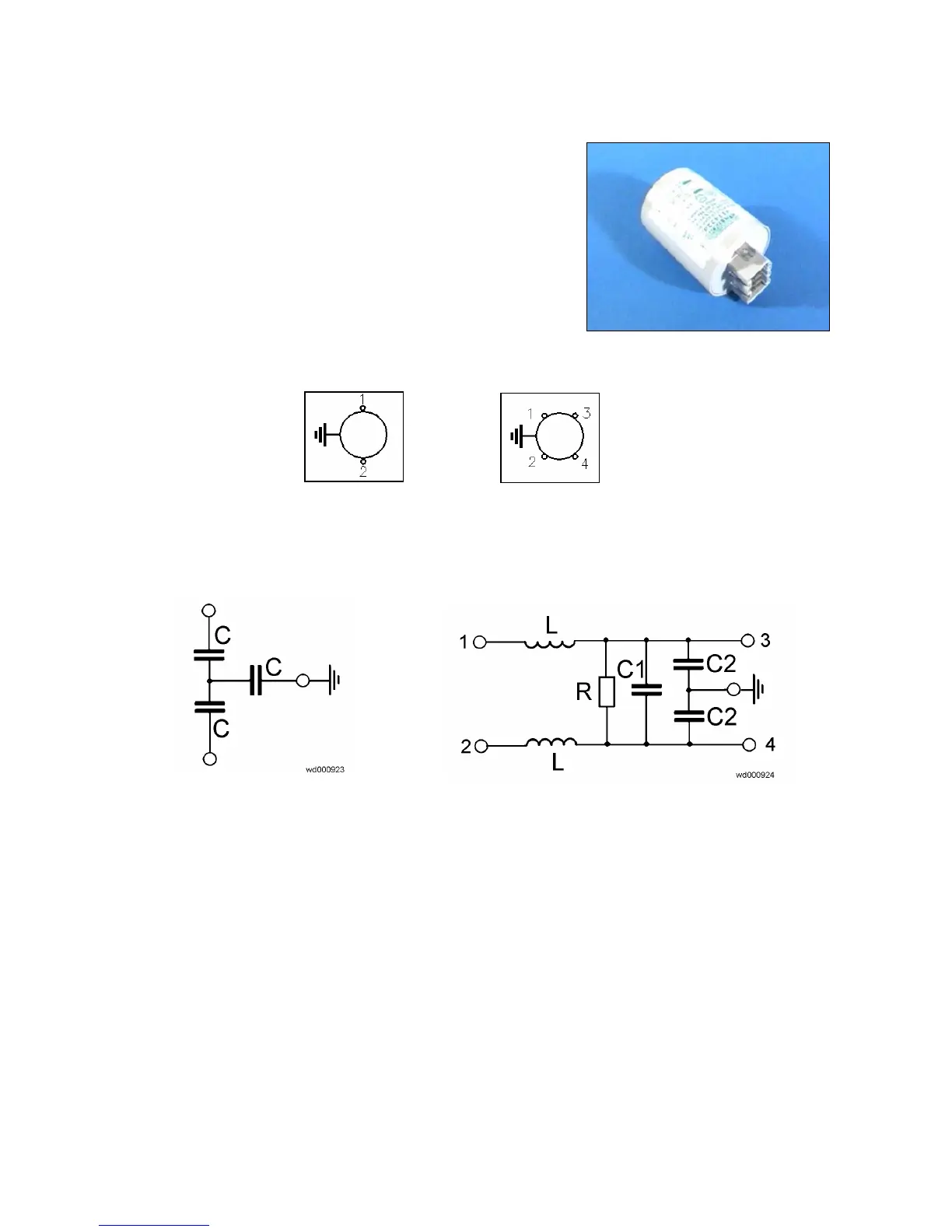

5.1.3 Circuit diagrams
5.1.4 Checking for efficiency
THE APPLIANCE GENERATES RADIOFREQUENCY DISTURBANCE:
- check the efficiency of the earth circuit
THE APPLIANCE IS INOPERATIVE:
- Use an ohmmeter to check that the component is not faulty:
- across 1 - 3 about 0 Ω
- across 2 - 4 about 0 Ω
THE ELECTRICAL SAFETY CUT-OUTS INTERVENE:
- use an ohmmeter (capacitance meter) to check that the component is not short-circuited across 3 - 4
(>500KΩ)
- check that there are no leaks to earth.
