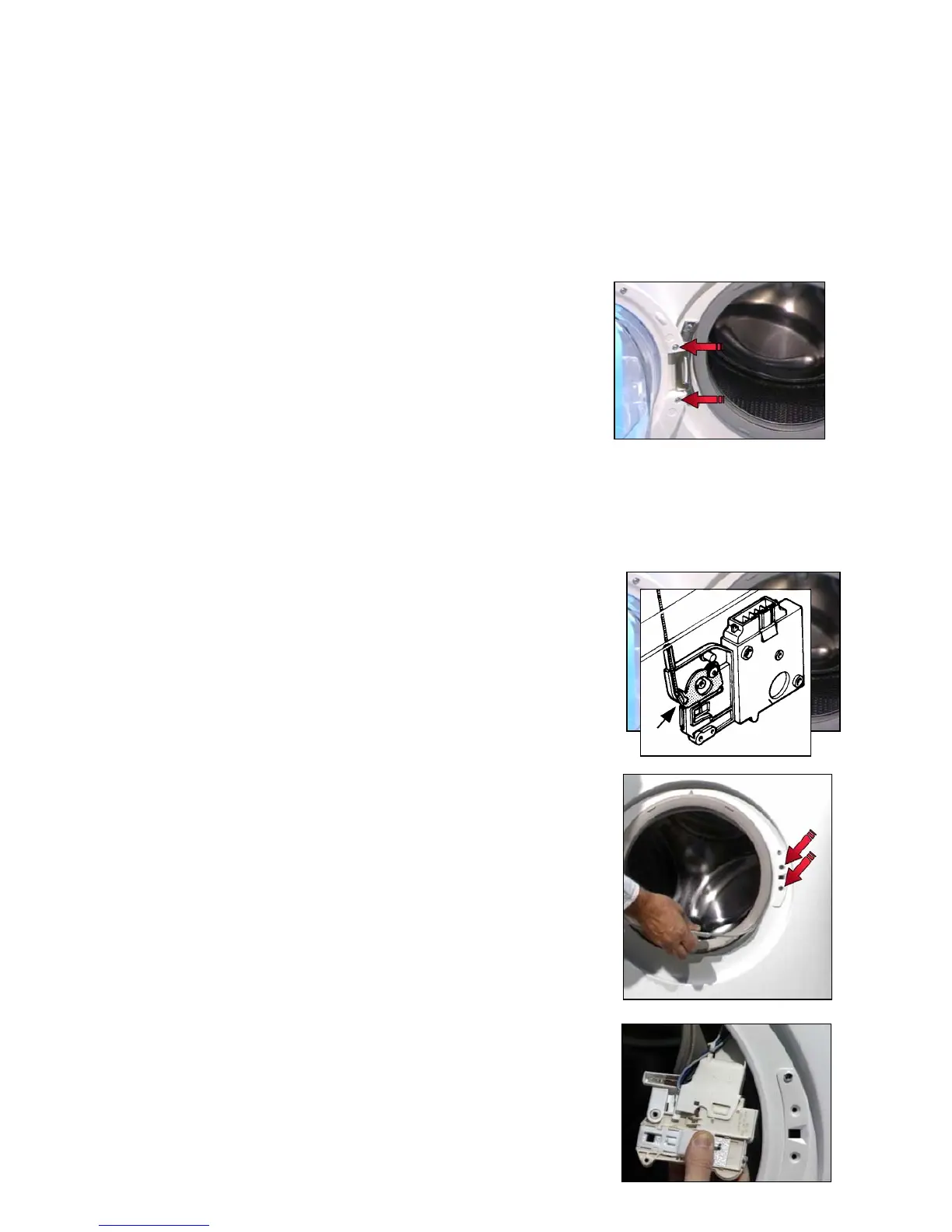

6.2 Access from the front panel
From the front panel it is possible to access to:
ª Door
ª Door hinge
ª Door safety interlock
ª Bellow seal
ª Front side
ª Filter pump body
6.2.1 Door
a. Remove the two screws which secure the door to the hinge.
b. Remove the screws which secure the surround-flange (if present)
and detach the flange from the surround.
c. Remove the glass door panel.
d. Remove the handle-latch assembly.
Re-assembly:
e. Position the handle assembly in its housing in the flange so that
the spring exerts pressure correctly.
f. Refit the glass panel to the flange.
g. Replace the surround and the screws.
6.2.2 Door hinge
h. Remove the door.
i. Remove the screws which secure the hinge to the front panel.
j. Remove the hinge.
6.2.3 Door safety interlock
k. Remove the seal from the front panel.
l. Remove the two screws which secure the door delay device to the
front panel.
m. Remove the door delay device.
n. Remove the cover from the door delay device.
o. Detach the wiring connectors.
