Electrolux LAUNDRY - Bellows Seal Replacement; Front Panel Removal

SOI/DT 2006-01 dmm 62/71 599 37 47-13

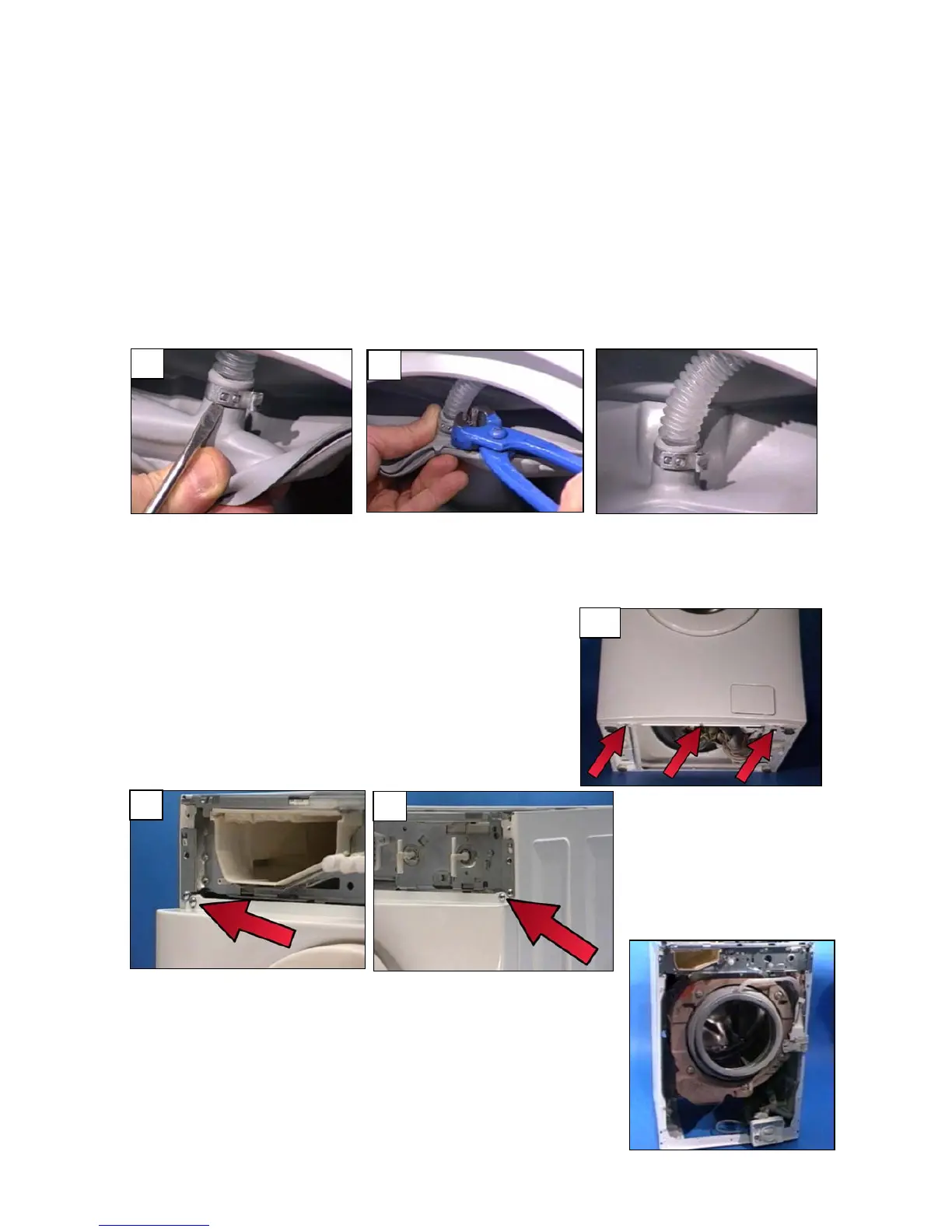

6.2.4 Bellows seal
a. Detach the retaining ring and the seal from the front panel.
b. Remove the clamp and pull out the circulation tube (if featured).
c. Remove the seal and the ring by pulling downwards (it is held in
position by an elastic ring).
Re-assembly:
d. Use soap and water to lubricate the seat of the seal where it comes into contact with the flange and the
metal ring.
e. Fit the seal to the flange with the drainage hole at the bottom and the internal reference notch at the top.
f. Replace the metal retaining ring (check that the ring is in good condition, otherwise it should be
replaced).
g. Replace the circulation hose and the hose clamp.
h. Fit the seal to the front panel and replace the clamp.
6.2.5 Front side
i. Remove the work top.
j. Remove the control panel.
k. Detach the bellow seal from the front panel.
l. Remove the screws which secure the door delay device.
m. Bend the appliance and remove the three screws which
secure the front panel to the lower part.
n. Remove the screws (right and left) which secure the front
panel to the cabinet in the upper part.
b
g
m
n
n
