Electrolux LAUNDRY - Basic Circuit Diagram for Diagnostics

SOI/DT 2006-01 dmm 56/71 599 37 47-13

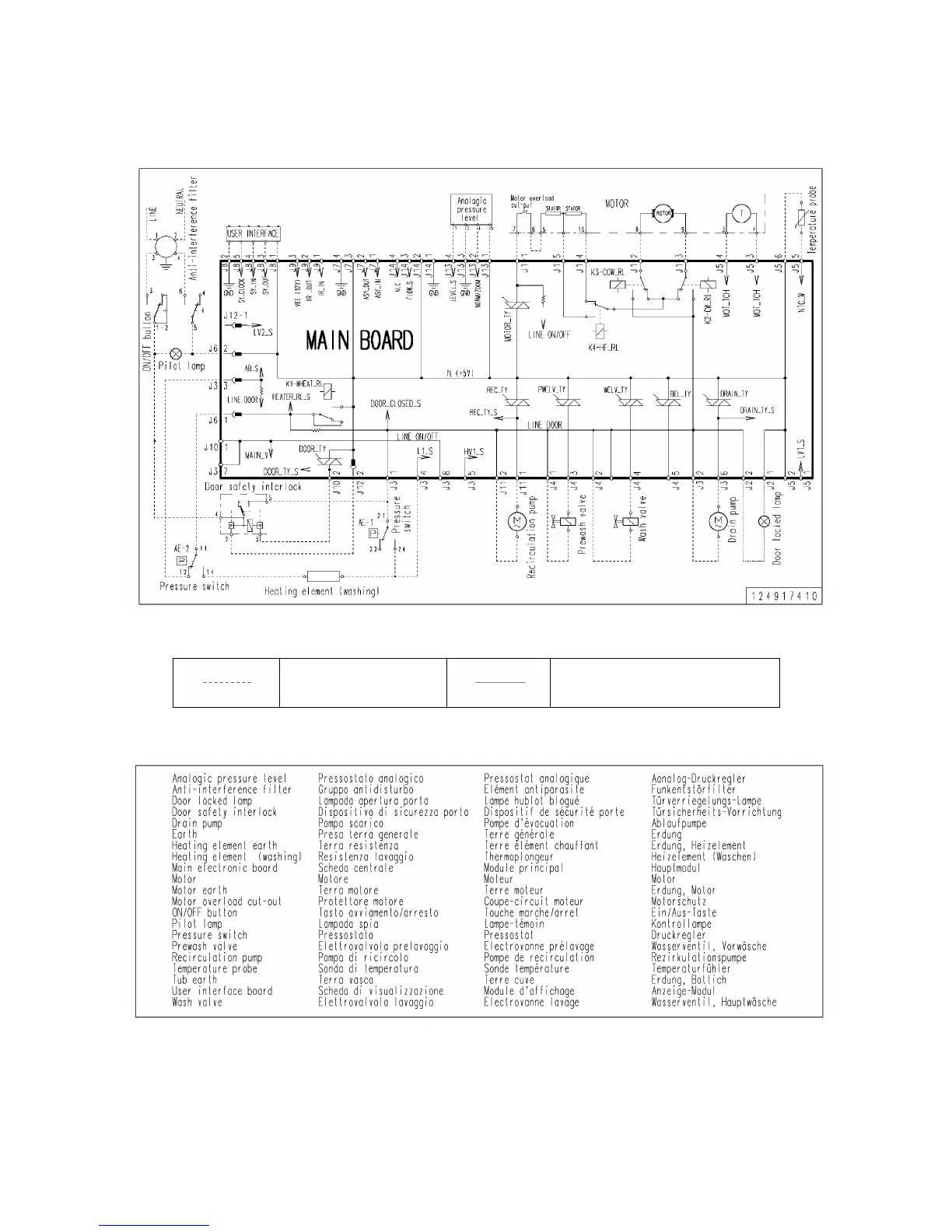

5.16.4 Basic circuit diagram
An example of a basic circuit diagram is shown below. The circuit diagram should be used to check the
appliance for correct operation in the diagnostics phase.
Wire
Internal connection
