Electrolux LAUNDRY - Detergent Dispenser System; Long Version Detergent Dispenser

SOI/DT 2006-01 dmm 28/71 599 37 47-13

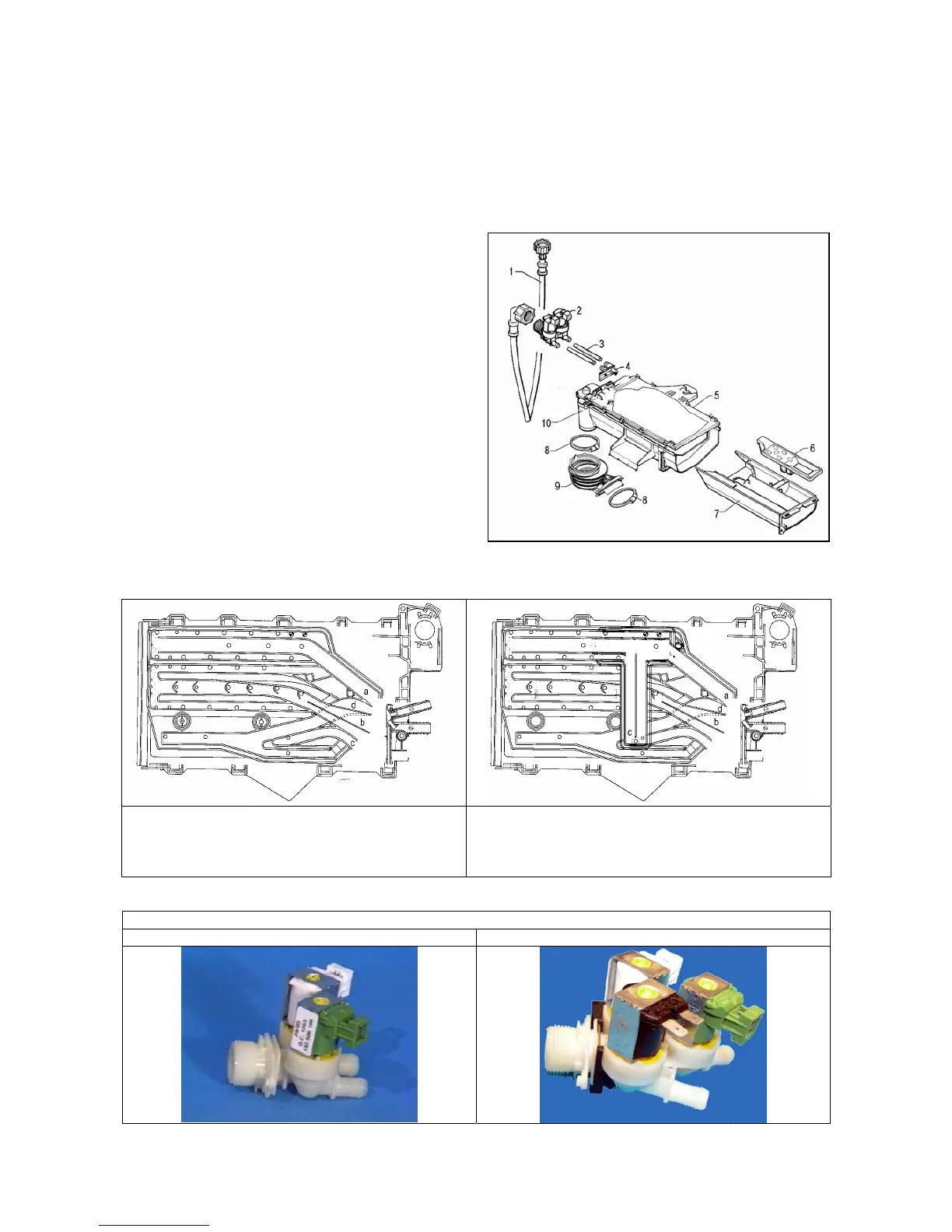

4.6 Detergent dispenser
4.6.1 Detergent dispenser with multiple-outlet solenoid valve ("long" version)
The water is ducted into the detergent compartment by a solenoid valve with one inlet and 2 or 3 outlets.
The detergent drawer may consist of 3 or 4 compartments.
1. Fill hose
2. Water fill solenoid
3. Tube
4. Dispenser nozzle
5. Dispenser duct
6. Siphon for additives
7. Detergent drawer
8. Clamp
9. Detergent entry tube
10. Detergent dispenser
• Water duct with four compartments
• 2- or 3-way water inlet nozzle
• 3- or 4-compartment detergent drawer
• Water duct with four compartments and flow
deviator
• 2-way water inlet nozzle
• 4-compartment detergent drawer
Combinations of solenoid valves
2-way solenoid valve 3-way solenoid valve
