SOI/DT 2006-01 dmm 67/71 599 37 47-13

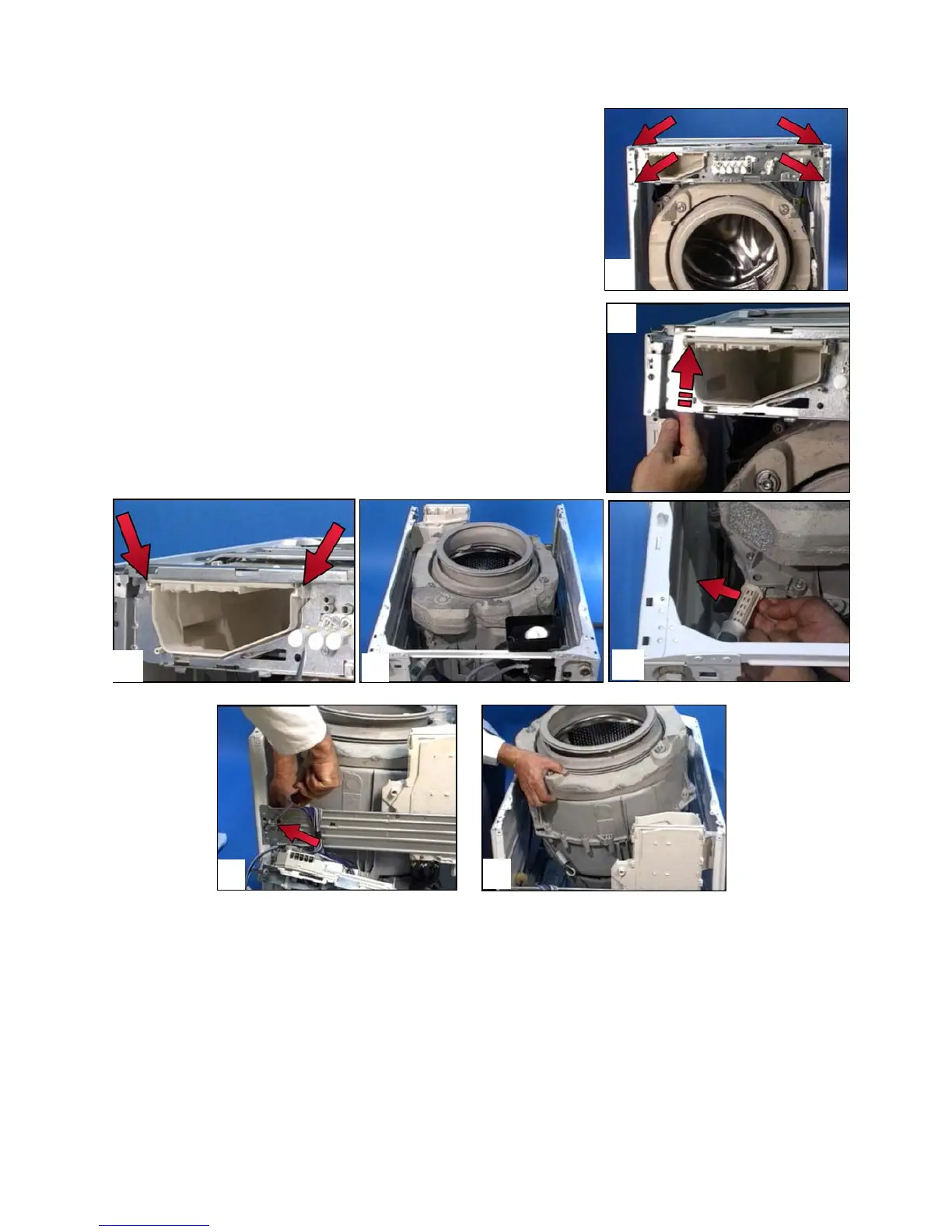

6.5 Washing group
a. Remove the work top.
b. Remove the rear panel, detach the hoses from the tub
(dispenser-tub), detach the connectors from the heating
element and from the NTC sensor, remove the belt and the
motor (to lighten the tub).
c. Remove the fixing ring and release the bellow seal from the
front panel.
d. Remove the front panel.
e. Remove the fixing screws of control support to cabinet.
f. Lift and release the control support from the cabinet.
g. Release the hooks which secure the detergent dispenser to
the control support and remove it.
h. Lay the appliance face up (paying attention to insert a sheet
of polystyrene or cardboard to prevent scratching the
cabinet).
i. Detach the various hoses from the tub (tub-collector, etc.).
j. Remove the two fixing pins of the dampers to the tub.
k. Detach the tub suspension springs from the crosspiece.
l. Remove the tub from the appliance.
6.6 Drum and tub shells
m. Remove the drum pulley and the motor
n. Remove the tub from the appliance
o. Remove the screws which secure the two shells together
p. Remove the drum.
Re-assembly: It is advisable to replace the sealing ring between the two tub shells whenever the tub is
opened. Connect the hoses to the tub in the correct positions.
e
f
g
h
j
k
l
