Electrolux LAUNDRY - Accessing Components from the Bottom; Damper Removal; Filter Hose and Pressure Chamber Access; Drain Pump Removal

SOI/DT 2006-01 dmm 66/71 599 37 47-13

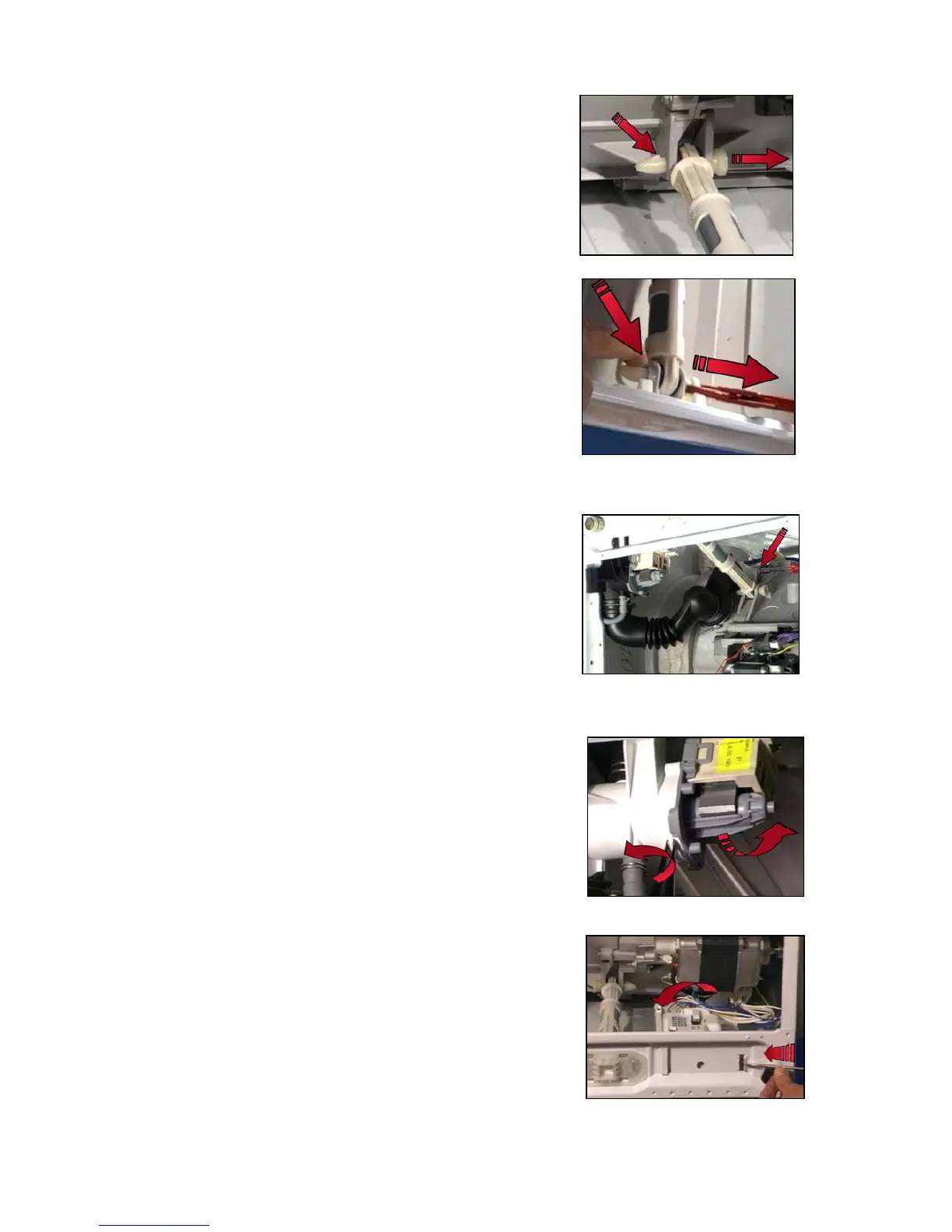

6.4 Access from the bottom of the appliance
6.4.1 Damper
a. Press the locking key and at the same time remove the
pin using pliers.
b. Remove the damper from the support.
When re-assembling:
Ö Check that the pin is not damaged; if so, replace it.
Ö Check that the anchor tabs protrude correctly.
6.4.2 Filter body tub hose + Pressure chamber
c. Loosen the clamps and detach the pressure switch tubes from
the pressure chamber.
d. Remove the fixing screw.
e. Use pliers to widen the spring clip and detach the pressure
chamber from the tub hose.
When re-assembling: Check that the pressure chamber is
clean and secure the tubes and clips firmly in their original
positions
6.4.3 Drain pump
f. Detach the connectors.
g. Press down the anchor tab.
h. Turn the pump counter-clockwise.
i. Remove the pump.
6.4.4 Inverter
j. Push the hook which fits the inverter to the lower crosspiece.
k. Lift it up and remove.
l. Detach the connectors.
g
h
d
a
b
a
b
j
k
