6.7 Drum lifter
The drum lifter can be removed from the interior for
tubs G19 G20 G22.

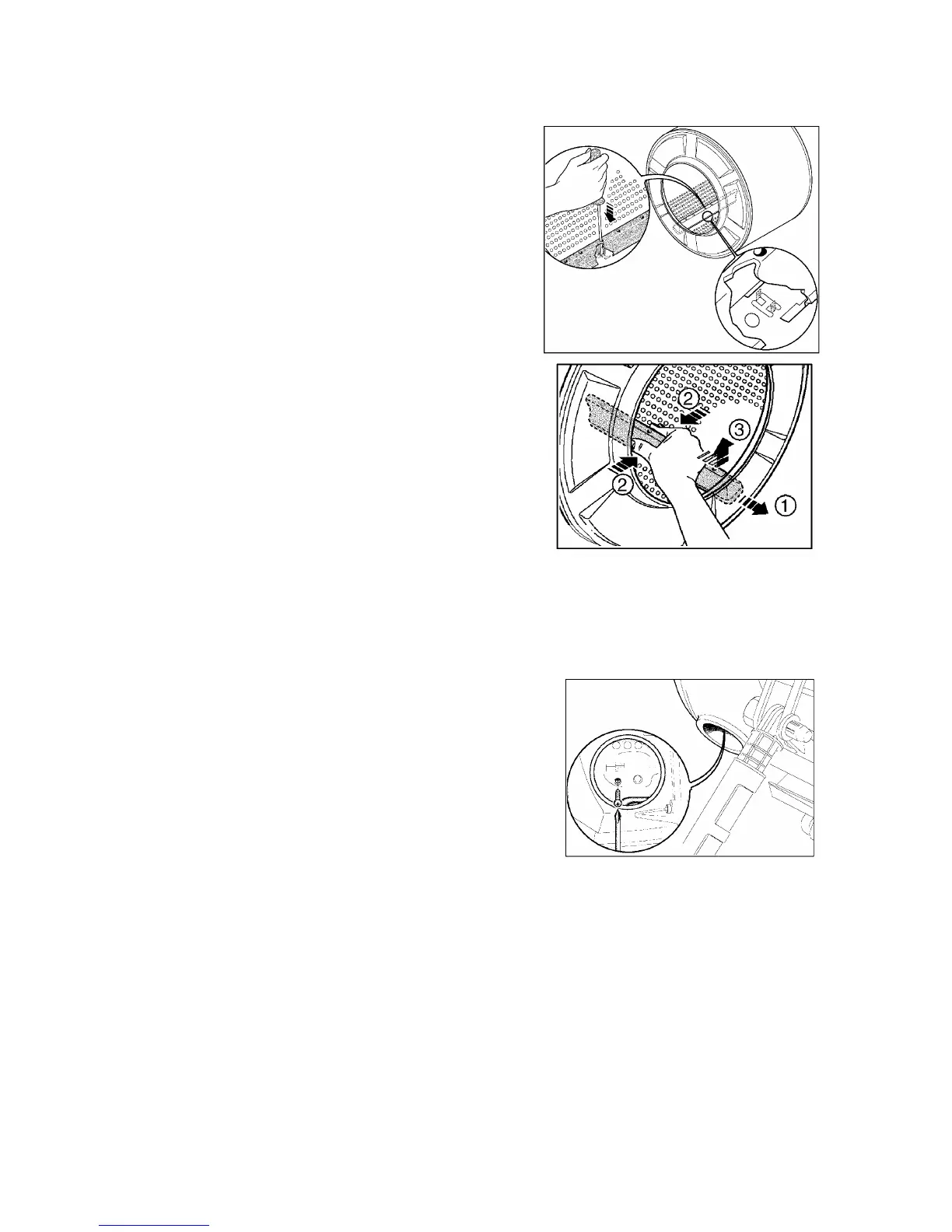

Removal
a. Insert a screwdriver into the nearest hole of the
drum lifter centre.
b. Bend the drum anchor tabs as shown in the
figure.
c. Pull the drum lifter towards the door of the
appliance and detach from the drum.
Re-assembly
a. Check that the anchor tabs are parallel with the drum band.
b. Insert the new lifter into the drum and push towards the rear of the appliance.
c. Detach the hose connecting the tub to the filter body.
d. Tighten the screw through the hole in the tub to secure the lifter to the drum.
a
b
