SOI/DT 2006-01 dmm 26/71 599 37 47-13

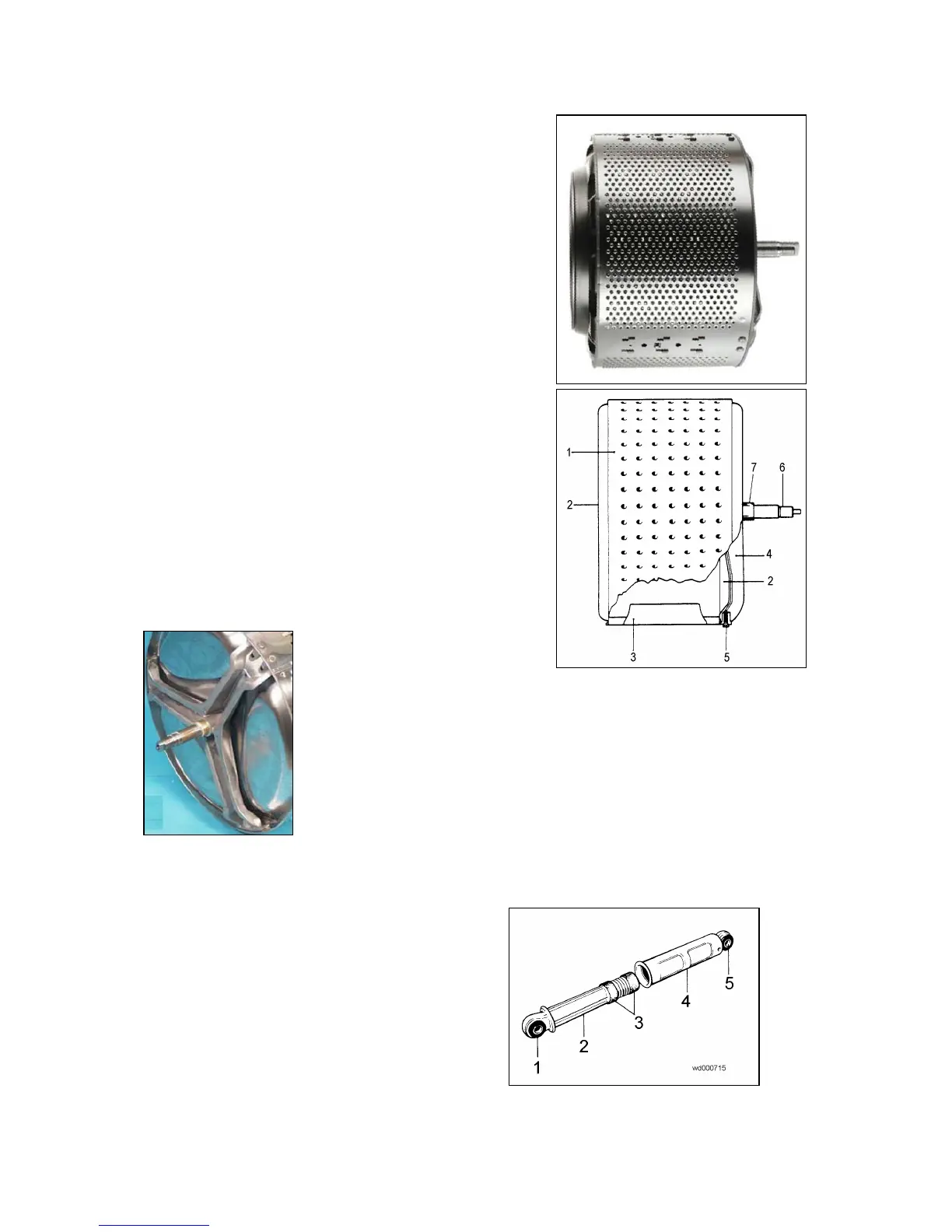

4.5.2.2 Drum
The drum consists of a stainless steel casing to which the two
flanges are crimped.
Three Carboran lifters are pressure-fitted to the internal face of
the drum.
The drum spider, in aluminium alloy, is secured to the edge of
the drum by screws.
A brass bushing is pressure-fitted to the drum shaft.
1. Drum casing
2. Flange
3. Drum lifter
4. Drum spider
5. Screws
6. Drum shaft
7. Drum shaft bushing
Drum spider
4.5.2.3 Damper
1. Rubber vibration damper
2. Shaft
3. Shaft seals
4. Cylinder
5. Bush
