6 ACCESSING COMPONENTS

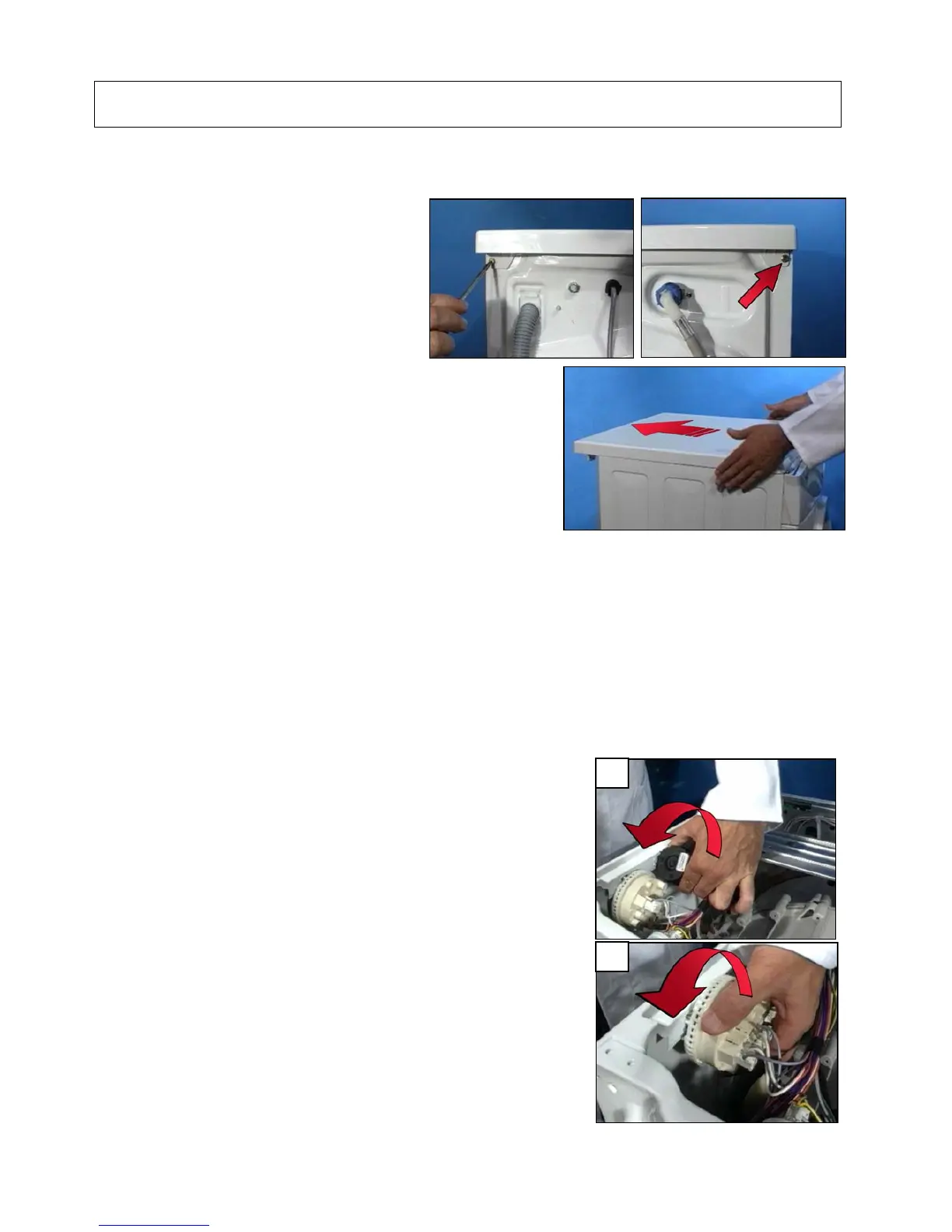

6.1 Access from the work top
a. Remove the two rear screws which fit it
to the cabinet.
b. Push the work-top towards the rear of the
appliance and detach.
From the work top it is possible to access to:
ª Pressure switches
ª Suppressor
ª Cable grommet and power cable
ª Solenoid
ª Control panel
ª Main board
ª Display board
ª Detergent dispenser
6.1.1 Electronic pressure switch
c. Remove the top.
d. Turn the pressure switch of 90° as in figure, and
extract it.
e. Detach the wiring connectors.
f. Detach the pressure switch hose.
6.1.2 Pressure switch
g. Remove the top.
h. Turn the pressure switch of 90° as in figure, and
extract it.
i. Detach the wiring connectors.
j. Detach the pressure switch hose.
d
h
