3. Description of principal components
Service
manual
3
Machine description
This service manual deals with two types of dryers:
• 900 litres T3900 / TD100
• 1200 litres T31200 / TD135.
Dryer types T3900 / TD100 and T31200 / TD135 are available as electric heated, gas heated
or steam heated.
Both types with ordinary vent into the air.
Both types with either standard door or with Sliding Door.
Sliding Door can also be fitted with tilt and rotation speed of the drum, see next page.
Programs - Selecta Control
The dryer has a microprocessor. The microprocessor control has different functions
including:
• Drum reversing (optional).
• An anticrease function which engages after the end of the program sequence.
• Dryer functions monitoring - errors occurred during the program sequence are registered
in the log. Some error codes are shown on the display at the same time.
• Autostop, the dryer stops automatically when the clothes are dry.

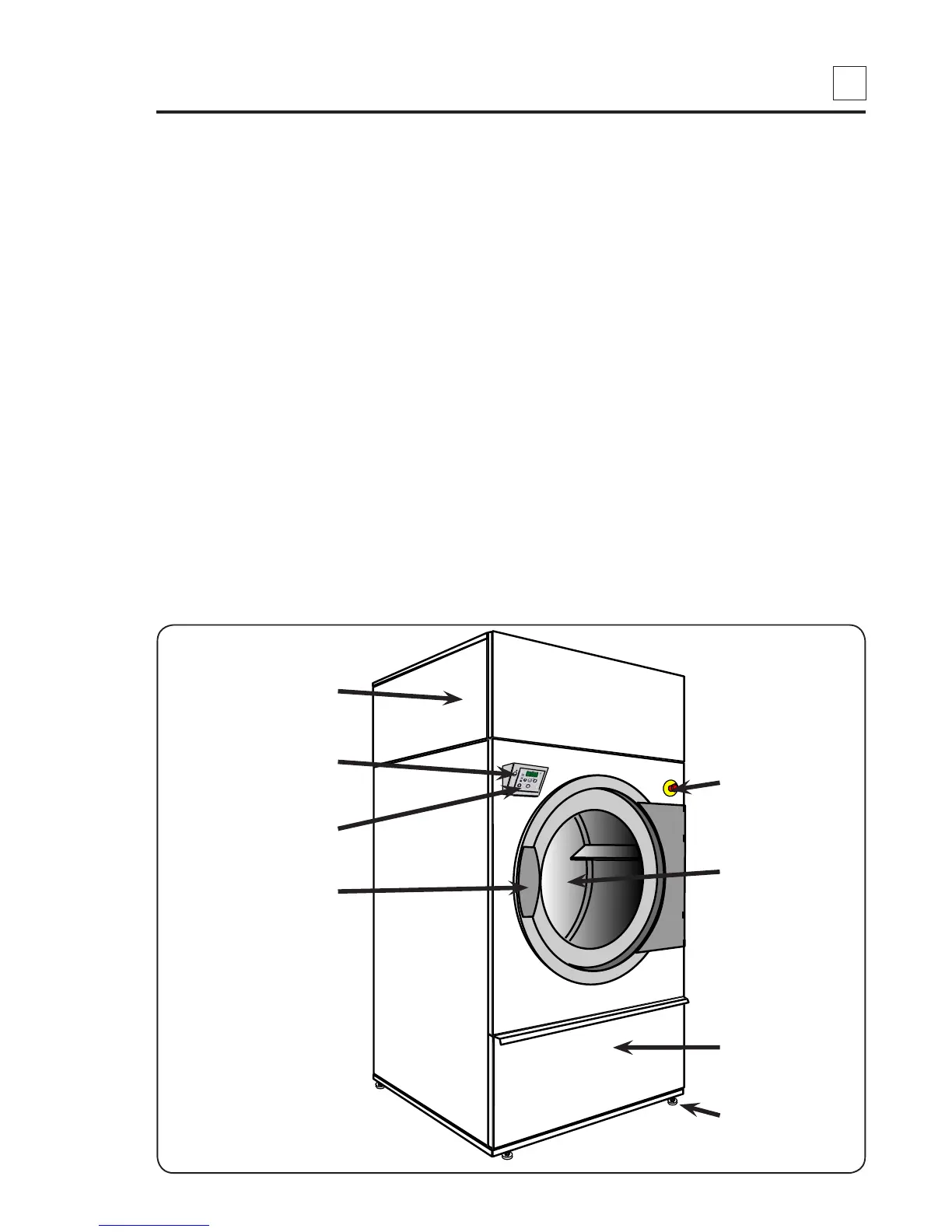

Heating unit
Gas reset button
(only active on
gas dryers)
Operating
control box
Standard door
Emergency stop
Drum
Filter door / filter
Adjustable feet
