11. Maintenance
Service
manual
11
2
A
Maintenance
Cleaning around the drum
From serial no.: T3900/TD100 0401/000358
T31200/TD135 0401/000114
As from 1 January 2004 the design has been
changed so that it is possible to clean around
the support rollers without having to dismantle
the front of the dryer.

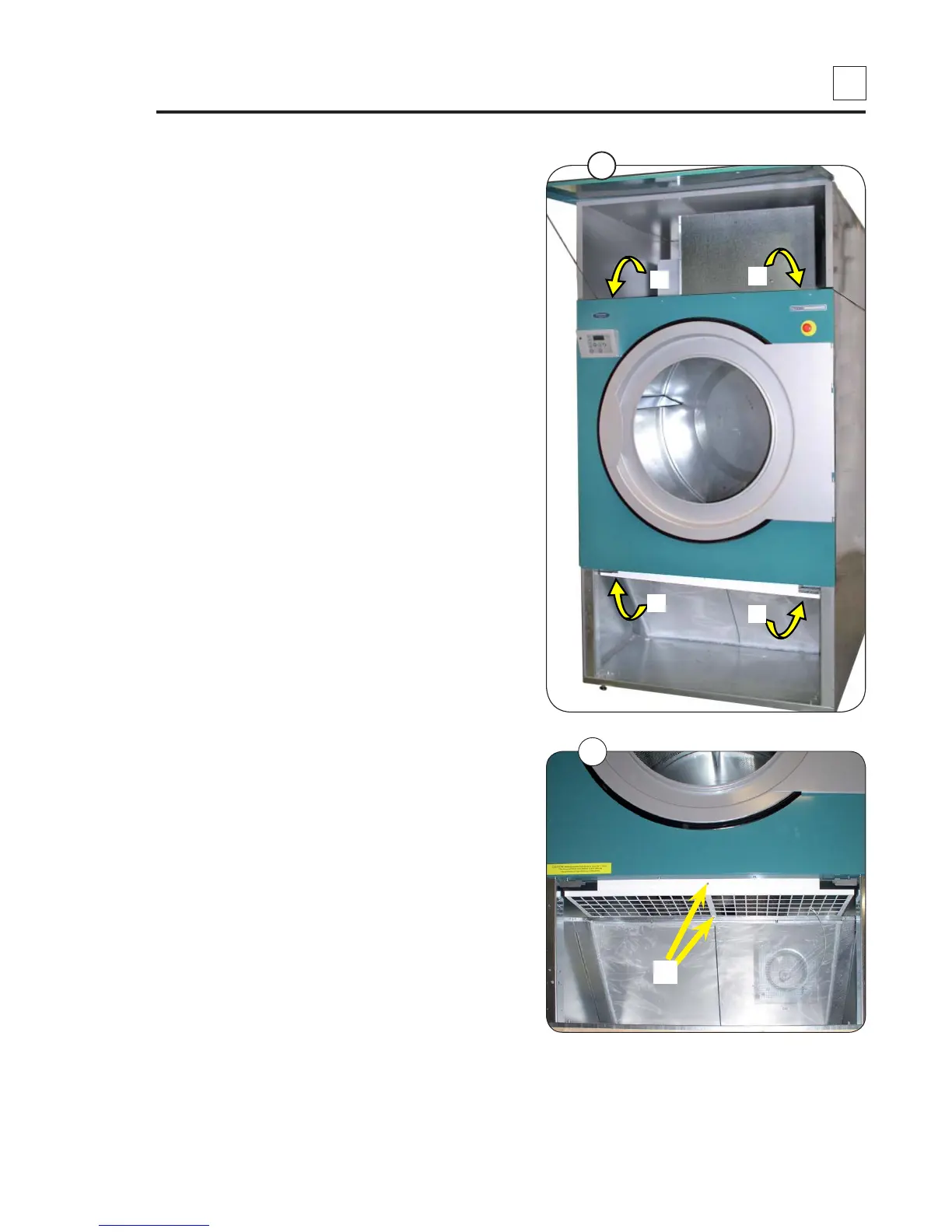

Cleaning is performed through the 2 service
holes B, fig. 1.
Cleaning around the upper section,
emergency stop and door switch can be
performed through the service holes F.
1. Disconnect the power supply to the dryer.
2. Open and remove the filter door.
The finger guard is removed by unscrewing
the 2 screws A, fig. 2.
Continued on the following page
