Electrolux T3900 - Electric Heating Unit Types

487 03 29 41
11
40. Heating system
Service
manual
40
487 03 29 41487 03 29 41487 03 29 41

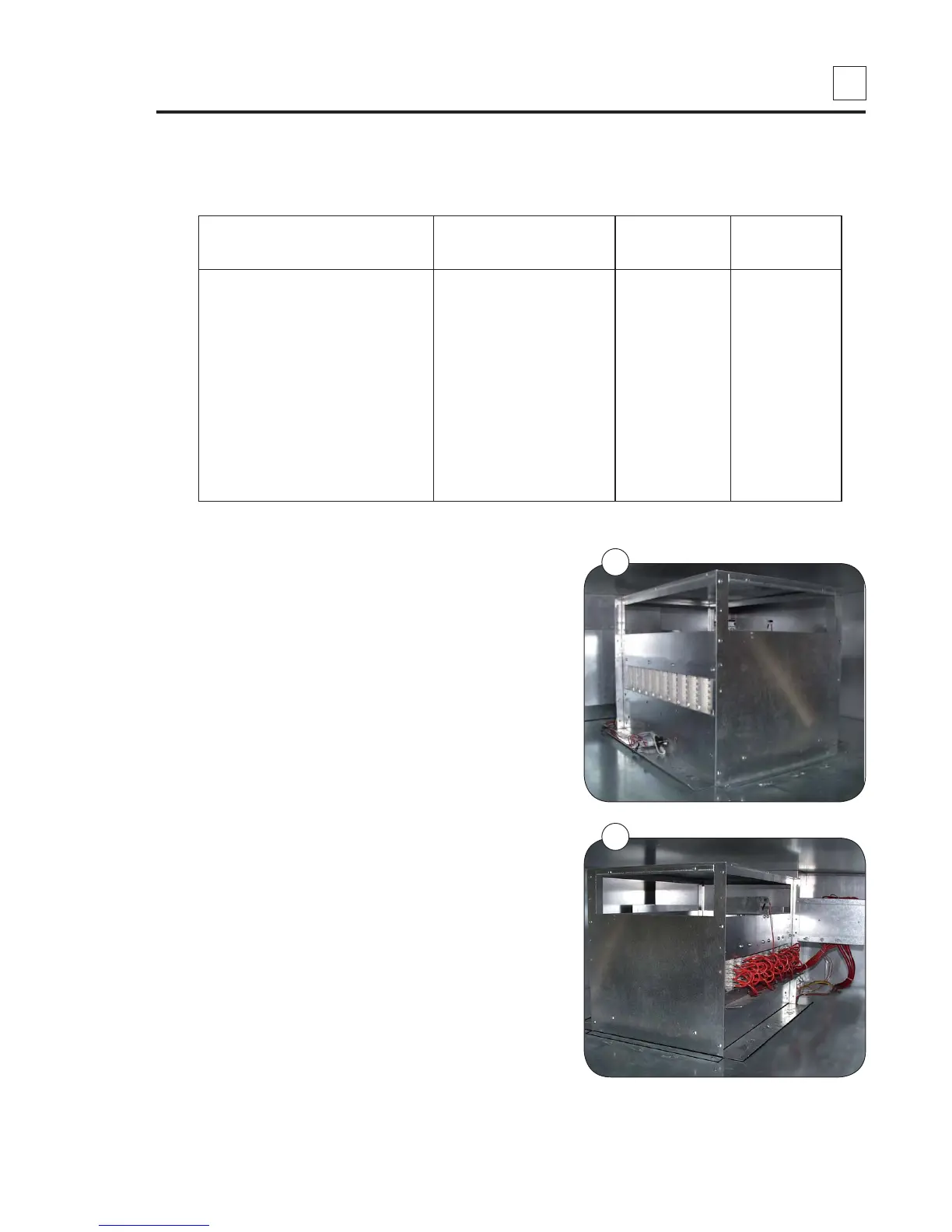

Electric heating unit types
Heating
effect
48 kW
48 kW
48 kW
60 kW
60 kW
72 kW
72 kW
Dryer type
T3900/TD100
T3900/TD100
T3900/TD100
T3900/TD100/T31200/TD135
T3900/TD100/T31200/TD135
T31200/TD135
T31200/TD135
Number of
elements
6
6
6
10
10
12
12
Voltage
230 - 240V 50/60Hz
400 - 415V 50Hz
400 - 480V 60Hz
400 - 415V 50Hz
400 - 480V 60Hz
400 - 415V 50Hz
400 - 480V 60Hz
Electric heating unit
Electric heating unit seen from the front with
open front shutter -
from the left, fig. 1.
and from the right side , fig. 2.
1
2
