487 03 29 41
7
3. Description of principal components
Service
manual
3
Drum
The drum is rear suspended in a bearing where
the bearing housing is mounted in a cross beam
mounted on the inner back plate.
The drum is either made of stainless or
galvanized steel.
See section 42.

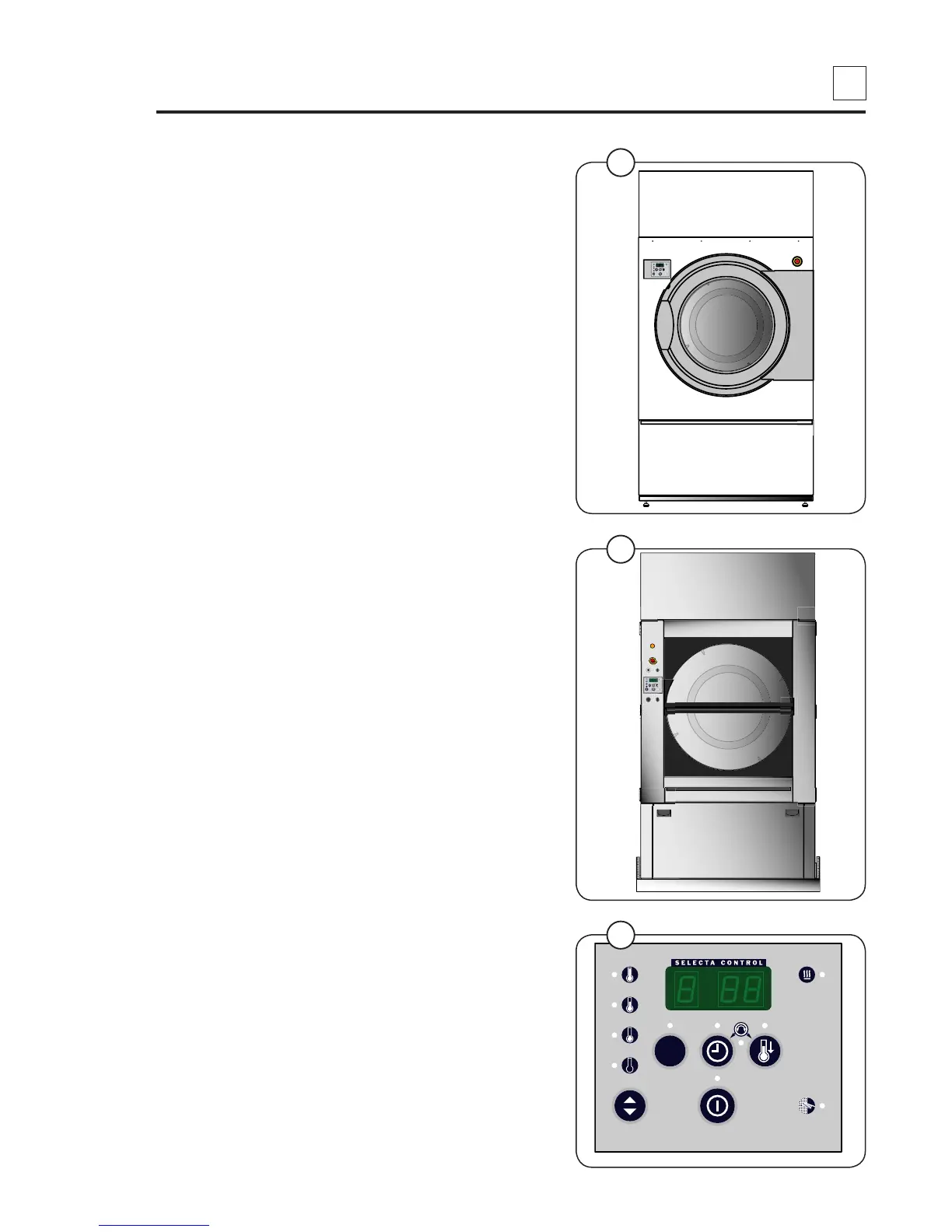

Loading door
The dryer has a right or a left hinged standard
door, fig. 1. or Sliding Door, fig. 2.
A door switch ensures that the dryer stops
automatically if the door is opened during a
program sequence.
See section 29.
Motor
Both dryer types (900 litres and 1200 litres)
have 2 motors:
• 1 drum motor.
• 1 blower motor.
See section 30.
Heating unit
The heating unit is positioned in the top of the
dryer.
See section 40.
Operating control box/panel
The operating control, fig. 3. box or panel is
equipped with:
• Buttons for setting programs, temperatures,
and drying time.
• Start/stop button.
• Display showing program selection, remaining . . . .
drying time and error code, if any.
• Heating indicator, lamp lights when heating is . . . . .
on.
See section 21.
1
2
