Electrolux T3900 - Dismounting Fan Module

487 03 29 41
5
30. Motor
Service
manual
30
Dismounting fan module
1. Disconnect the power supply to the dryer.
2. Remove the back plate.

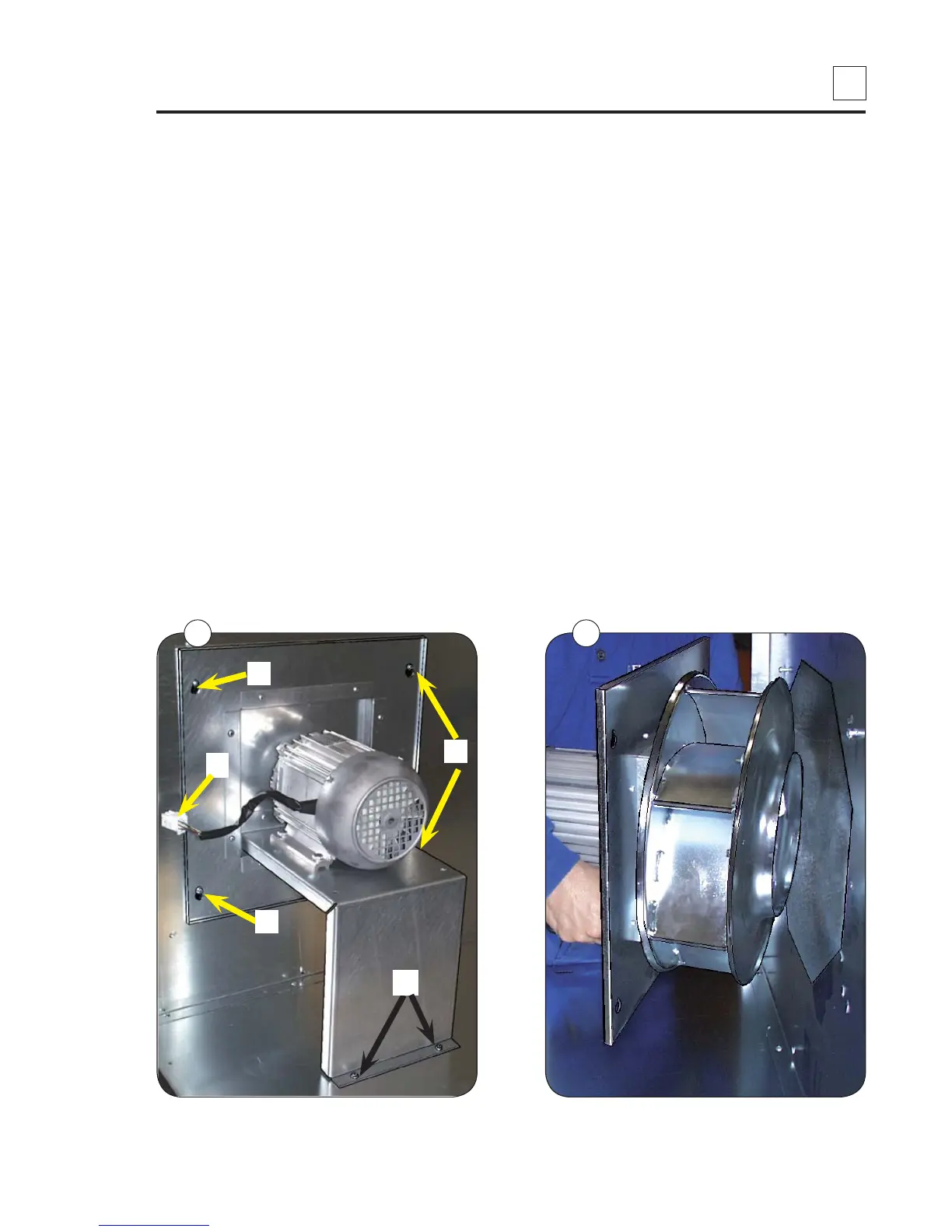

3. Fig. 1 Remove the 2 screws A from the bottom of the dryer.
Loosen the 4 screws B.
4. Fig. 1. Disconnect the motor plug C.
5. Fig. 2. Dismount the whole fan unit.
The fan wheel is mounted directly on the motor shaft.
A
B
B
B
C
1
2
