40. Heating system
Service
manual
487 03 29 41
10
40
487 03 29 41487 03 29 41
Electric heated dryers
Description

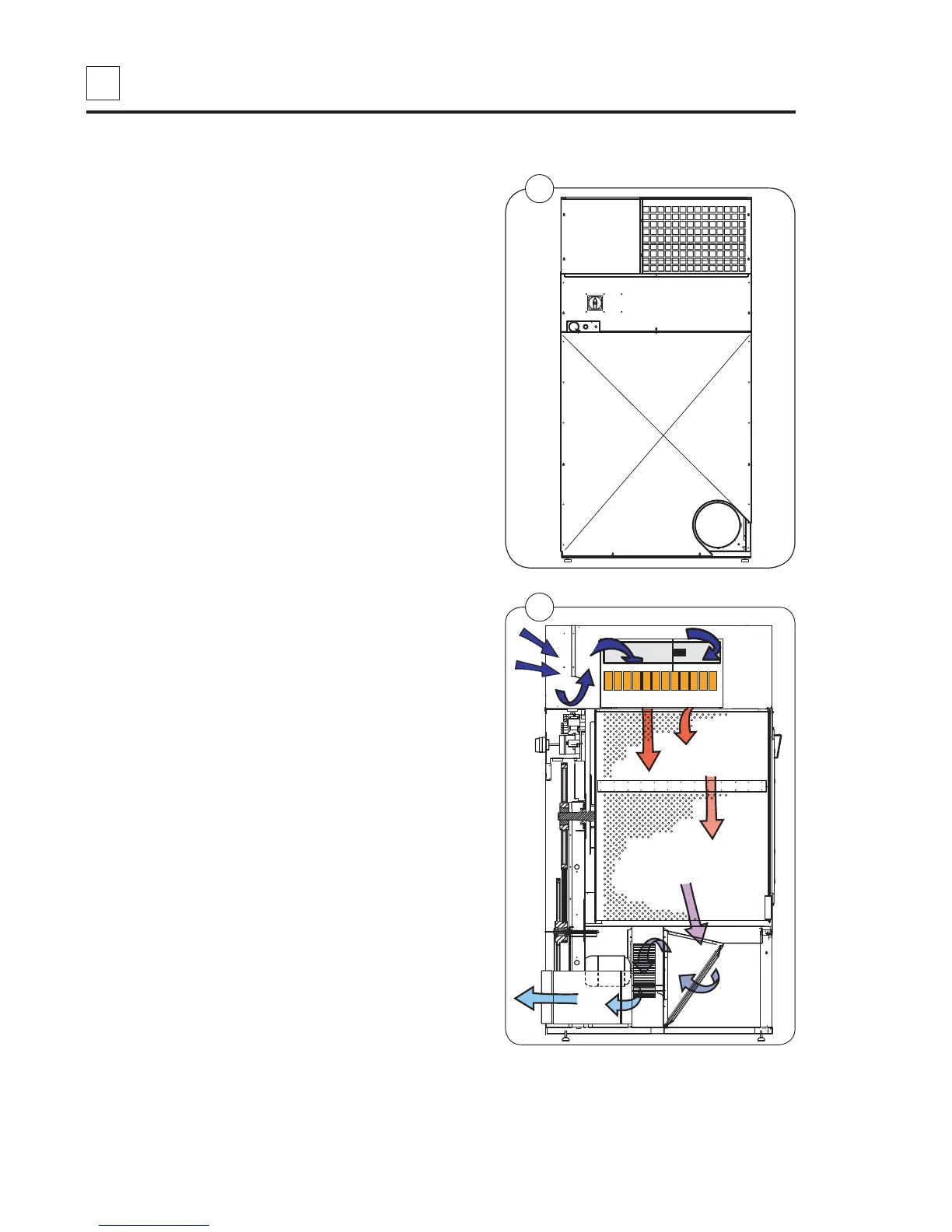

The electric heating unit is located on the top of
the dryer behind back plate A, fig. 1.
The air is drawn through the louvres on the back
plate and into the heating unit.
The heated air passes through the garments
and the drum vents.
Then the air flows from the perforation through
the filter and via the outlet to the open air, fig. 2.
The heating element is switched on by the
heating contactor K4, which is controlled by
the Selecta Control.
Overheating thermostats (also see section 27)
Electric heated dryers are equipped with three
overheating thermostats connected in series,
two in the inlet and one in the outlet.
In the event of overheating, the dryer stops and
E08 flashes in the display.
Reset must be done manually but first the
error must be detected and the switched off
overheating thermostat must be found, see
section 27.
This error is often caused by reduction of the air
circulation in the dryer due to not enough air in
the room or due to the dryer being overloaded.
If the dryer is also stopped before the cool down
function has started the after-heat can cause the
overheating thermostats to switch off.
The following error code are related to this
section:
E 08 overheating
See Selecta Control service manual.
