42. Drum with bearing
Service
manual
42
6
5
C
P
6. Open the door, lift the drum and insert a
wedge C between the front and the drum so
that the support rollers are relieved of the

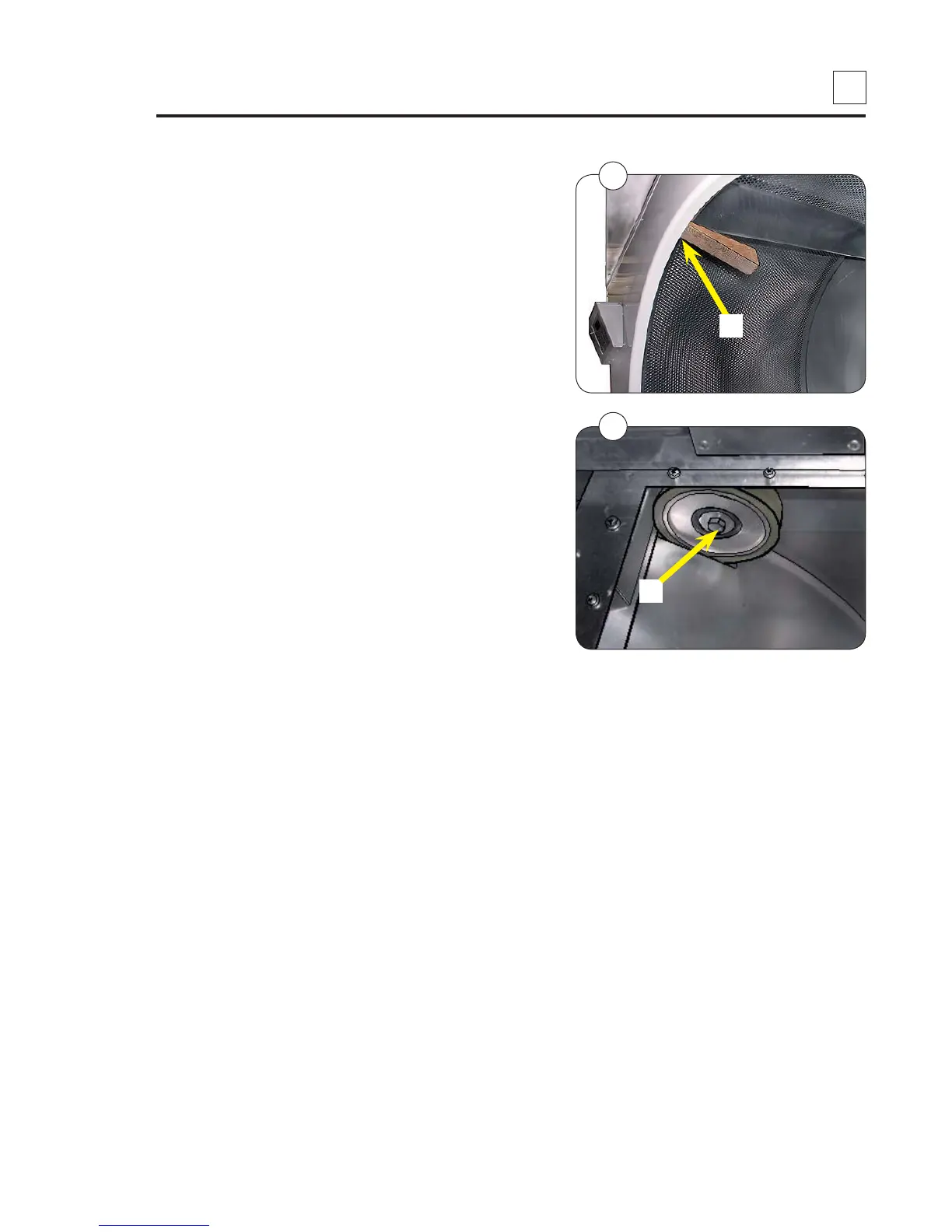

pressure of the drum, fig. 5.
7. Dismount screw P with washer and bush
and supporting rollers can be
Dismounted/replaced.
Ved mounting: Protect the screw P with
Omnifit Seal 46M or similar quality.
Tighten the screw P with 30 Nm, fig 6.
8. Reassemble the dryer.
9. Connect the power supply.
Function check
Function check the dryer, see section 11.
