42. Drum with bearing
Service
manual
487 03 29 41
12
42
Sliding Door
Replacing drum
When removing / replacing the drum in a
dryer with Sliding Door, all extra equipment
for the Sliding Door must be dismantled.

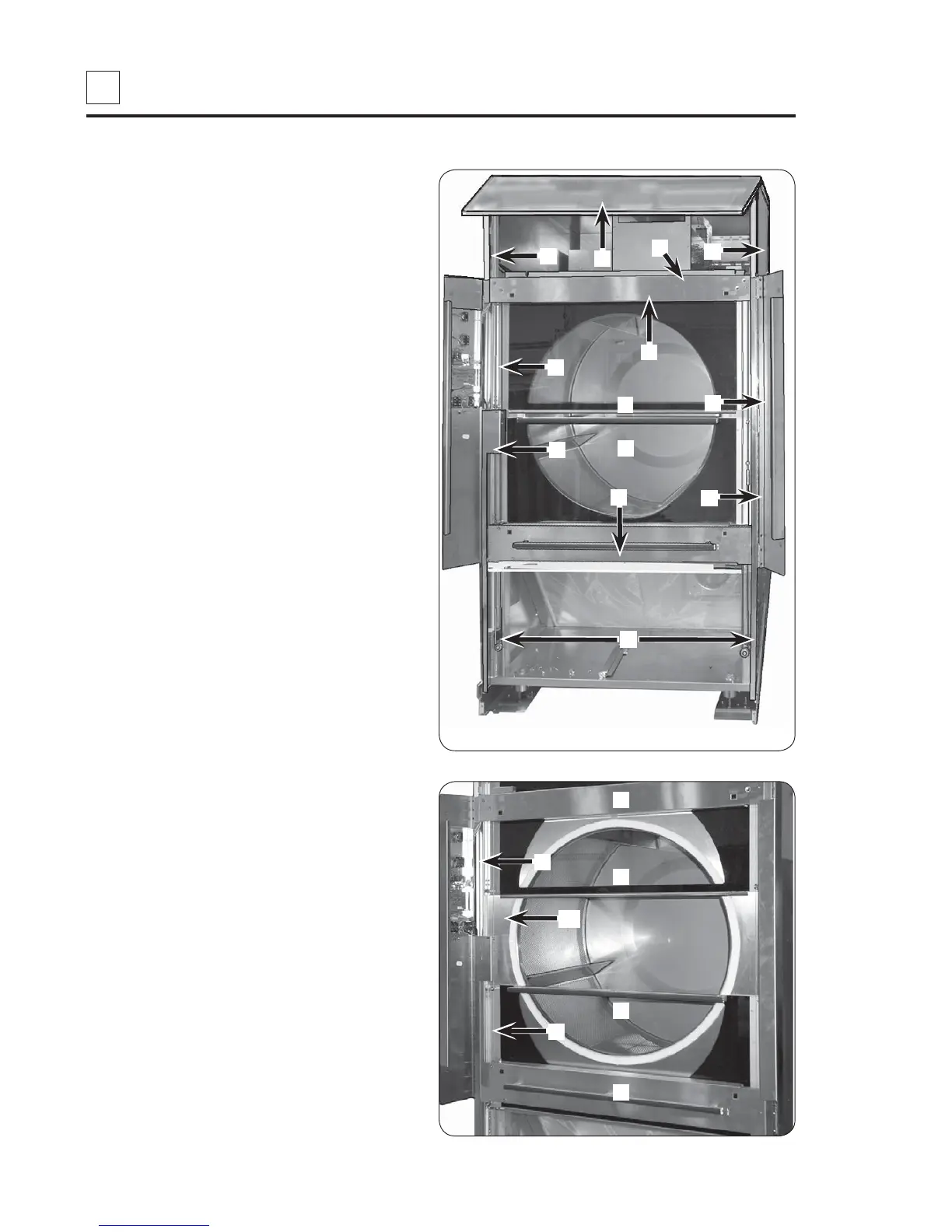

1. Side screens in the filter compartment.
2. Left or right panel with microswitch.
3. Wire.
4. Cross members.
5. Door to burner unit.
6. The 2 upper side panels.
7. Rail in which the door slides.
8. Loading doors.
9. Support rail.
10. Front .
After this, the procedure for dismantling
the drum is exactly the same as on a dryer
with standard door, as described earlier in
this section.
Continued on the following page
