29. Door switch and filter switch
Service
manual
29
Loading door switch
Standard door
A switch is mounted at the loading door hinge.
The switch ensures that the dryer stops
automatically if the loading door is opened
during operation.
If the dryer does not stop when the loading
door is opened, the switch needs replacing.

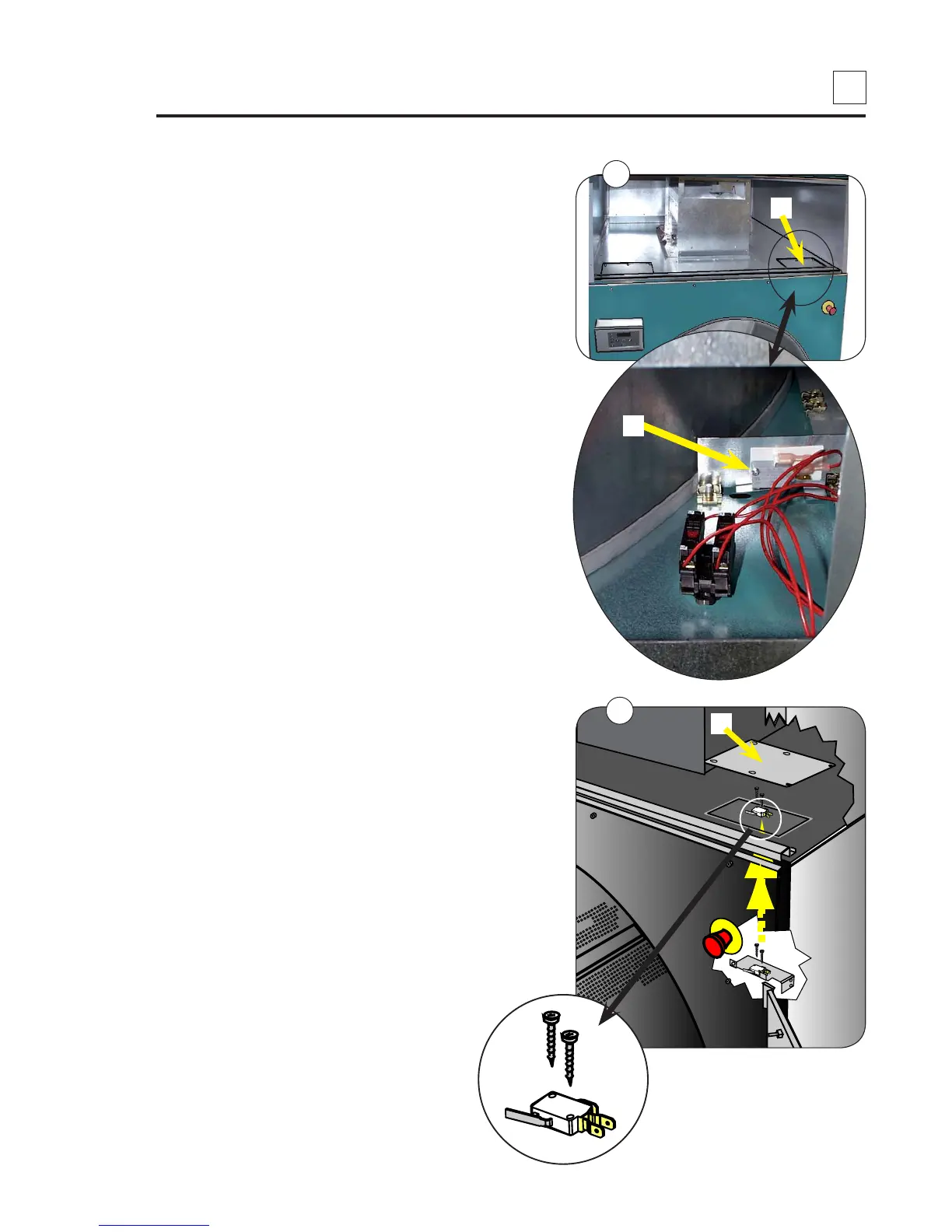

Replacing door switch
1. Disconnect the power supply to the dryer.
2. Open front shutter and dismount right
service cover plate F, fig. 1.
3. Dismount switch from console by
unscrewing screws B, fig 2.
4. Disconnect the wires from the switch.
5. Mount the new switch.
6. Connect the wires.
7. Re-assemble and test the new door switch,
see next page.
