21. Controls
Service
manual
487 03 29 41
6
21
1

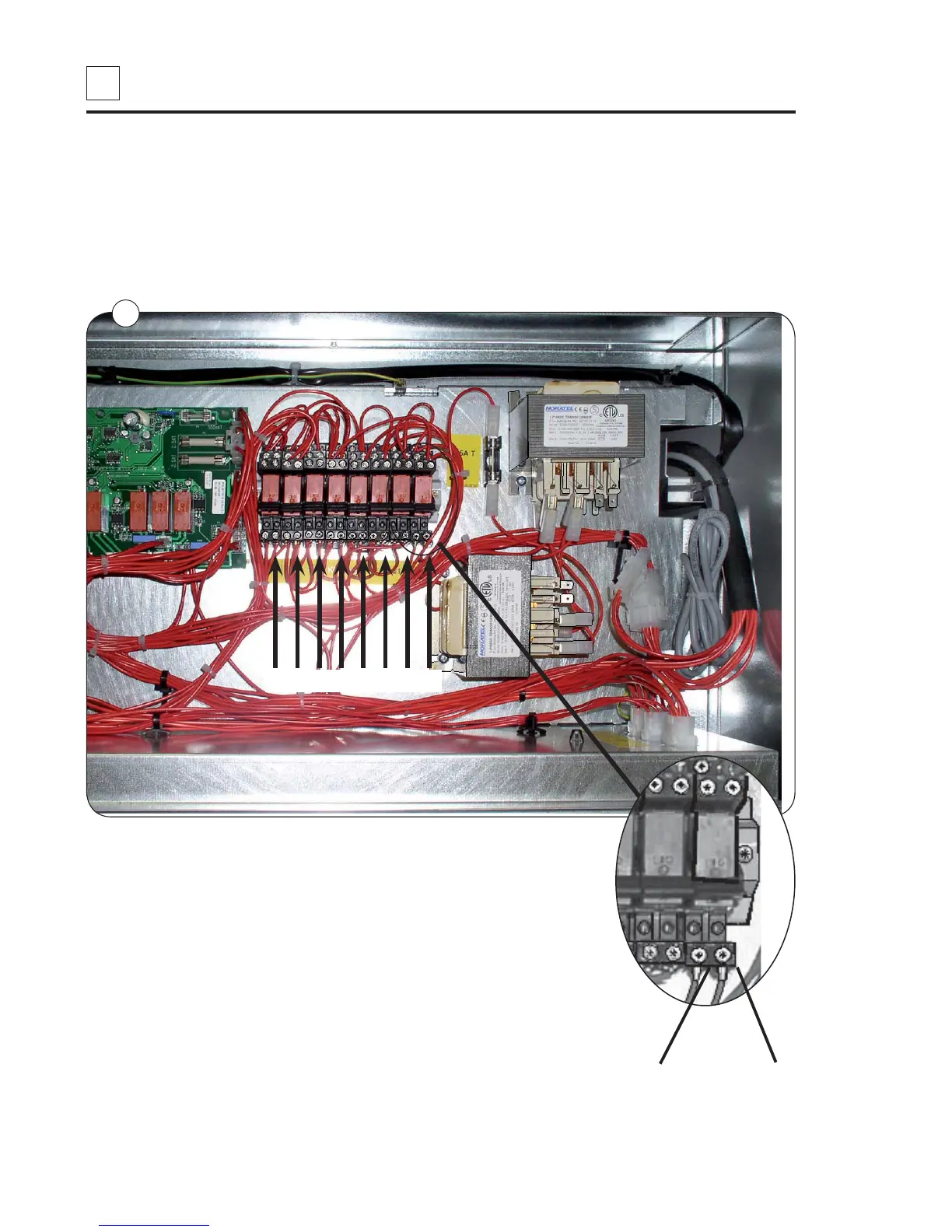

KL KA KB KC KD KE KQ1 KQ
Relays 110V AC:
KL: Indicator light / tilt (two-poles)
KA: Tilt system DOWN / door switch circuit (two-poles)
KB: Tilt system circuit (two-poles)
KC: Tilt system UP (two-poles)
KD: Rotation CW (two-poles)
KE: Rotation CCW (two-poles)
KQ1: Frequency control / drum rotation / tilt (two-poles)
KQ: Frequency control / drum rotation (single-pole)
Control unit with main circuit board
Dryer with sliding door, tilt and frequency control
Dryers with sliding doors can be controlled with up to
8 extra relays that govern tilt, drum rotation speed and
frequency converter.
A2
110V AC
A1
