30. Motor
Service
manual
30
Dismounting transmission module

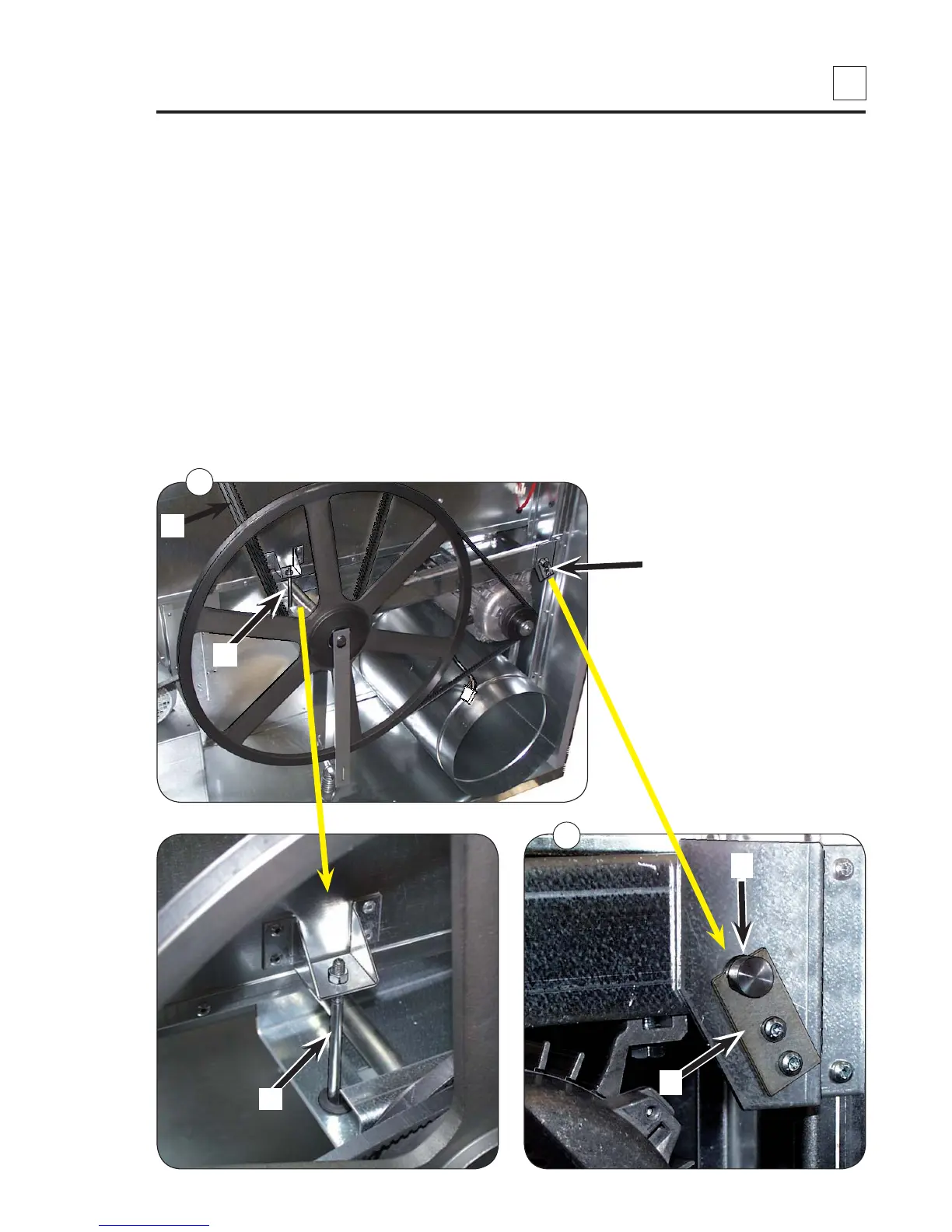

5.Fig. 3 Remove screw E (the whole motor bridge
then hangs from the belts C).
6. Dismount locking plate G in order to remove the
motor bridge shaft F, fig. 4.
7.Lift the belts C off the pulleys and the whole
transmission module with motor bridge can now be
removed.
Motor/transmission/pulley can be replaced or fixed.
