Use and maintenance manual
Page 28
Engineering Department PHONE: +39 0532 829 965 - FAX: +39 0532 829 177
E-Mail: support@elenos.com
3. USER INSTRUCTIONS

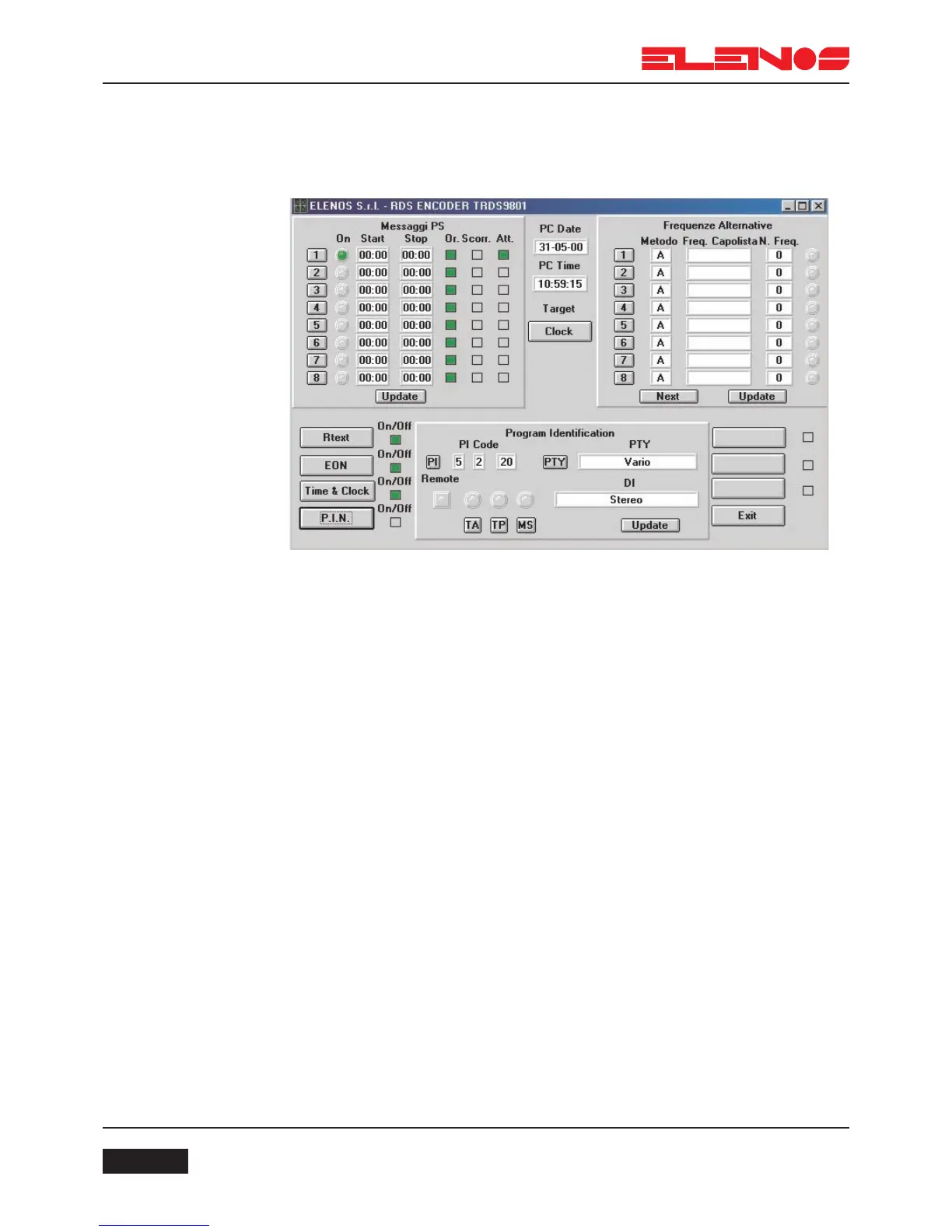

Once the port and baud rate have been set, the PC will begin to upload enco-
der data to determine the data with which it has been programmed. When successfully
completed, a screen will appear with three main sections: “PS Messages”,”Alternative
Frequencies” and “Program Identification”.
3.4.10.
RDS Encoder
Programming
