 RCD / Auto (Trip-time)
Auto
RCD
x1/2
x1/2
x1
x1
x5
x5
0
180
0
180
0
180
---- ms
---- ms
---- ms
---- ms
---- ms
---- ms
10mA
AC
General
0
OK
TN-net
1 230
229

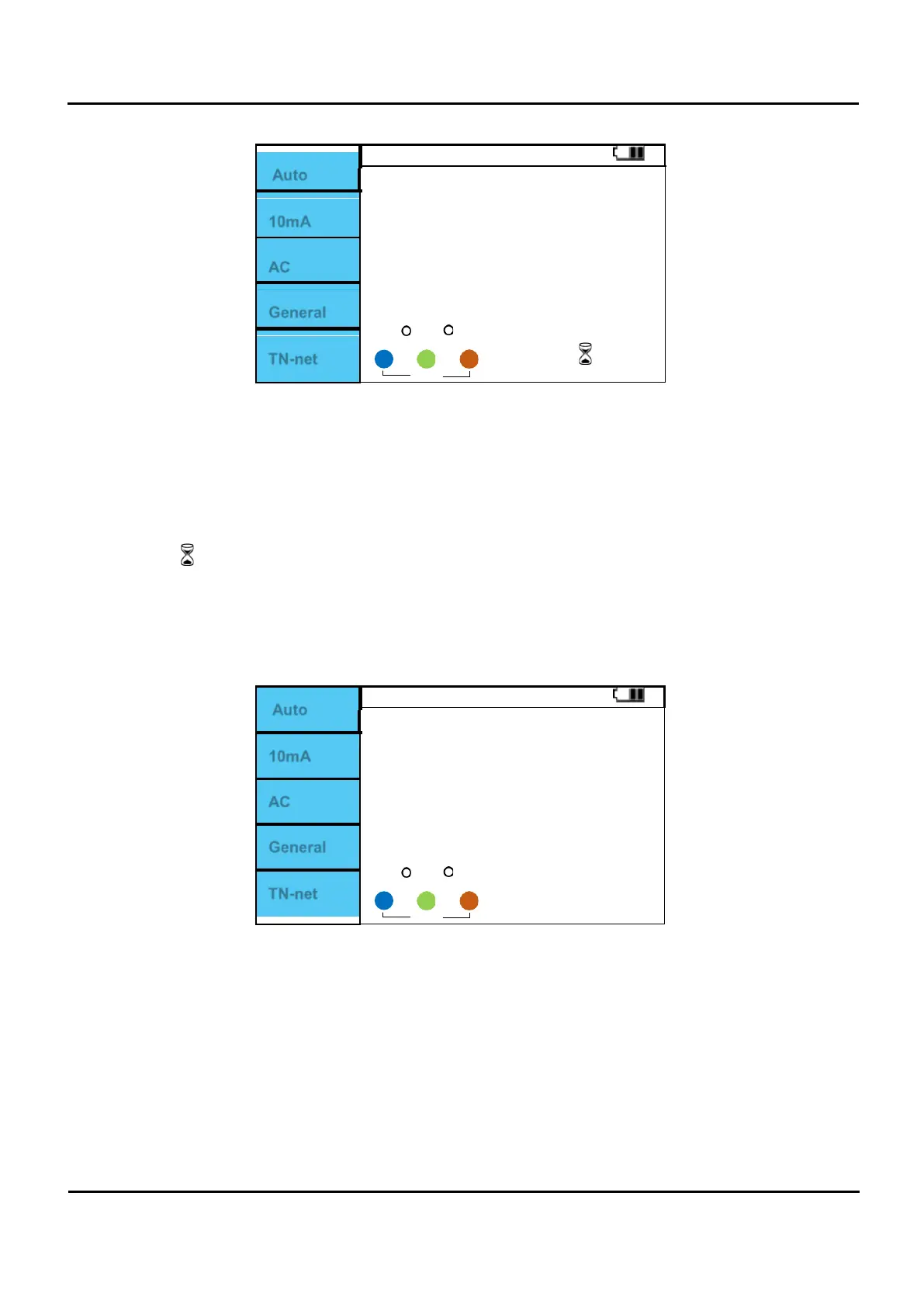

Figure 6.6.6 RCD / Auto screen.
I. Set the rotary switch to RCD.
II. Press F1 button to change to Auto.
III. Connect the test leads as shown in Figure 6.6.1.
IV. If there is no problem with the test lead connection, “OK” is displayed as shown in Figure 6.6.6
V. When “OK” is displayed, press the Test button to perform measurement.
VI. The symbol being measured is displayed.
VII. When the measurement is completed for each step, the measured value is displayed, and the next
step is started by pressing the Test button.
VIII. When all measurements are completed, Trip time is displayed on the screen for x1 / 2, x1, and x5 of
the RCD.
Auto
RCD
x1/2
x1/2
x1
x1
x5
x5
0
180
0
180
0
180
>300
>300
53
48
30
28
ms
ms
ms
ms
ms
ms
10mA
AC
General
0
OK
TN-net
1 230
229
Figure 6.6.7 RCD / Auto Measurement completed.
