MP500/4N-8-16 Installation
4.2.4.1 System with 1 supplementary power supply repeater

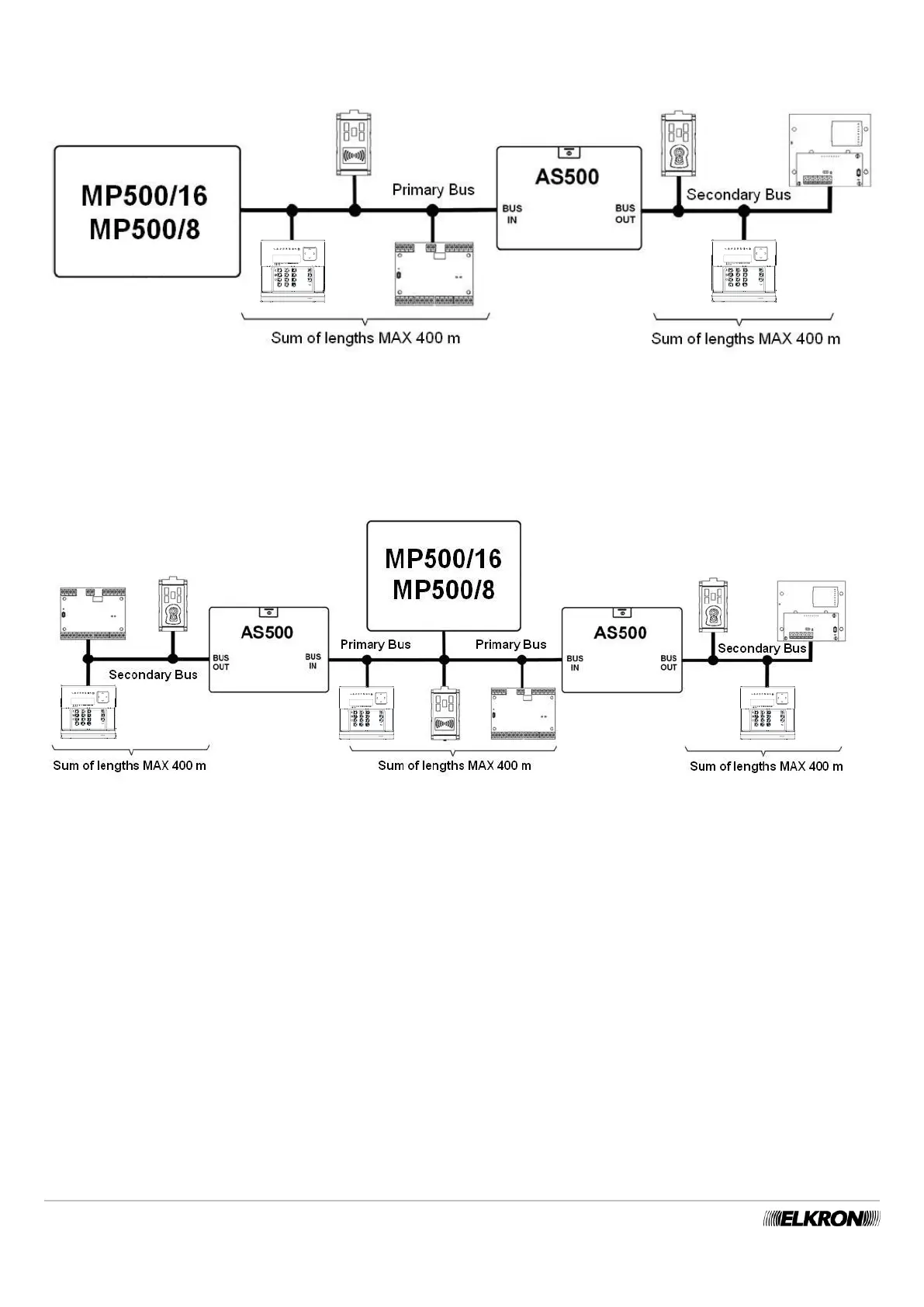

Figure 12 - Diagram with 1 supplementary power supply repeater
Sum of stretches of each BUS (primary BUS = secondary BUS) = 400 m
Distance BUS point/point = (primary BUS + secondary BUS) = 800 m
Sum of the stretches of all the BUSSES = 800 m
4.2.4.2 System with 2 supplementary power supply repeaters
Figure 13 - Diagram with 2 supplementary power supply repeater
Sum of stretches of each BUS (primary BUS = secondary BUS) = 400 m
Distance BUS point/point = (primary BUS + secondary BUS) = 1200 m
Sum of the stretches of all the BUSSES = 1200 m
