Elkron MP500/8 - Example of Diagram with N.C. Inputs MP500;4 N CONTROL PANEL

MP500/4N-8-16 Installation
87

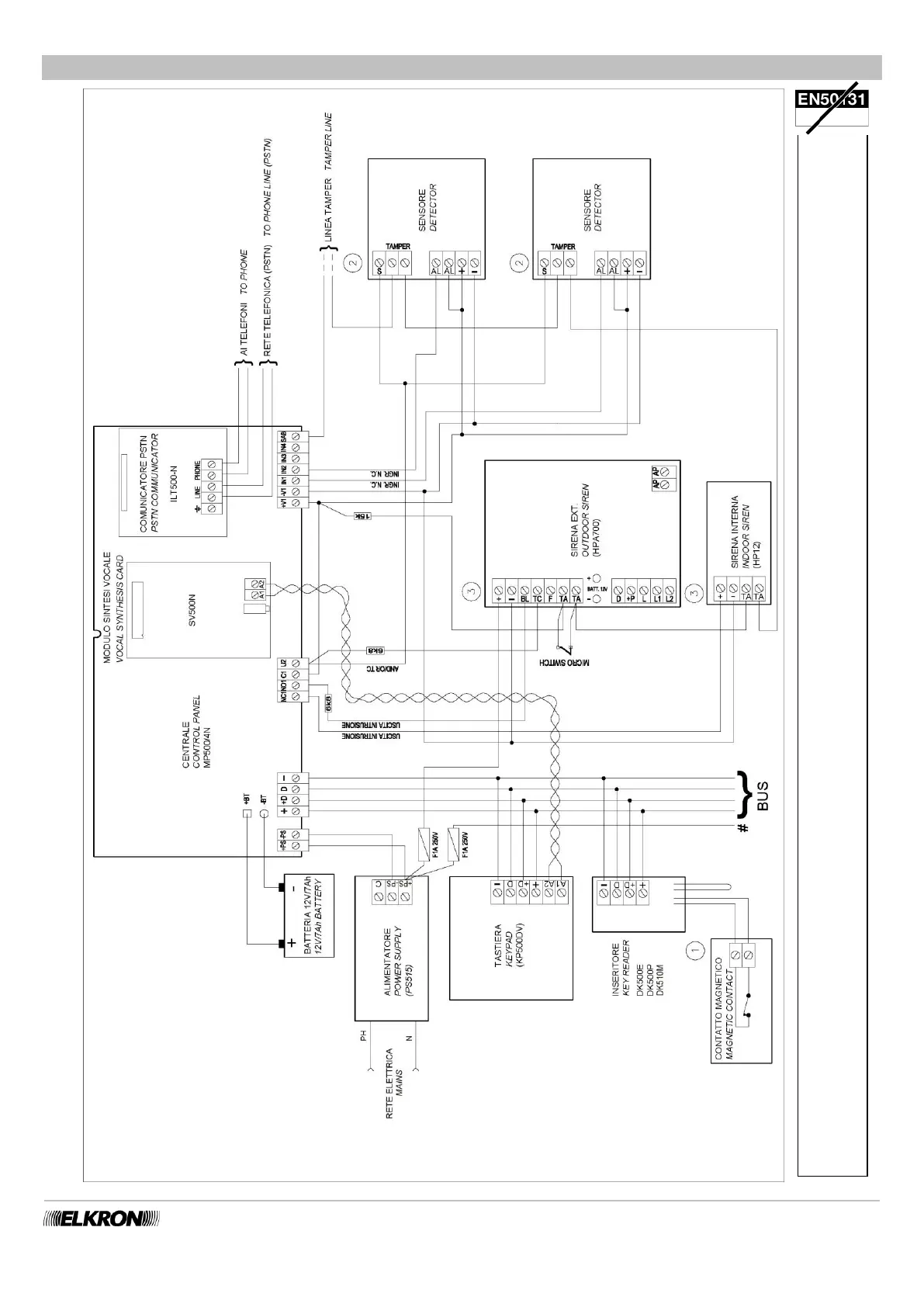

5.13 EXAMPLE OF DIAGRAM WITH N.C. INPUTS MP500/4N CONTROL PANEL
1) Example of connections on N.C. input
2) Example of connection with alarm on N.C. input and tamper on SAB i
nput
3) Example of connection with tamper on SAB input IMPORTANT!
Each sensor must be powered by the device that controls it.
