MP500/4N-8-16 Installation

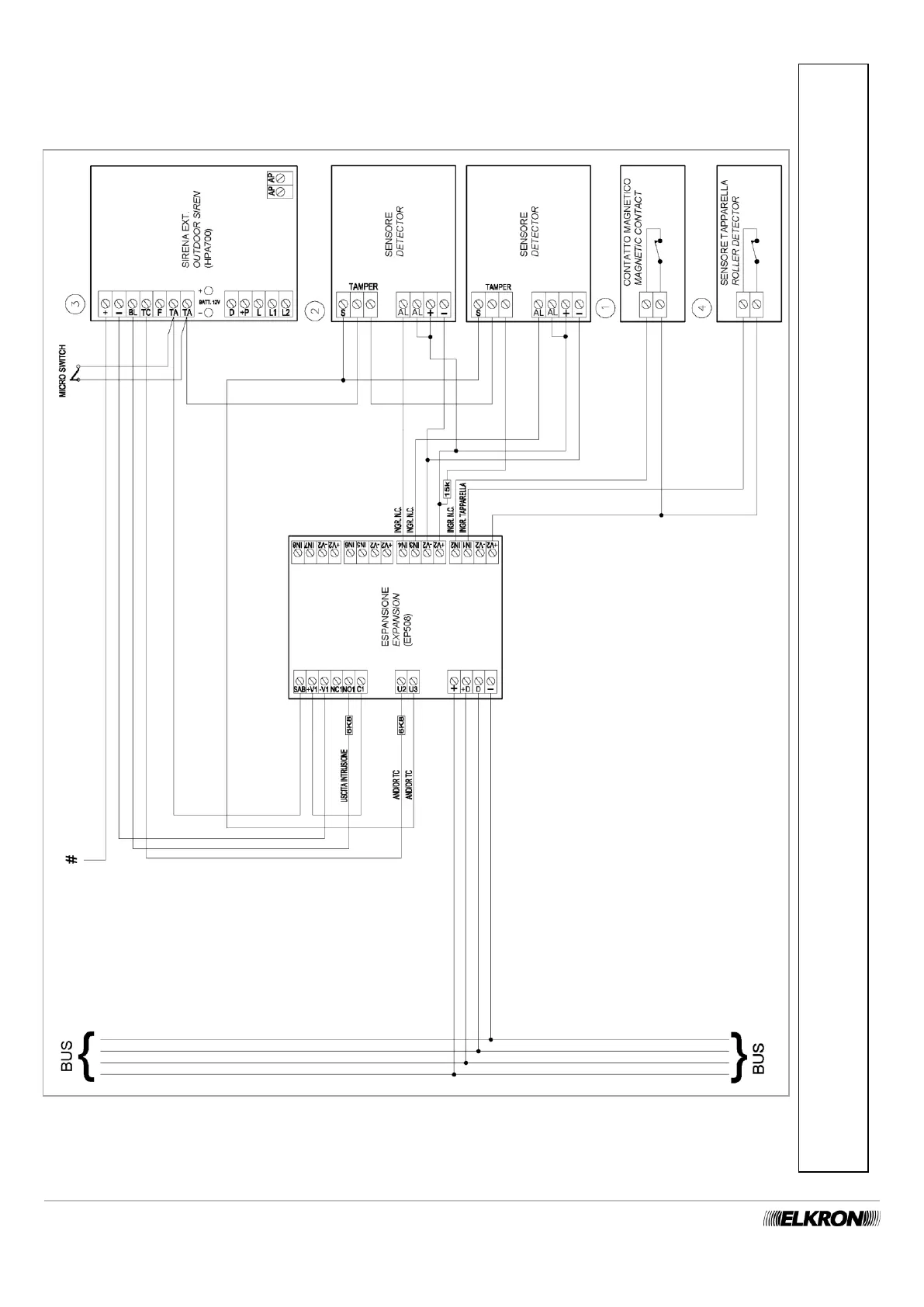

1) Example of connections on N.C. input
2) Example of connection with alarm on N.C. input and tamper on SAB input
3) Example o
f connection with tamper on SAB input
4) Example of connection with alarm on roller input
IMPORTANT!
Each sensor must be powered by the device that controls it.
