5.3.4 Battery compartment and fastening points for the optional features in the MP500/4N - MP500/8
control panels

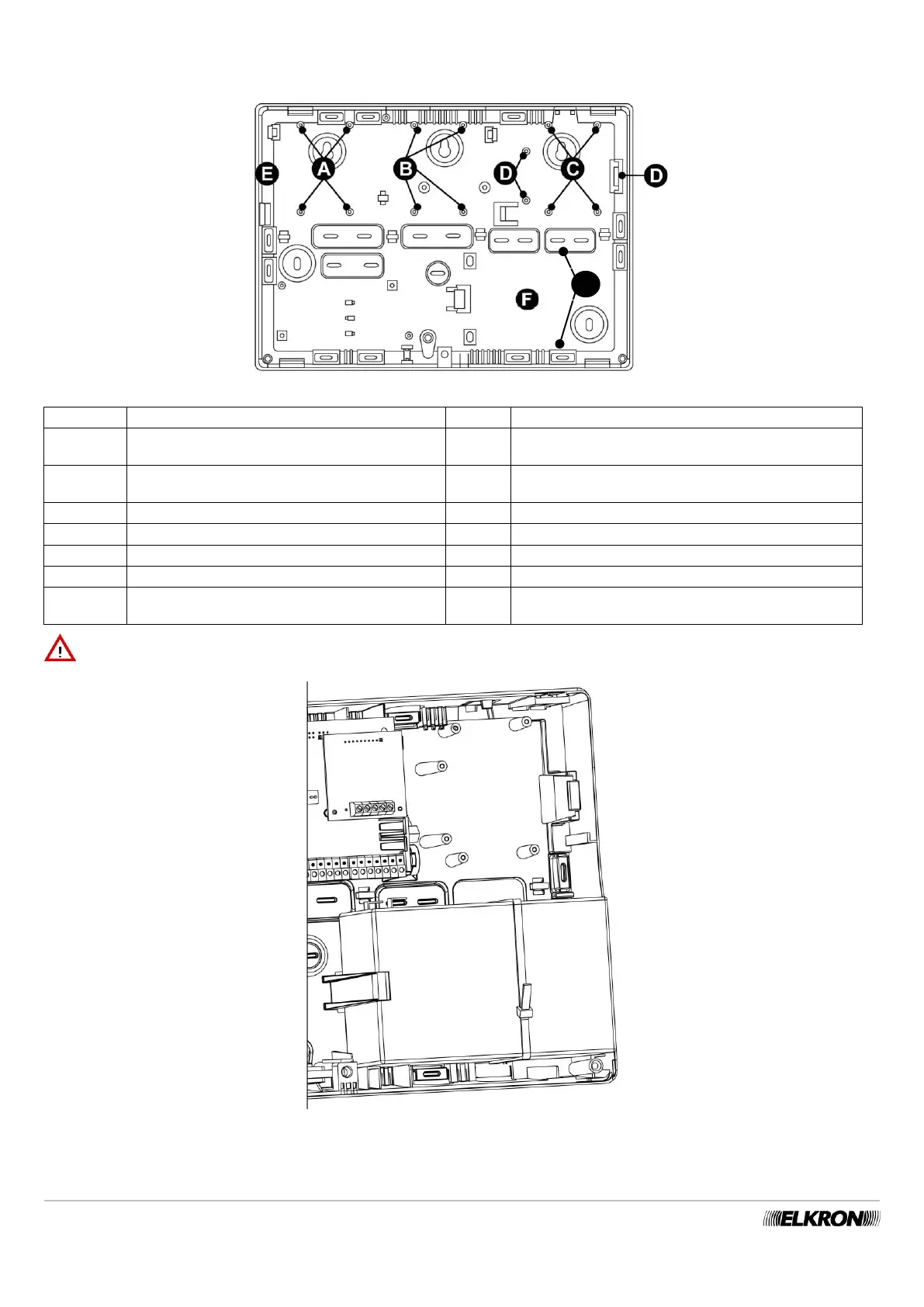

Figure 20 - Fastening points for optional features in the MP500/4N - MP500/8 control panels
MP500/4N
Expansion
MP500/8
Expansion
A
Fastening points for EP508 expansion
A
Fastening points for EP508 or IT500WEB expansion
interface
B
Fastening points for EP508 expansion
(without IMG500/N module)
C
Fastening points for EP508 expansion
C
Fastening points for EP508 expansion
D
Fastening points for EP508 expansion
D
Fastening points for EP508 expansion
E
Compartment for internal GSM antenna
F
Battery compartment
F
Battery compartment
G
Pre-scored holes for fastening the battery with the
band
G
Pre-scored holes for fastening the battery with the band
IMPORTANT! In order to guarantee conformity with Standard EN50131-3, the battery must be fastened using the band
supplied as illustrated in the figure below.
Figure 21 - Fastening points for optional features in the MP500/4N - MP500/8 control panels
