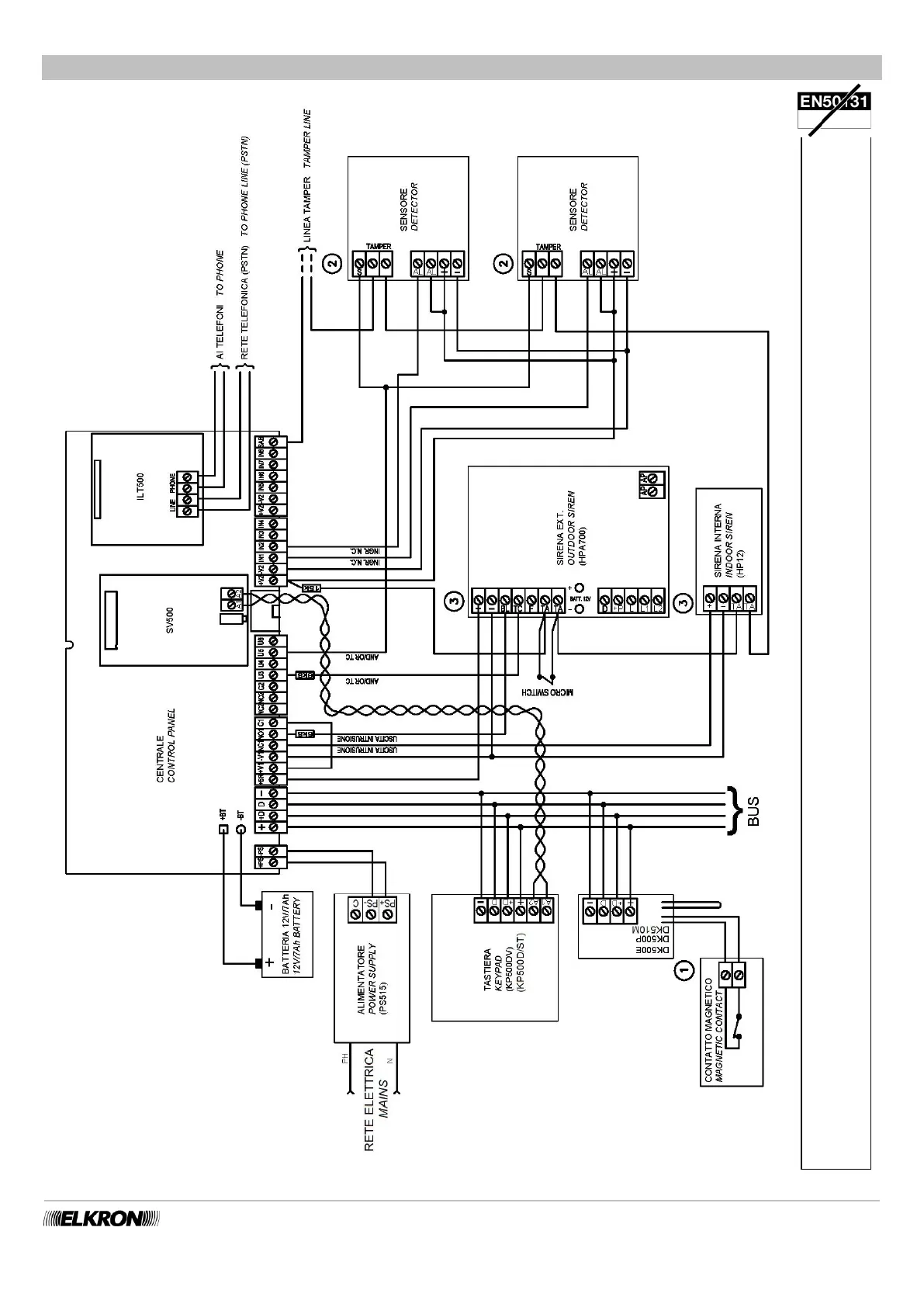

5.15 EXAMPLE OF DIAGRAM WITH NC INPUTS MP500/8-MP500/16
1) Example of connections on N.C. input
2) Example of connection with alarm on N.C. input and tamper on SAB input
3) Example of connection with tamper on SAB input IMPORTANT!
Each sensor must be powered by the device that
controls it.
