MP500/4N-8-16 Installation
5.11.2 Connecting the power supply and battery

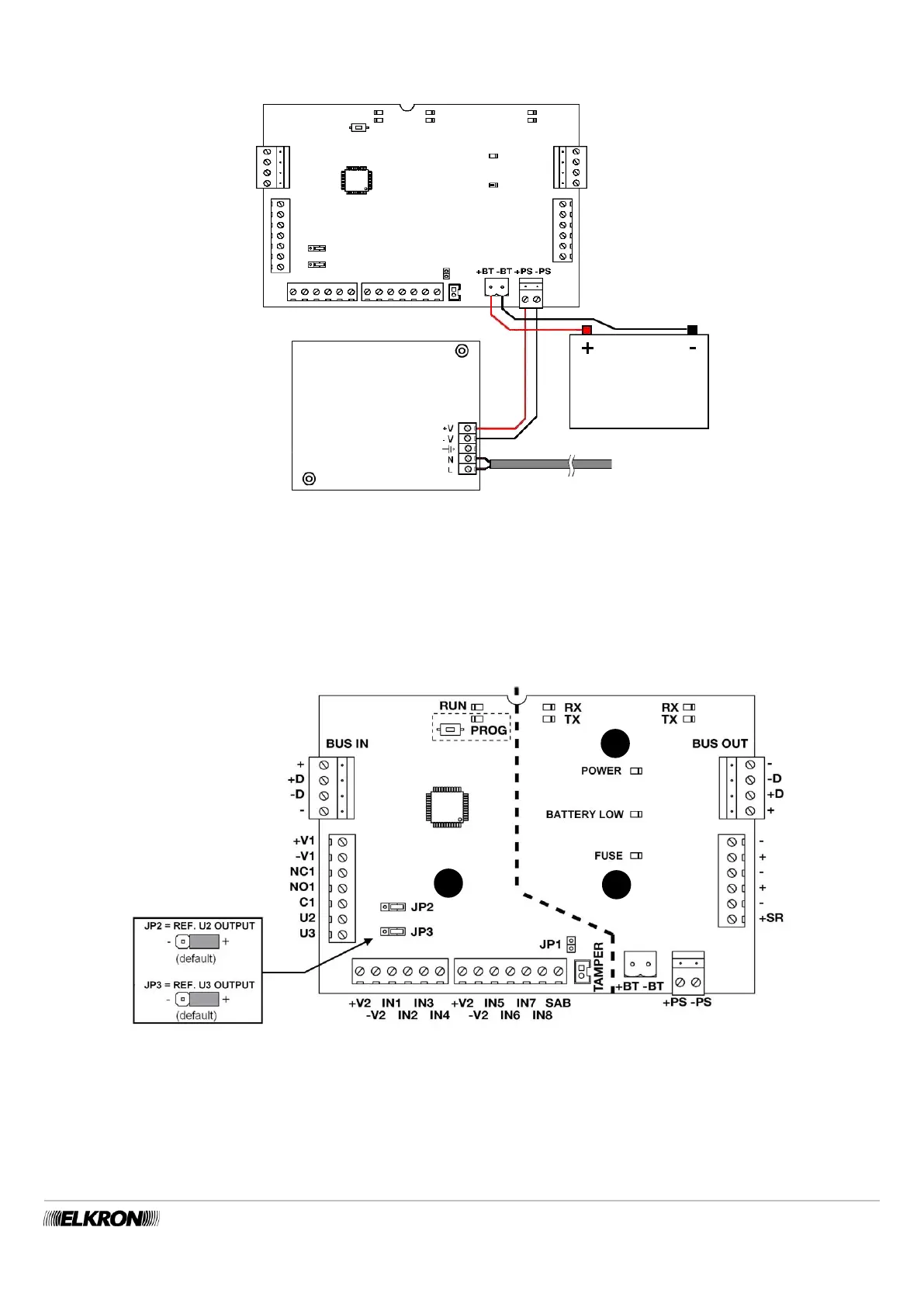

Figure 53 - Connecting the power supply and battery
5.11.3 The AS500/RPT board
The AS500/RPT electronic board has two distinct sections: BUS IN and BUS OUT, galvanically isolated to guarantee better immunity
to RF disturbances.
In the BUS IN section there is an EP508 integrated expansion (E).
In the BUS OUT section there is an integrated repeater function (R) and power supply (P).
Figure 54 - AS500/RPT Board
