MP500/4N-8-16 Installation

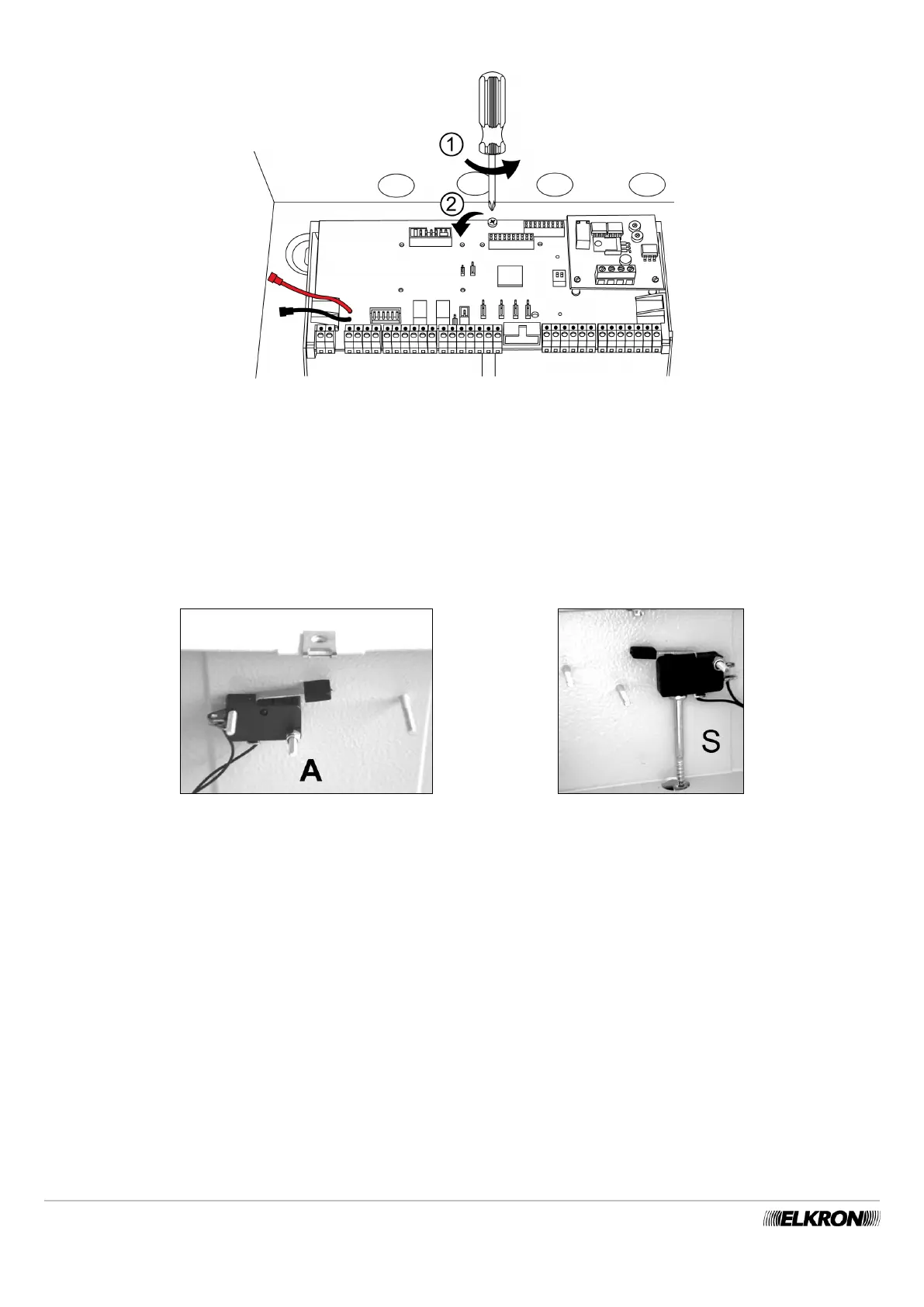

Figure 27 - Releasing the MP500/16 mother board
To guarantee protection against opening, tampering and removal of the MP500/16 control panel, it is necessary to install the tamper
(microswitch).
Positioning the tamper in position A or S, according to the type of application desired:
In position A only protection against opening is guaranteed, but not against removal (the system is not in conformity with the
EN50131 grade 3 standard).
In position S, for protection against opening and removal, use the screw and the expansion screw supplied as illustrated in the
figure. The protection against removal is mandatory to guarantee EN50131 grade 3 certification (already attained in the factory).
Figure 28 - Assembly of tamper for the MP500/16 control panel
In both cases, it is necessary to connect the tamper connection to the mother board.
(See
Figure 33 - Connections and main parts of the MP500/8 – MP500/16 control panels – position P)
