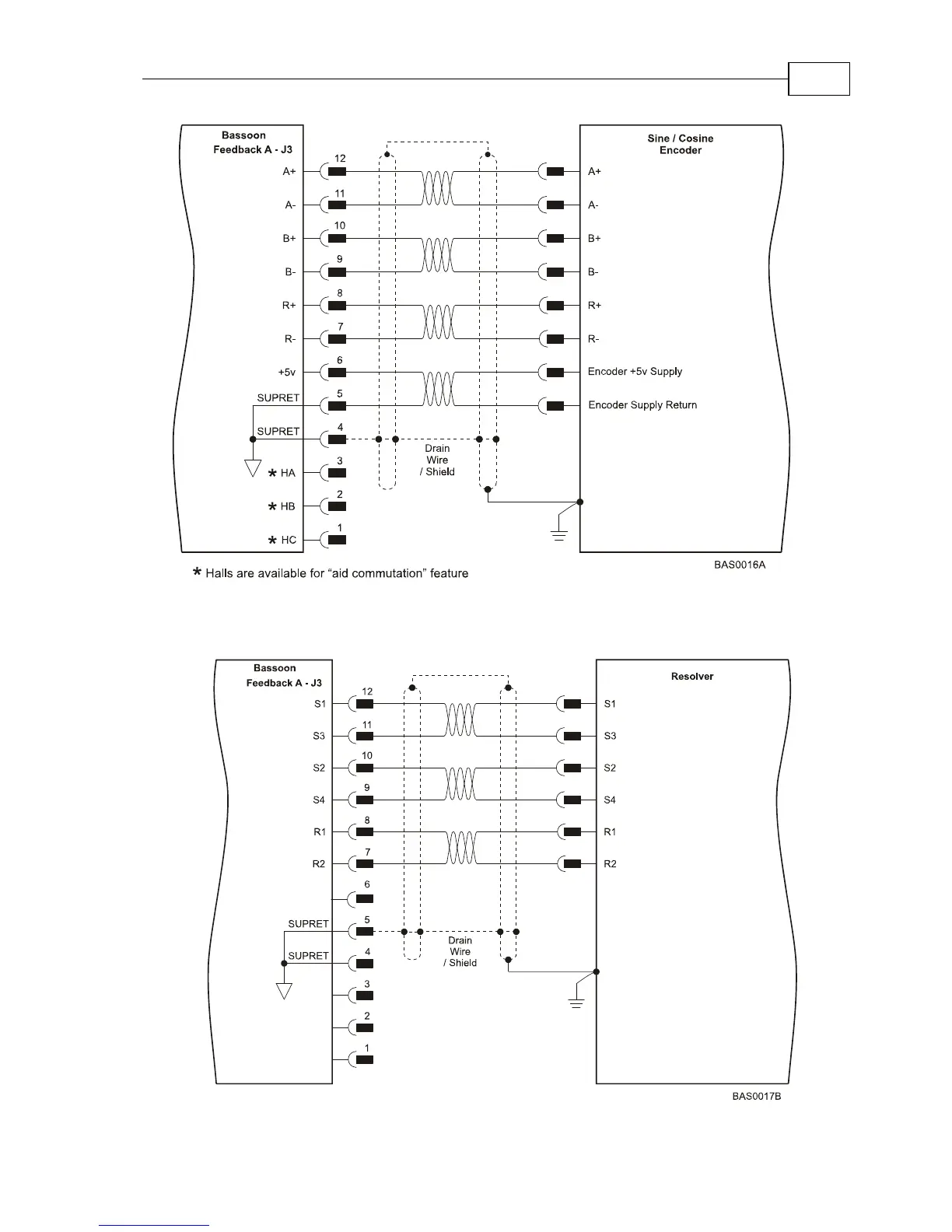

Figure 3-11: Main Feedback – Interpolated Analog Encoder Connection Diagram
Figure 3-12: Main Feedback – Resolver Connection Diagram
Bassoon Installation Guide Installation
MAN-BASIG (Ver 1.4)
3-17
